This family offers the advantages of all PIC18 microcontrollers; that is, high computing performance at an economical price with the addition of high-endurance Advanced Flash program memory. Along with these features, the PIC18F2525/2620/4525/4620 family offers design improvements that make these microcontrollers a logical choice for many high-performance, power-sensitive applications.
Technical Specifications

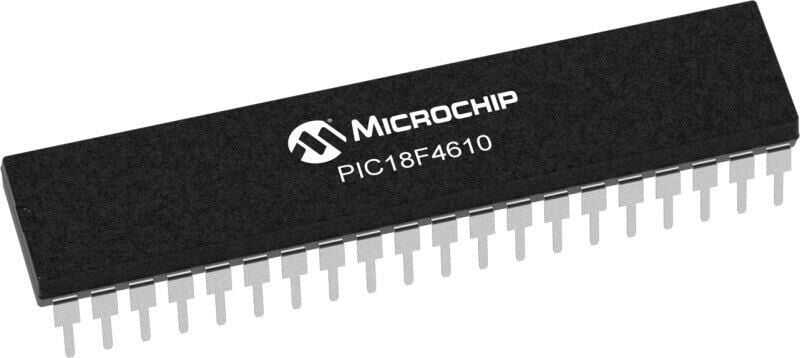

| Product Code |
PIC18F4610 |
| Program Memory Type |
Flash |
| Program Memory Size |
64KB (32K x 16) |
| Bus Width |
8-Bit |
| Max Clock Frequency |
40MHz |
| Data RAM Size |
3.8K x 8 |
| I/O Count |
36 |
| EEPROM Size |
None |
| Operating Voltage Range (V) |
4.2 - 5.5V |
| Number of Pins |
40 |
