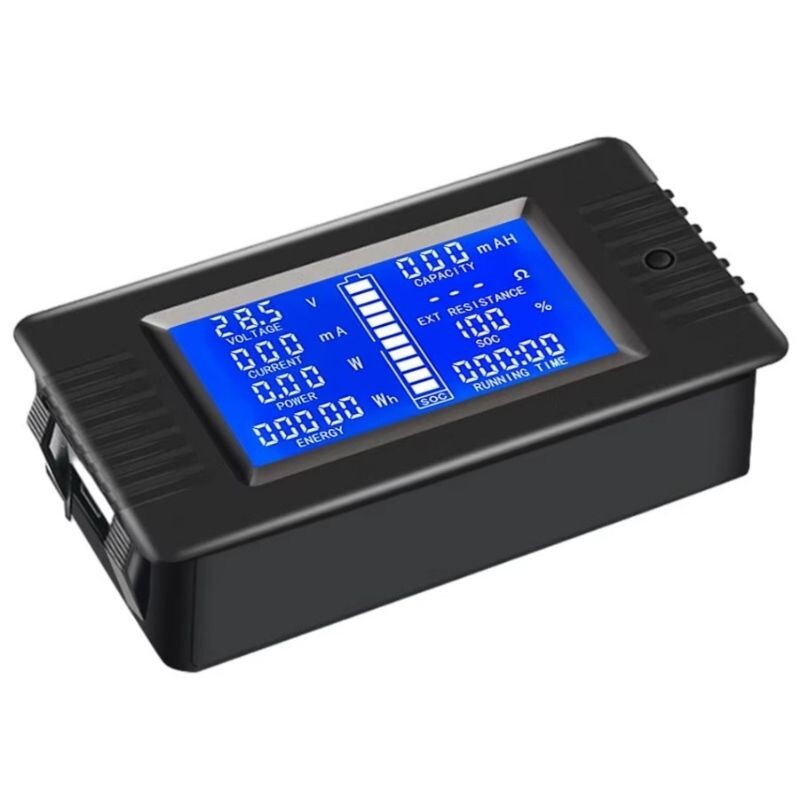

PZEM-015 8-120V 100A Voltmeter Ammeter - Battery Capacity Manager
PZEM-015 0-120V 100A Voltmeter Ammeter - Battery Capacity Manager. It is a multifunctional voltmeter-ammeter that you can use in various electrical and industrial applications.
It can measure battery voltage, discharge current, discharge voltage, discharge impedance, SOC, operating time, capacity and power.
Features
- Voltage Measurement Range: 0 ~ 120VDC
- Current Measurement Range: 0 ~ 100A
- Power Measurement Range: 0 ~ 12000 W
- Impedance Measurement Range: 0 ~ 1000 ohm
- Measurement Accuracy: 1%
- Dimensions: 89.6x49.6x24.25mm

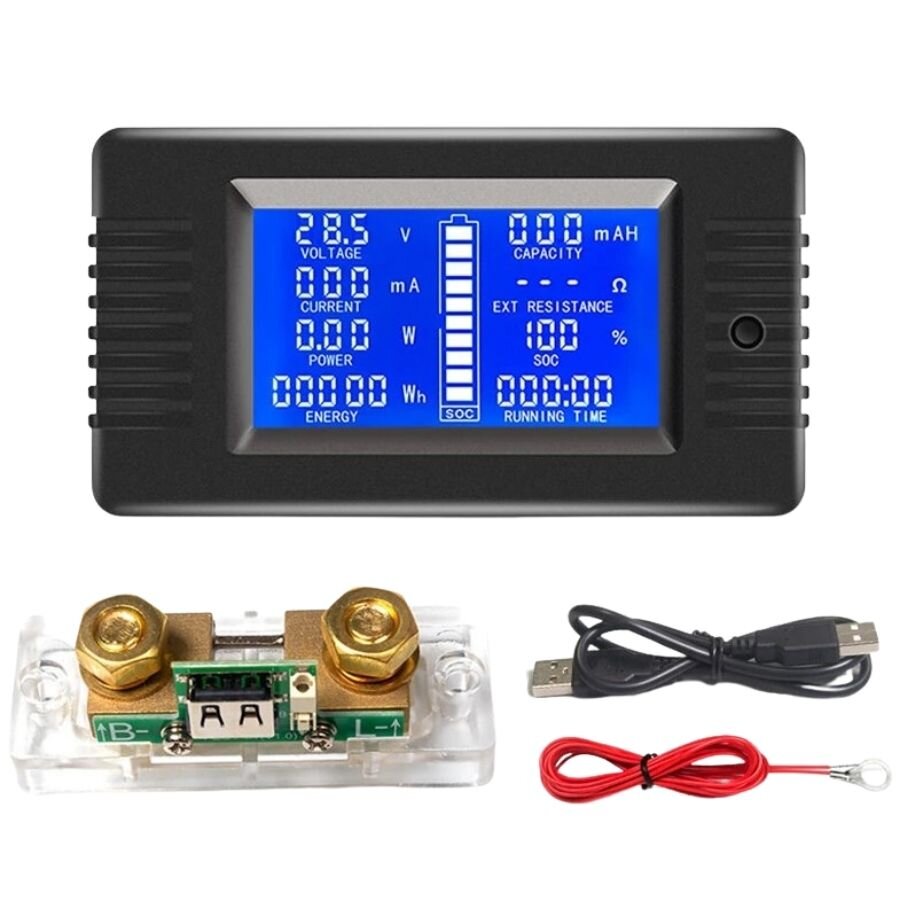

Package Content
- PZEM-015
- Splitter
- Data cable
- User Manual
Connection Diagram
Dimension
.png)
