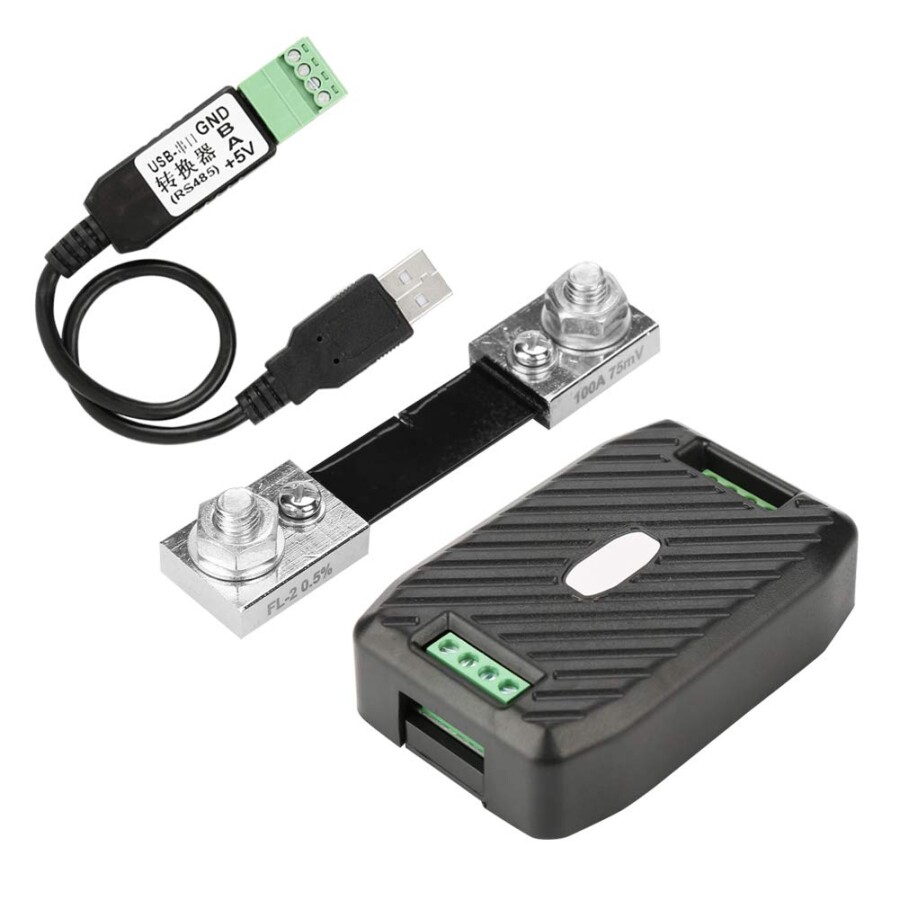

PZEM-017 0-300V 100A DC Power Communication Module + 100A Shunt + USB-RS485

PZEM-017 0-300V 100A DC Power Communication Module + 100A Shunt + USB-RS485

PZEM-017 0-300V 100A DC Power Communication Module + 100A Shunt + USB-RS485 is a digital multimeter designed to measure voltage, current, power and energy consumption in electrical circuits. This versatile component is widely used in monitoring systems for renewable energy sources, industrial machinery, home energy management and other applications where precise electrical measurements are vital.

For detailed product information and sample projects here click.

Features

• Voltage Measurement Range: 0 - 300V
• Current Measurement Range: 0 - 100A
• Power Measurement Range: 0 - 30000W
• Energy Measurement Range: 0 - 99999kWh
• Measurement Accuracy: ±%1.0
• Working Temperature: -10°C to 60°C
• Frequency Detection: 45Hz - 65Hz
