RS2204 2300KV Brushless Motor CW - FPV Racing Compatible

Ratings & Reviews (0)
Comment
Show More: Drone Motors
Brand: Motorobit
Product Code: DRN.DRM.01.000006
Stokta 10+ ürün
270.00 TL + VAT
VAT Included: 324.00 TL

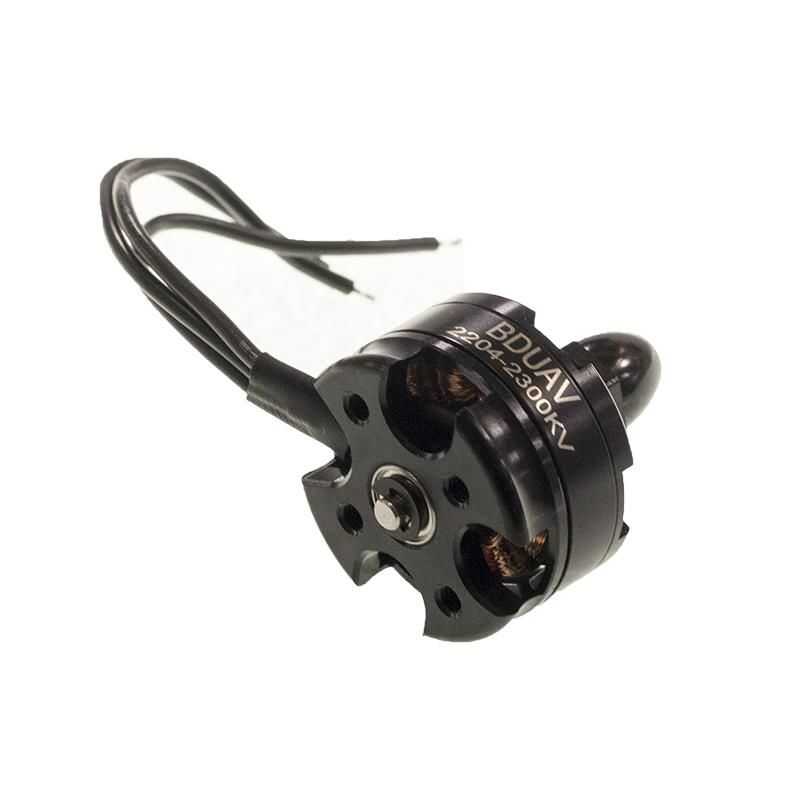

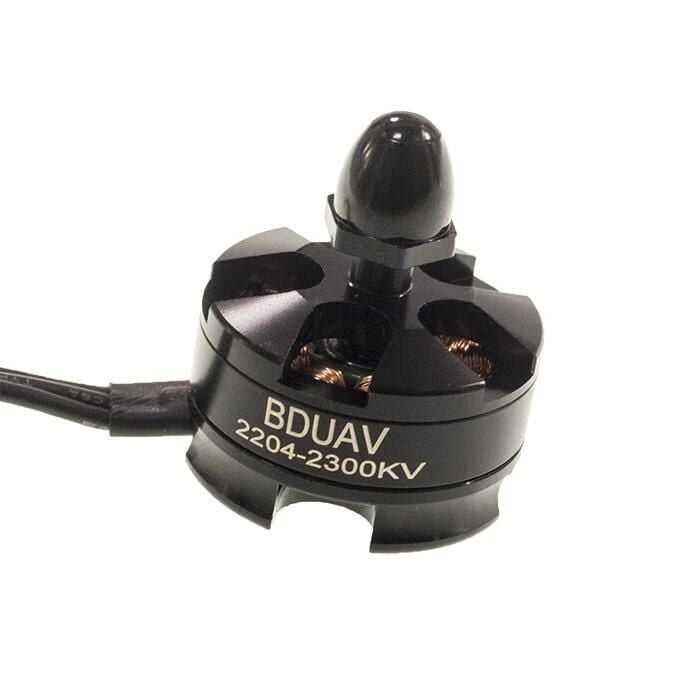

RS2204 2300KV Brushless Motor CW - FPV Racing Compatible

RS2204 2300KV is Brushless DC Motor for QAV250 QAV300 racing multicopters. Suitable for FPV racing applications.
The coolest feature of this engine is the self-cooling technique. This RS2205 2300KV CW Brushless Motor features unique cooling fins that draw air from the motor base past the motor coils. The faster it spins, the more air moves. This can reduce the temperature of the motor by up to 30%, which can increase the lifespan of the BLDC Motor.

Note : This is CW rotating BLDC Motor, for CCW rotating BLDC motor click.


Technical Specifications

  • Motor KV: 2300 RPM/V
  • Li-PO Batteries: 2-3S
  • Shaft Diameter: 5 mm
  • Propellers: 5″ - 6"
  • Thrust: 440g
  • Motor Diameter: 28mm
  • Weight: 26g
Weight(Kg)
0.05
