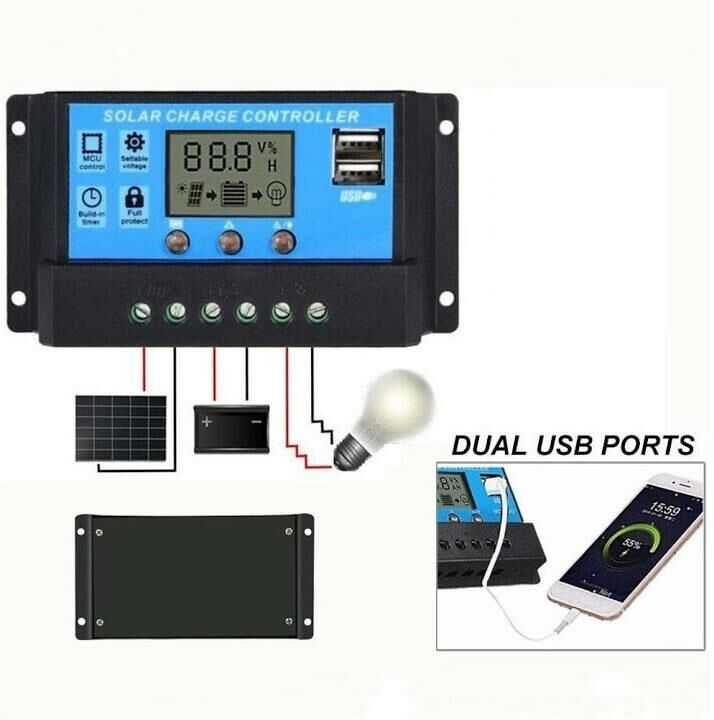

You can charge the battery with the energy coming from the solar panel, and you can charge your phone, etc. by getting 5v energy from the USB outputs. Solar battery charge control unit with which you can also charge devices. You can connect a lamp to the output of this product, which allows you to charge 12V or 24V batteries. Thus, your battery, which you charge during the day, can turn on the lamp you connected at night. The dual USB port on the product can output a maximum of 2.5A.
If your battery is 12v, solar panels up to a maximum of 23V should be used. If your battery is 24V, you can charge it with panels up to 24 - 46V.
Product When using, please do not exceed the maximum usage capacities below. Do not connect solar panels above these values.
Product Maximum Capacity
12V 130W
24V 260W
Features:
Built-in industrial microcontroller.
Easy interface with display
PWM charge management.
Short circuit protection, open circuit protection, reverse protection, overload protection, low heat generation.
