Stepper Motor Driver - Direction and Speed Controlled

Motorobit
Product code : MSK.STP.01.000012
516,00 TL + VAT
619,20 TL
516,00 TL + VAT
619,20 TL
Add to Favorite
 10+
RecommendCommentAlarm Price

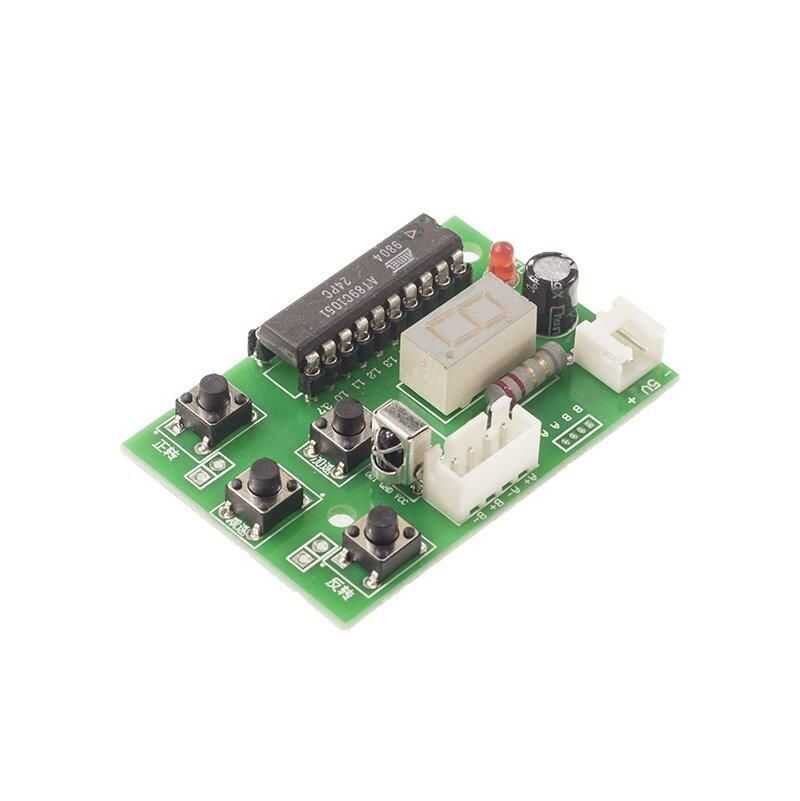

Stepper Motor Driver - Direction and Speed ​​Controlled Remote

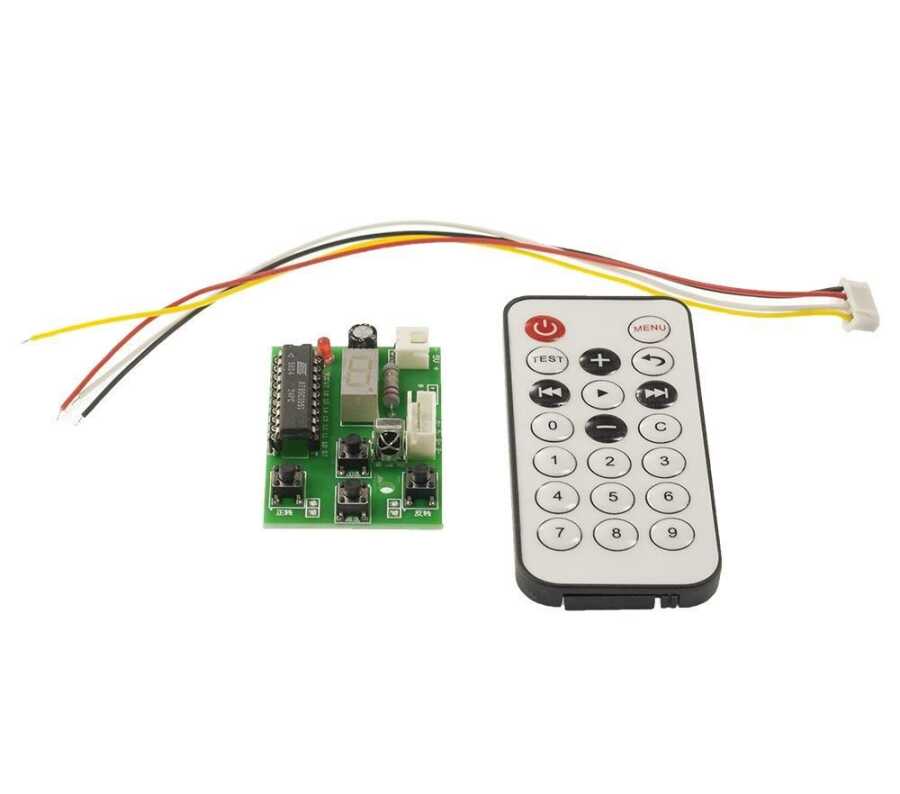

With this stepper driver, you can control your stepper motor without using Arduino or another microcontroller. You can control both direction and speed with the buttons on it or with the IR remote control.


Technical Specifications:

  • Introduction Voltage: DC4 ~ 6V / 300 ~ 500mA (so we can input it with any battery or usb power supply)
  • Motor type to be guided: Phase 4-conductor cable (3-24V of the stepper motor can drive the rotation direction, but at different torques)
  • Speed ​​Display: 9 levels
  • Speed ​​and direction can adjust by buttons or remote control
  • Plate size: 52*36mm
  • Press the 'next' button once and the engine starts. Press the 'Next' button again and the engine will stop. And then it continues.
  • This also applies when we press 'backwards'.
