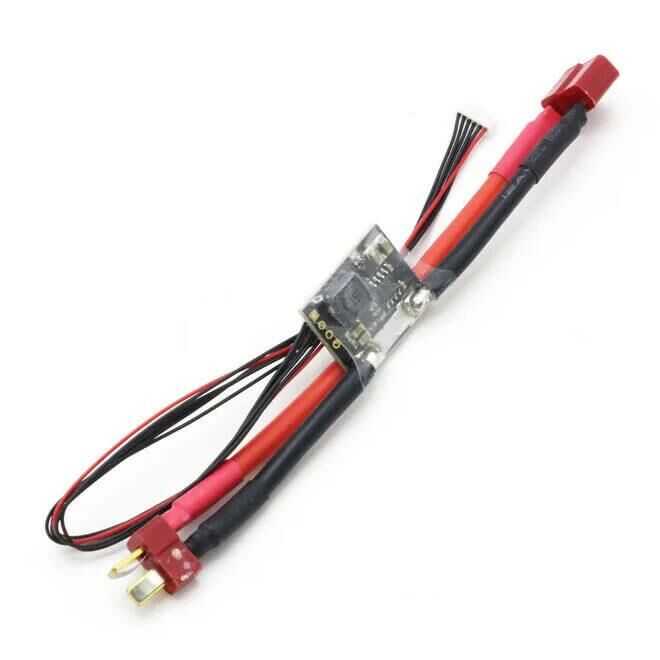

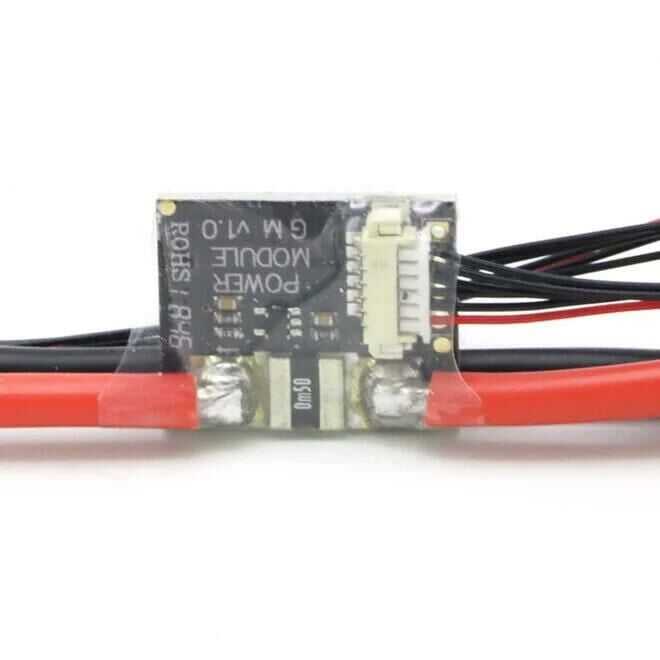

T-Plug Power Power Module Pixhawk - APM Compatible
T-Plug Power Power Module is used to provide power to Pixhawk and APM flight control cards via Li-po battery. It is a designed module.
You can connect by connecting the 6-pin DF-13 cable to the “PM” input on your controller. There is a T-plug center at the cable ends. Power is intended to power the APM, RC receiver and APM radio (GPS, 3DR). It is not designed to power servos. For this, your aircraft must have ESC/BEC.
Specifications:
- Maximum Input Voltage: 30V
- Maximum Current Detection: 90A
- Switched regulator output: 5.3V – 3A (max)
- Voltage and current measurement for 5V ADC (analog-digital converter)
- With controller via 6-pin DF-13 cable direct connection (APM, Pixhawk)
- Dimension: 25mm x 21mm x 9mm
