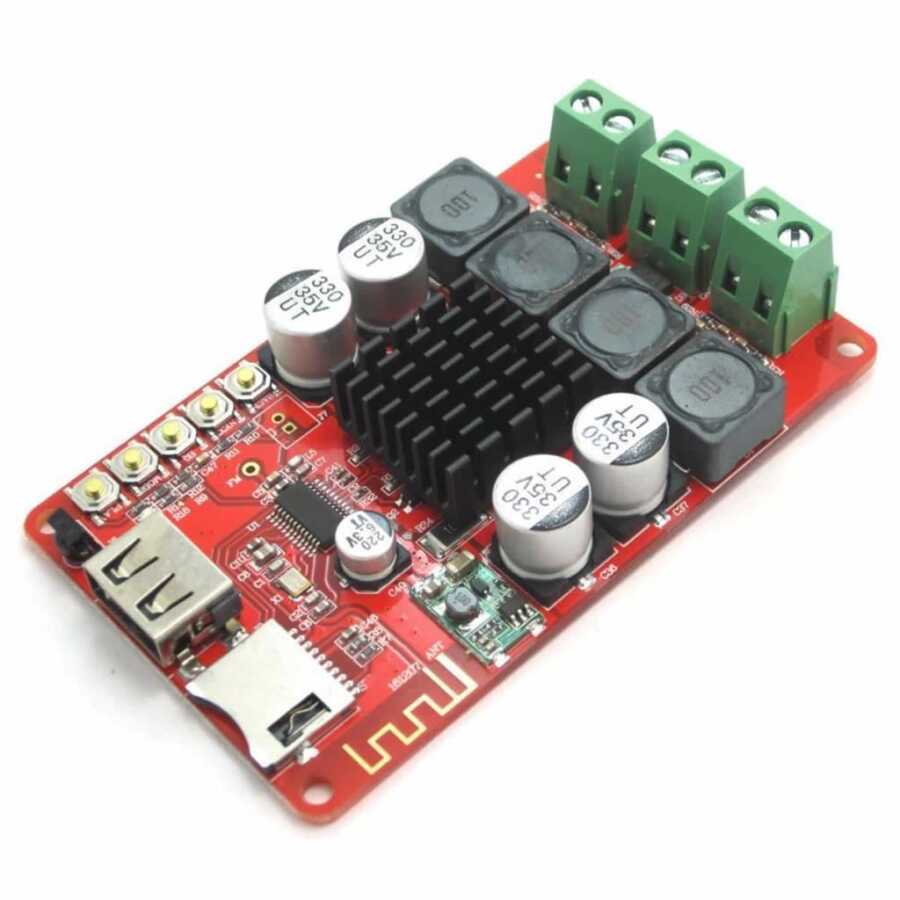

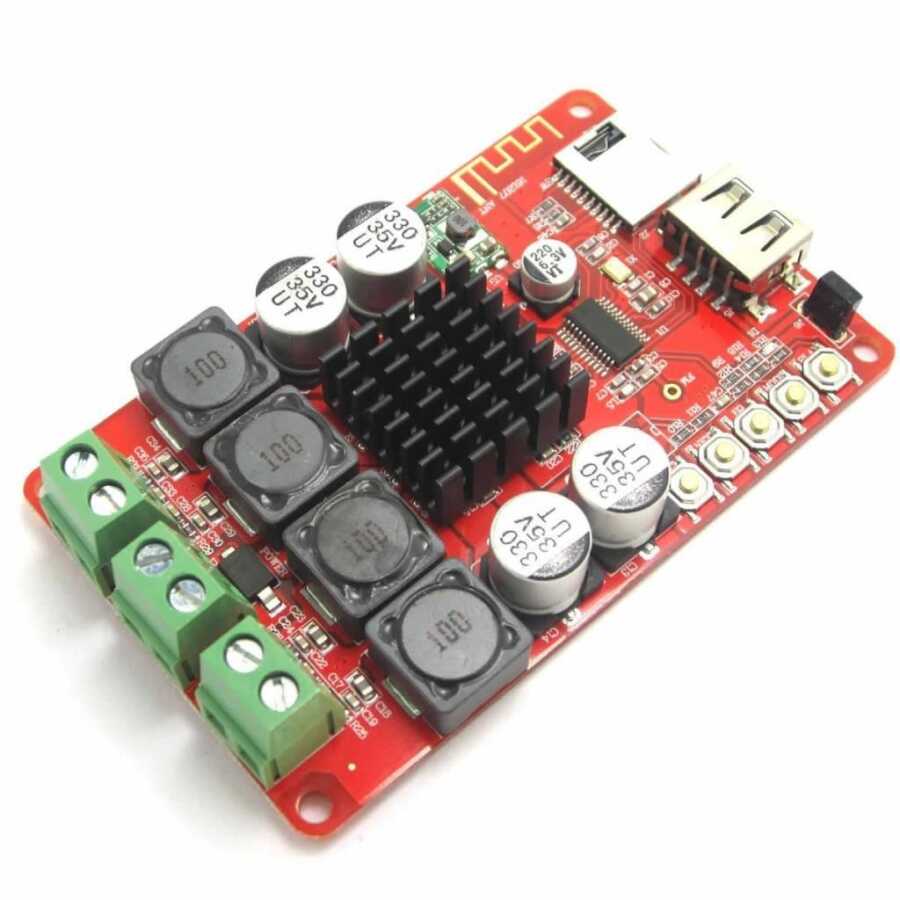

TPA3116 2x50W Controlled Bluetooth Amplifier Circuit
Stereo Bluetooth 4.0 enabled amplifier module with TPA3116 integrated on it. It can be controlled with the remote control that comes with the product. Thanks to the micro SD card slot and USB chassis on the circuit, it can be used to play music with a memory card and flash memory.
The product can be used via remote control, from the phone via Bluetooth connection, It can be controlled from the buttons. It has a supply voltage of DC 8-26V.
Technical Specifications:
- TPA3116 power amplifier chip, 2 * 50W stereo power output.
- Bluetooth 4.0, a perfect Bluetooth audio receiver board for use.
- USB interface / TF card slot, supported playback formats: MP3, WMA, WAV, FLAC.
- LI>
- Talk into microphone with Bluetooth function.
- DC 8-26V input voltage for power supply.
- Wireless reception distance can be up to 3 meters (displayed signals).
- >
- Equipped with heat dissipating module on the board.
- Convenient and easy operation, with 5 buttons for setting.

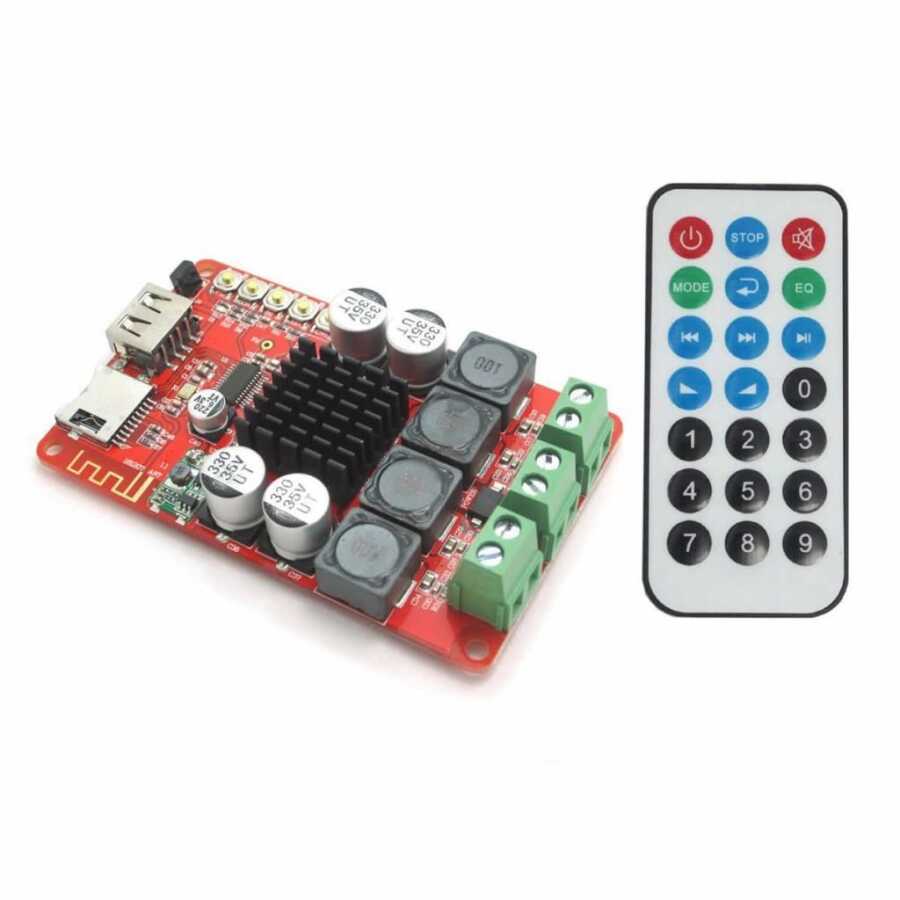

- Remote control (infrared path) for receiving and control.
>- Audio Input: Bluetooth V4.0, USB decoding, TF card decoding
- Decoding Supported Formats: MP3, WMA, WAV, FLAC
- Power Supply: DC 8-26V
- Applicable Impedance: 4-8 ohm
- Control Method: Buttons; Remote control
- Receiving Distance: 3 meters
- Remote Control Power: 1 * 3V CR2025 Button Battery (Included)
- Remote Control Size: 85 * 39 * 6mm
- Remote Control Weight: 14g / 0.5oz
- PCB Board Size: 83 * 50mm
- PCB Board Weight: 51g / 1.83oz
