TPS605 60V 5A Adjustable DC Power Supply

Ratings & Reviews (0)
Comment
Brand: Profuse
Product Code: GUC.AGC.01.000064
Stokta son 8 ürün
4,015.00 TL + VAT
VAT Included: 4,818.00 TL

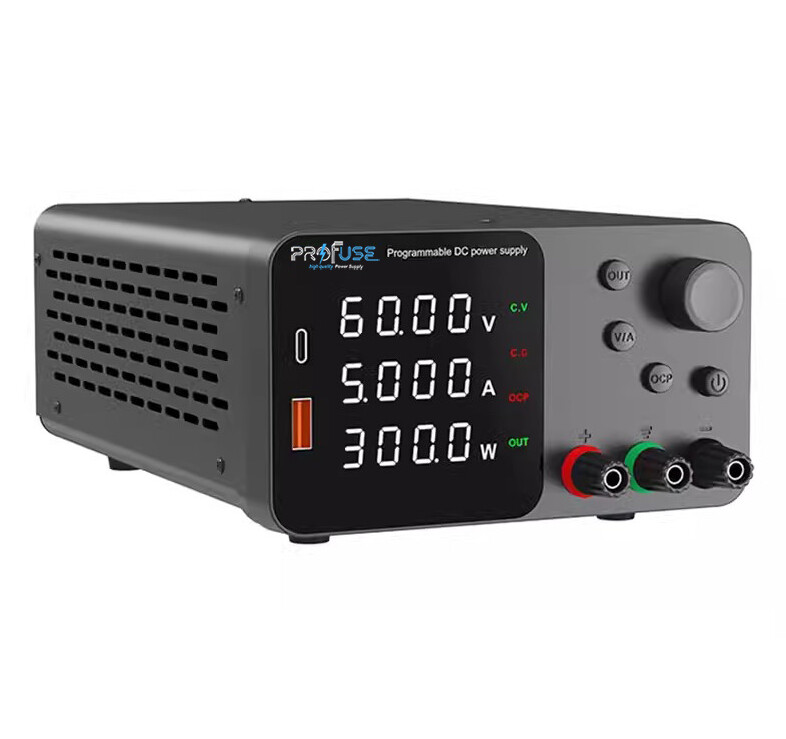

TPS605 60V 5A Adjustable DC Power Supply

TPS605 is a high precision DC power supply that can provide output up to 5A between 0-60V. There is a setting encoder on the product that allows you to adjust voltage and current. When these encoders that allow adjustment are pressed, the setting sensitivity can be changed. There is a V/A button on the power supply. This button is used to switch between current and voltage. The setting encoder adjusts the value that we select.

The product does not provide output directly when it is on. The output button must be pressed for it to provide output. The product provides output when the green light is on. In addition, there is an OCP short circuit overcurrent protection button on the product. OCP is a function that protects against overcurrent-related situations in short circuit situations.

TPS605 is lighter than old-style power supplies thanks to its modern design and circuit structure. It also has a USB and Type-C output that allows charging phones and similar 5V devices.

Features:

  • Model: TPS605

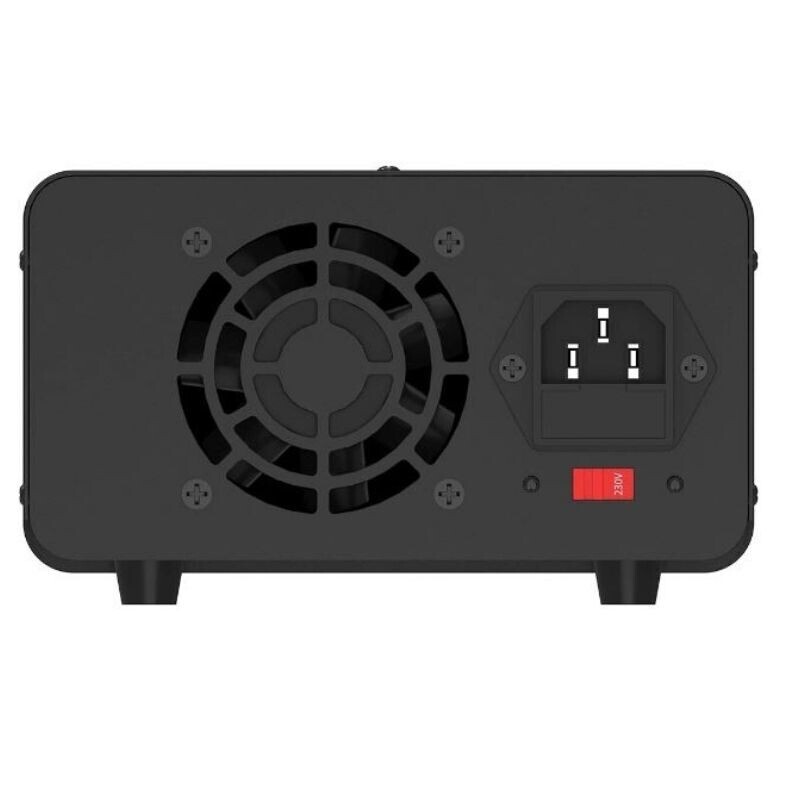

  • Input: 220V AC (socket)
  • Output Voltage: 0-60.00V
  • Current: 0-5.00A
  • Resolution: 0.01V / 0.001A
  • Accuracy: 0.5%±20
  • OVP: High Voltage Protection
  • OCP: High Current Protection
  • OPP: High Power Protection
  • OTP: High Temperature Protection
  • SCP: Short Circuit Protection
  • Dimensions: 210x145x80mm
  • Weight: 1.2kg

Product Contents:

  • TPS605 Power Supply
  • AC Power Cable
  • English User Manual
  • 2 Crocodile Probe Cables

Weight(Kg)
2
