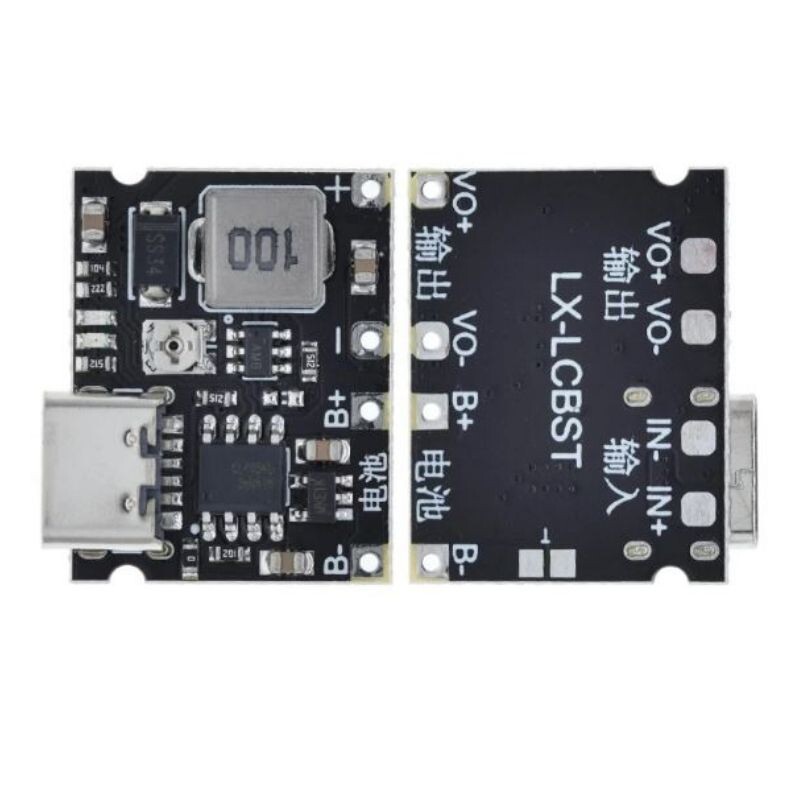

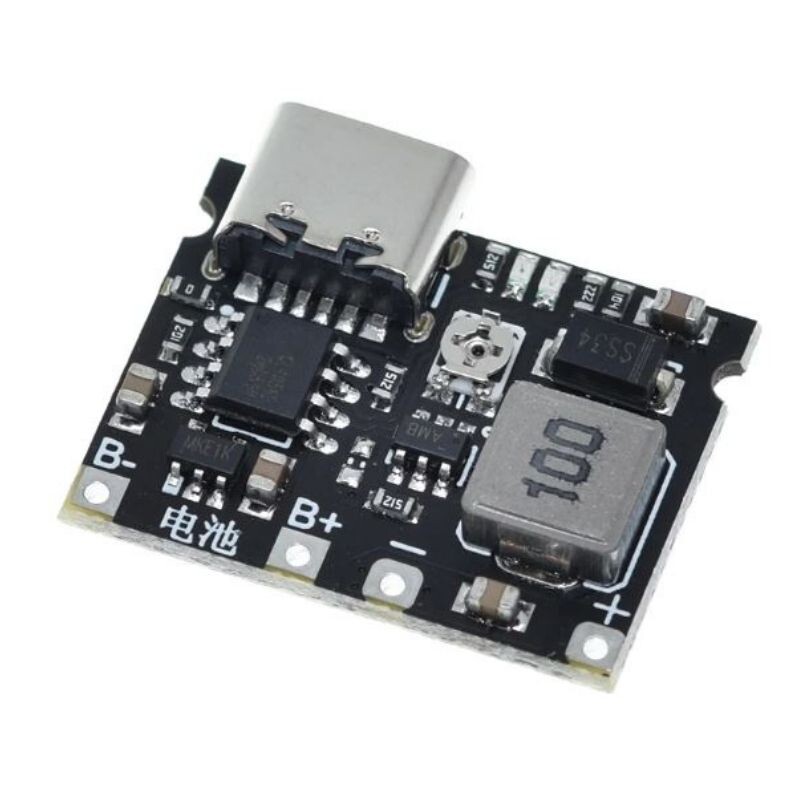

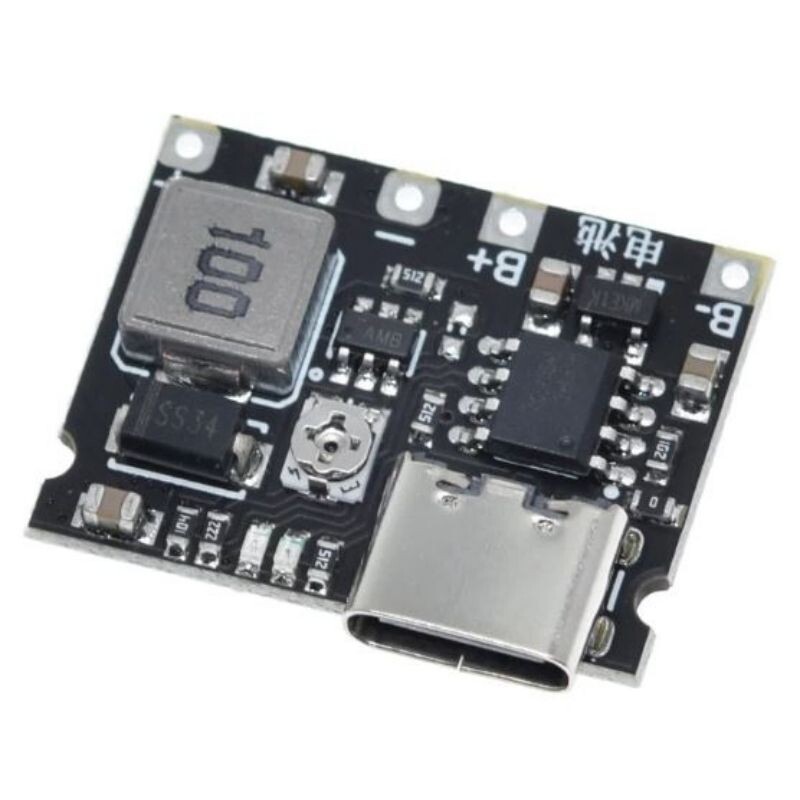

Type-C Li-ion 18650 Battery Charging Circuit - DC-DC Voltage Booster,  This card, which you can power with Type-C, can be used as a charging circuit for 18650 batteries or as a voltage booster. You can connect batteries from B+, B- sections or get direct output from " + , - " sections.

The output voltage can be adjusted with the trimpot on it. It provides a maximum of 28V output. It has 5W power. Instantaneous high current/high voltage/over temperature protection is available.

Important Note: If the battery you will connect has protection, you must short-circuit the T section on the back of the card after connecting the battery.

If your battery does not have protection, do not short-circuit the T part. This will remove the discharge protection.

Features

• Supply Type: Type-C
• Output Power: 5W
• Output Voltage: 4.2 - 28VDC
• Charging Current: Max. 1A
• Overcharge, overcurrent, high temperature protection
• Operating Temperature Range: -40 ~ 80°C
• Size: 23.5x18x4.5mm
