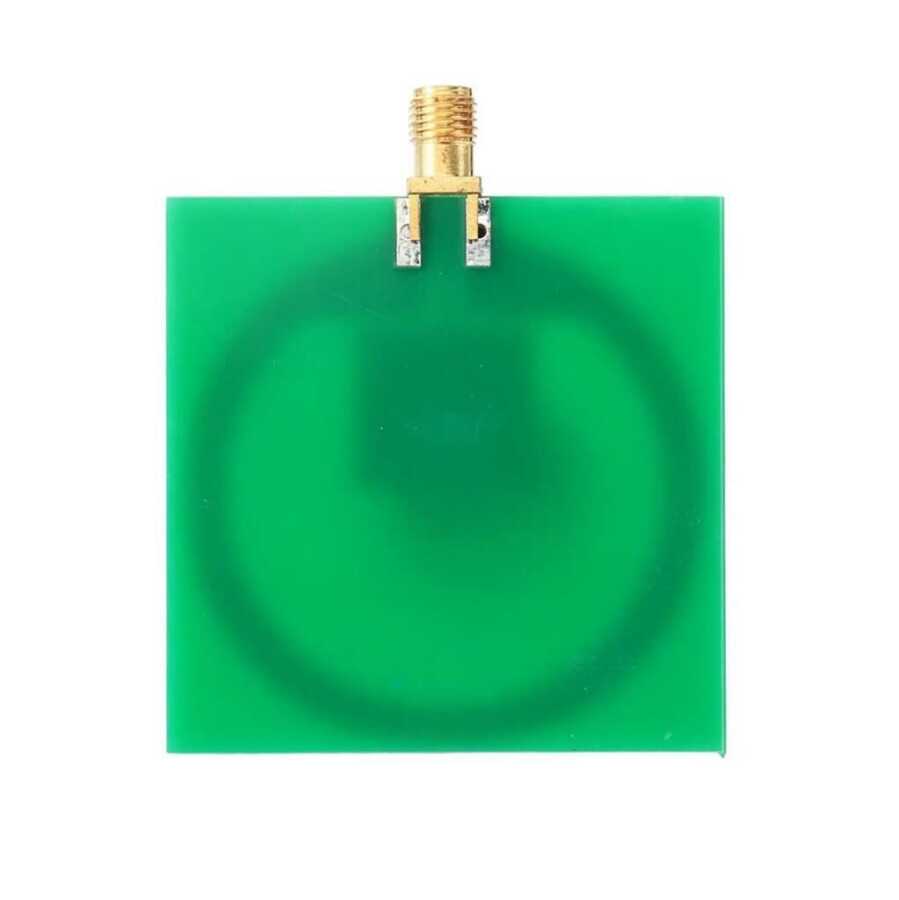

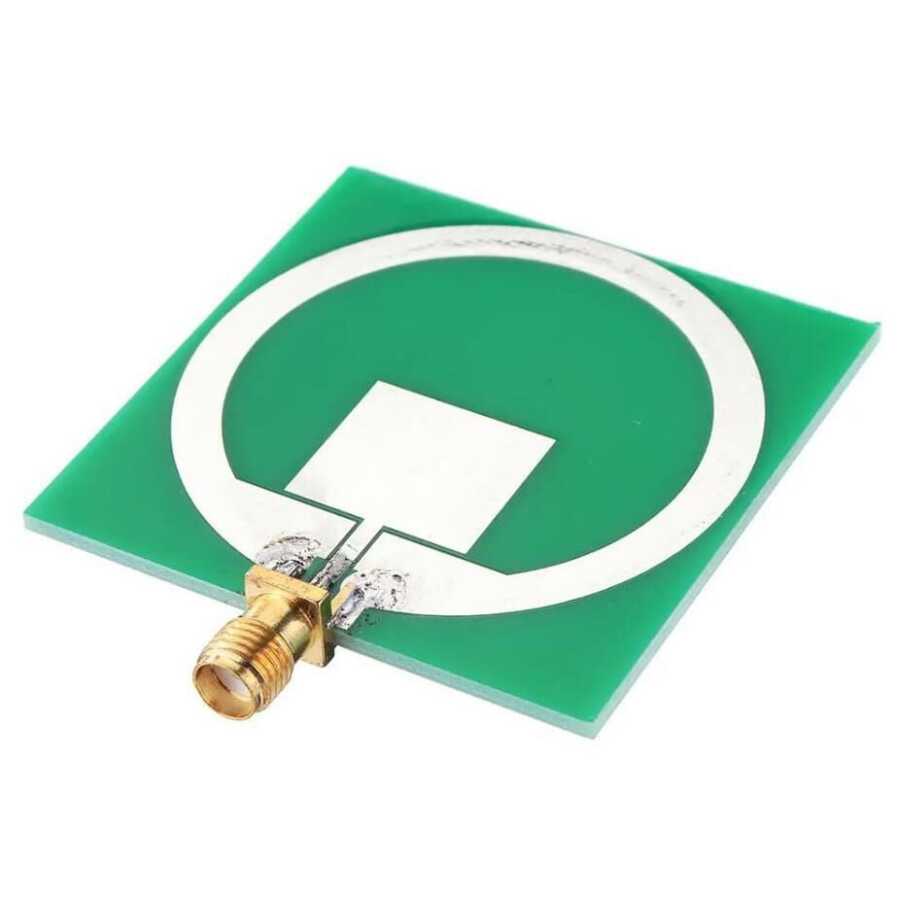

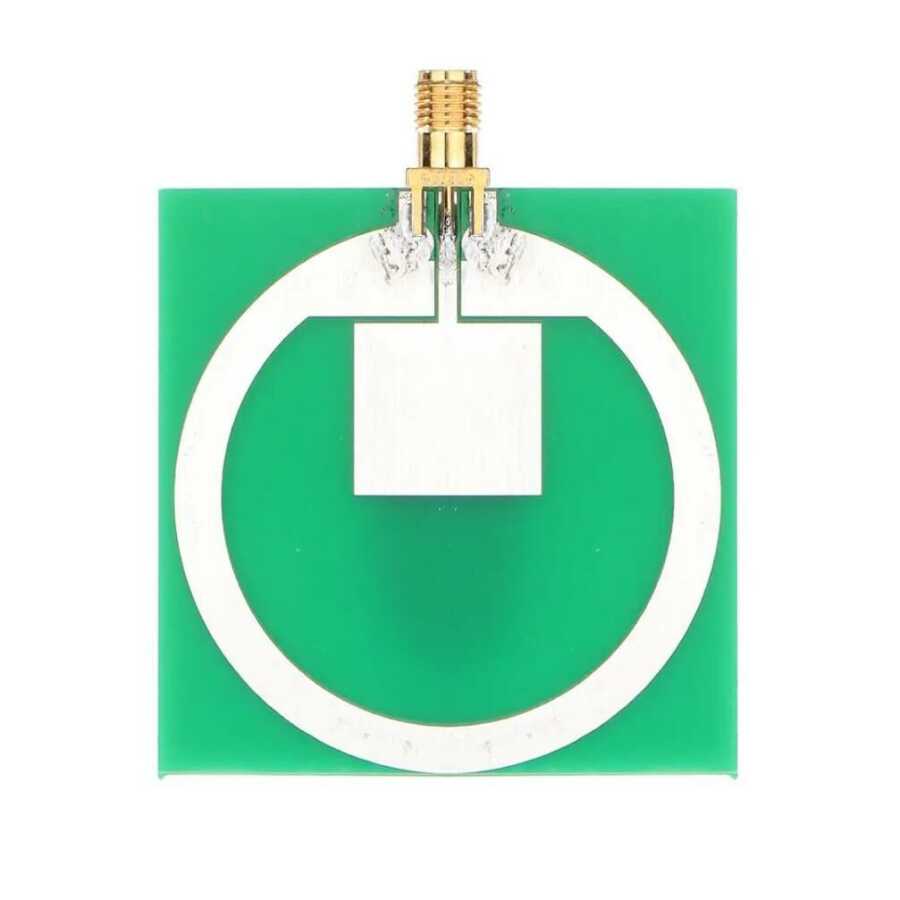

UWB Ultra Wideband 2.4Ghz - 10.5Ghz Pulse PCB Antenna Module
Mainly used for ultra-wideband positioning, communication, etc. It is an improved UWB antenna used for The antenna coverage frequency is 2.4GHz-10.5GHz, and the standing wave is generally less than 2.5.
The antenna is characterized by its small size and high efficiency.
Technical Specifications
Operating frequency: 2.4GHz-10.5GHz
Polarization mode: vertical linear polarization
Input impedance: 50 (ohm)
Maximum power: <10W (40dBm)
Size: 50 x 50mm (without connector)
Joint type: SMA female
