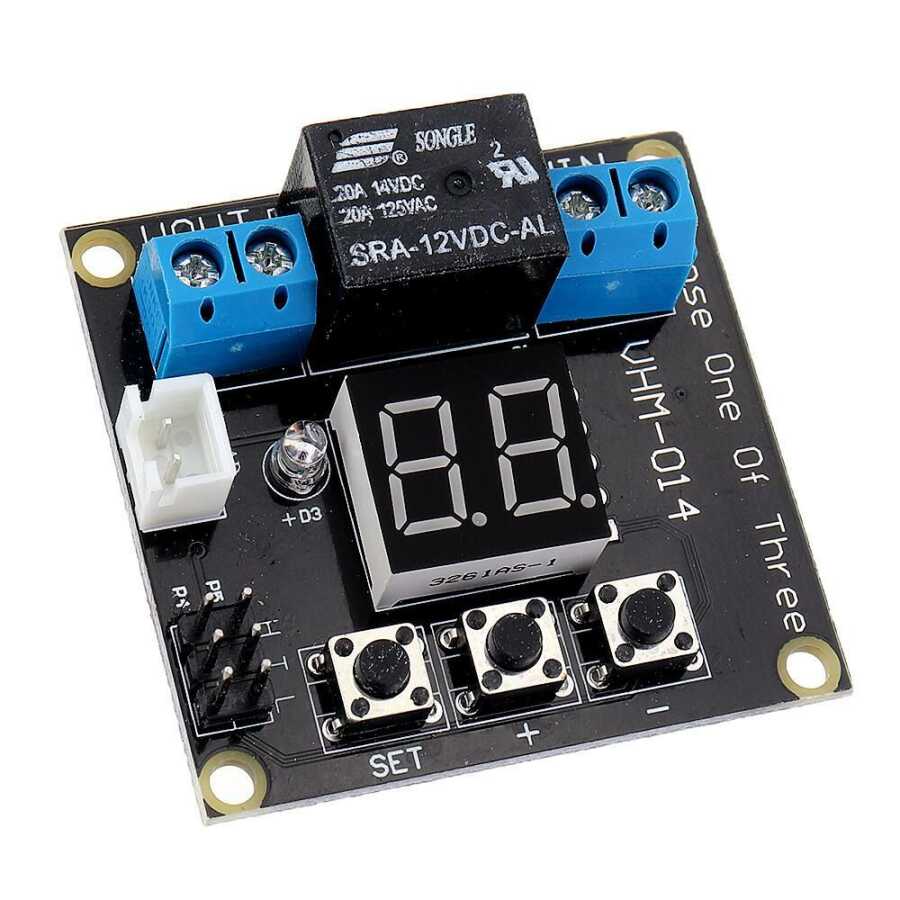

VHM-014 12V Heat-Humidity-Light Controlled Relay Card
VHM-014 is a 12V temperature-humidity or light-controlled relay control card. Only one of the temperature, soil moisture and light control features can be used at a time. More than one feature cannot be used at the same time.
The jump pin within the product is plugged into the pins of whichever feature is used.
H for Humidity
div>
T for Temperature
L for Light
Technical Specifications:
- Product Number: VHM-014
- Power supply: DC 12V
- Output method: Output switch
- Humidity range: 20 ~ 99% RH
< li>Control precision: 1%RH - Photometric range: 0-99%
- Photometric accuracy: 1%
- Temperature range: 0-60°C< /li>
- Temperature accuracy: ± 2°C
- Control current: 5A
- Product size: 45*43*18mm

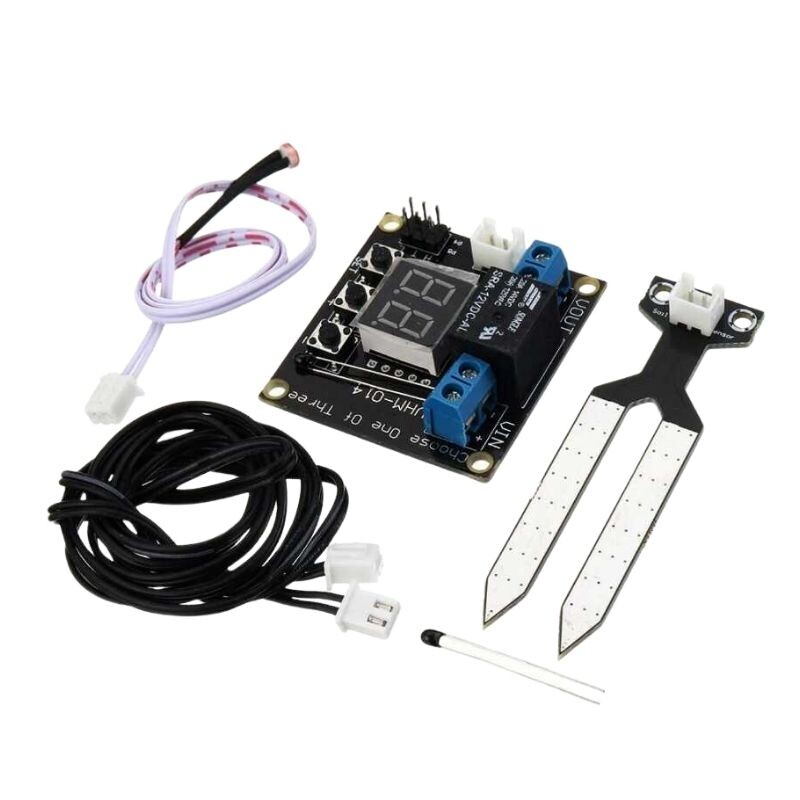

Product Box Content:
- Vhm-014 Circuit Board
- Soil Moisture Sensor
- Ldr Sensor
- 2ad temperature sensors < /li>
