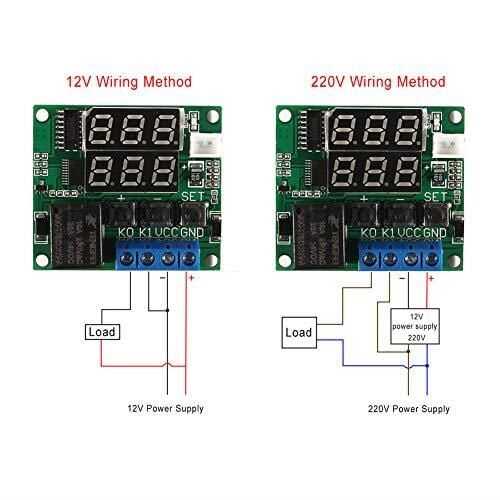

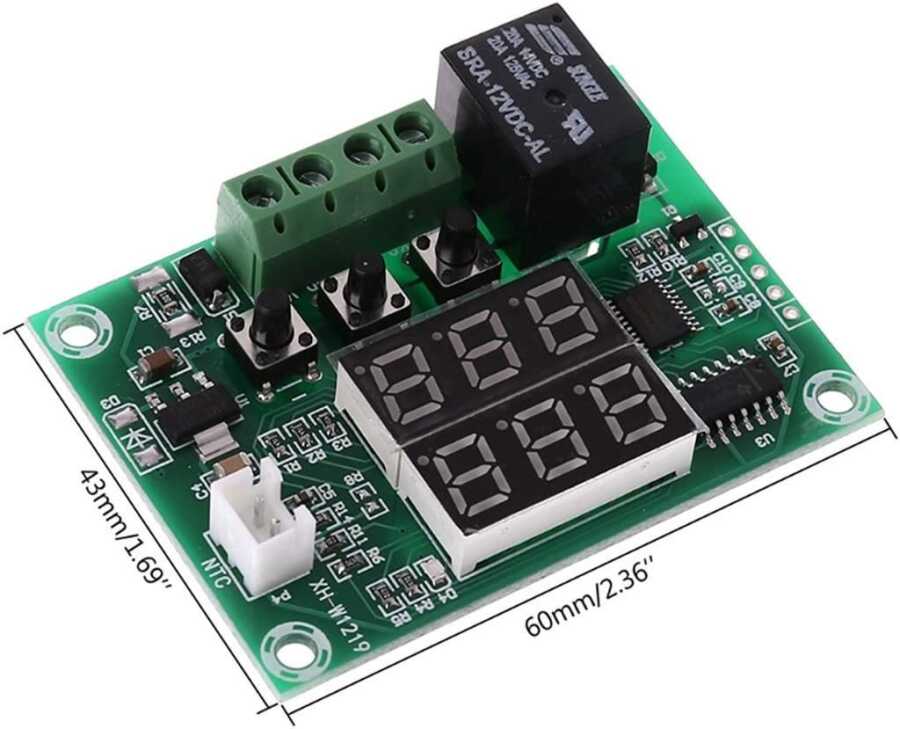

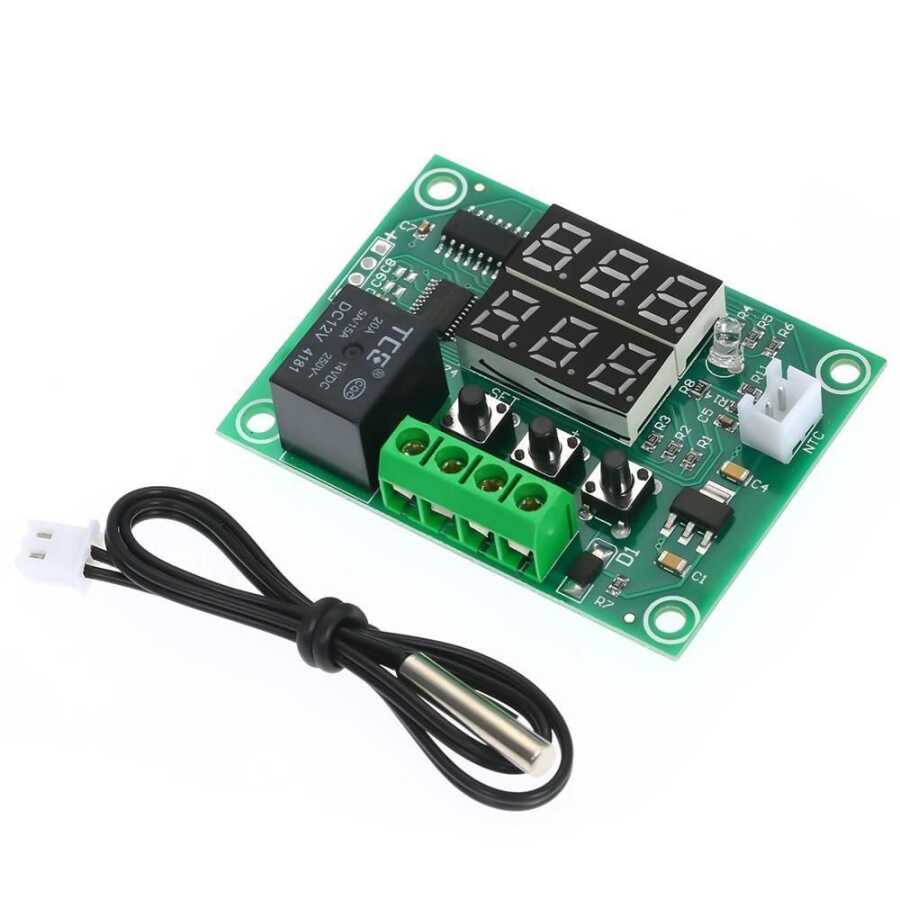

XH-W1219 12V Relay Output Digital Thermostat - Temperature Control Module is a thermostat relay product preferred especially in incubator applications . It is a suitable circuit for studies to be carried out depending on the temperature increase and decrease. There are both heating and cooling modes. The product works with 12V. The relay can switch AC 220V or DC 12-24V.
Operating mode and temperature values can be entered with the buttons on the product
.
Product Adjustments
- P0: Operating mode selection. H and C modes are set in this option. H is the heating mode and C is the cooling mode.
- P1: The opening plus value is set from this option. For example, if 30 degrees is entered on the bottom screen in C mode and 2 is entered in P1 option, the relay will open at 32 degrees. It will turn off when it drops to 30 degrees.
- P2: Calibration option. If the sensor shows a slightly different value from the actual value, you can calibrate the device with this option.
- P3: This option is used to set a time delay for the start. A delay between 0 and 10 minutes can be set.
- P4: High Temperature alarm value is set from this option.
