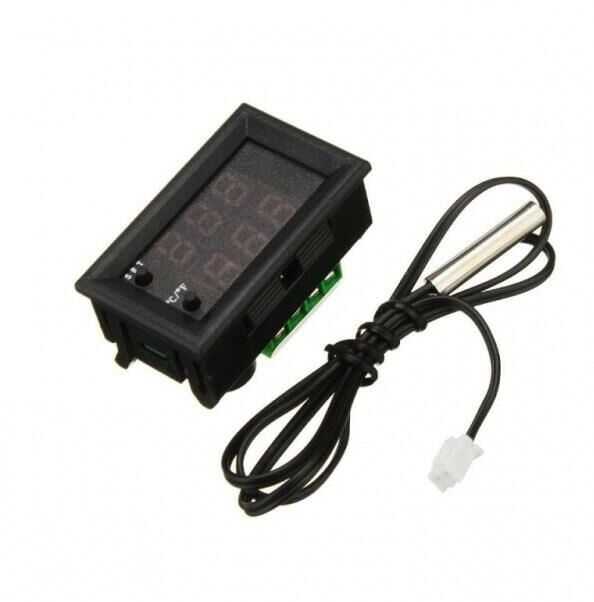

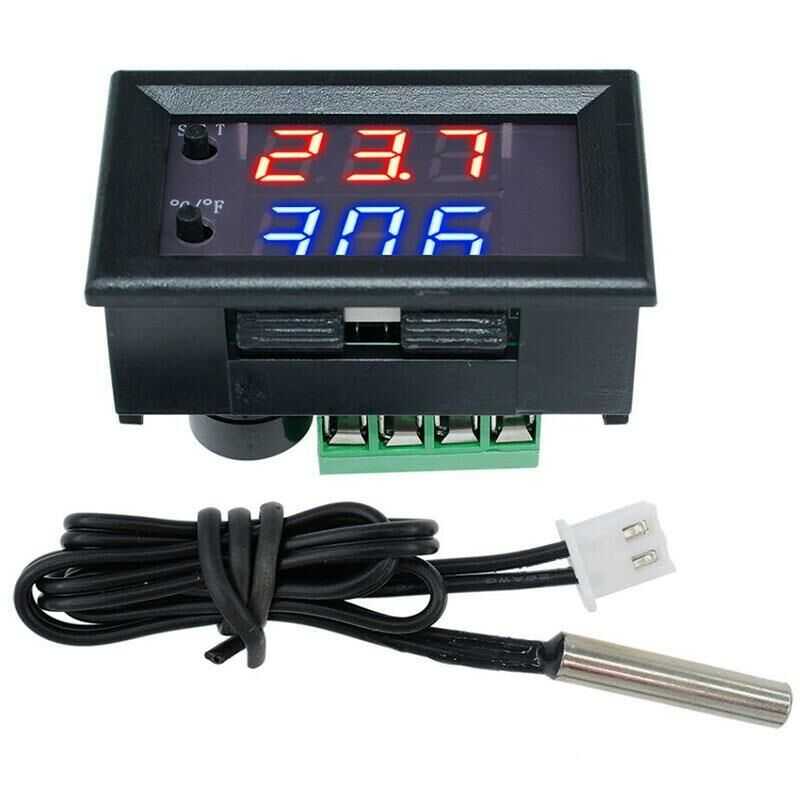

A simple thermostat that displays the set and current temperature. The panel includes buttons for the display in a compact case. The red indicator at the top shows the current ambient temperature. The blue indicator shows the temperature we set. Press the SET button to adjust the temperature. The temperature can be adjusted by increasing or decreasing with 2 buttons. When the SET button is pressed for 5 seconds, thermostat settings are entered. You can see the settings one by one by pressing the Set button. To change the settings, 2 buttons are pressed simultaneously and the settings are changed with 2 buttons.
Technical Specifications
Temperature measurement range: -50 ℃ ~ 110 ℃
Pitch measurement: 0.1 ℃
Accuracy: 0.1 ℃
Refresh rate: 0.5 s
Supply voltage: DC12V (required for thermostat operation)
Switching voltage: 250 VAC
Measuring element: NTC of waterproof state thermistor (10.5 0.5%)
Thermostat can operate in cooling mode and heating mode.
