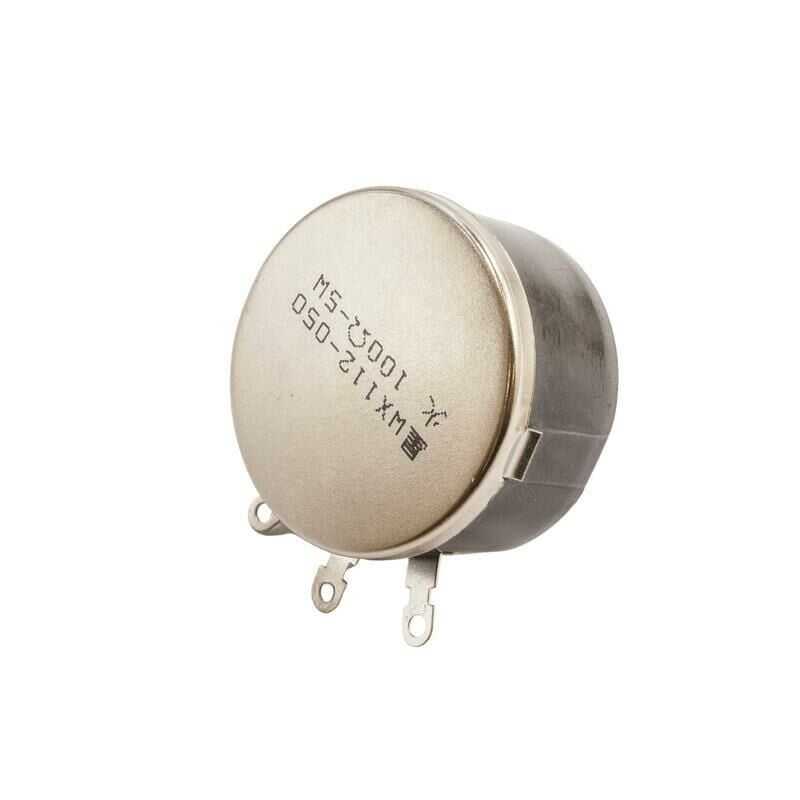

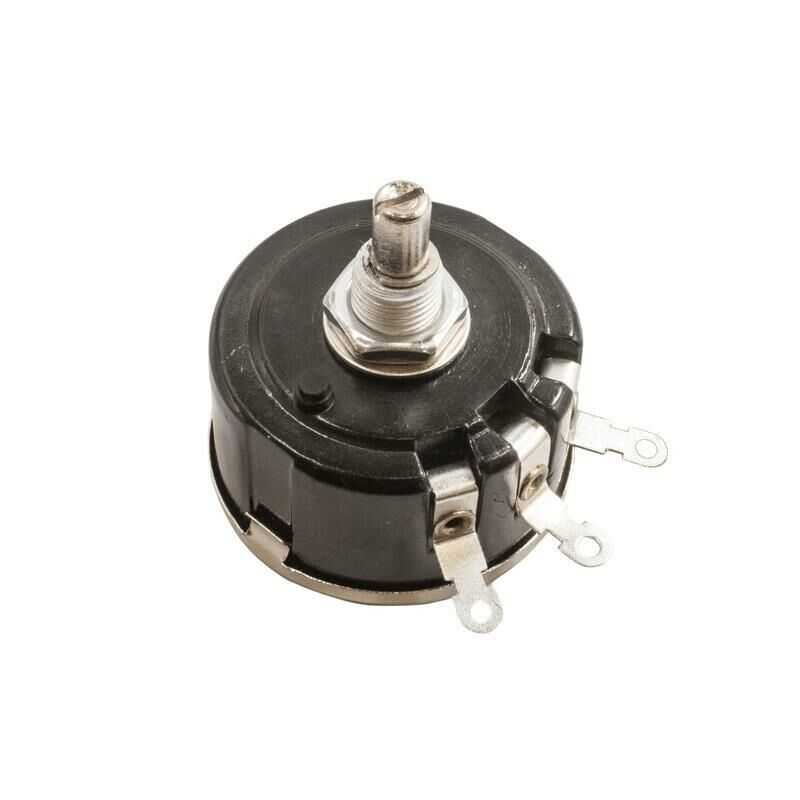

WX112 22K 5W Single Turn Potentiometer
It is a single turn 22K potentiometer that can withstand a maximum of 5W power. As you turn the pot, its resistance changes. It can be used when intermediate resistor values are needed or in ADC operations.
Technical Specifications
Model: WX112
Power : 5W (55°C)
Maximum Operating Voltage: 320V
Resistance Tolerance: ± 10%
Rotation Angle: 300 ° ± 10 °
Shaft Torque: 3.5 ~ 100mN.m
