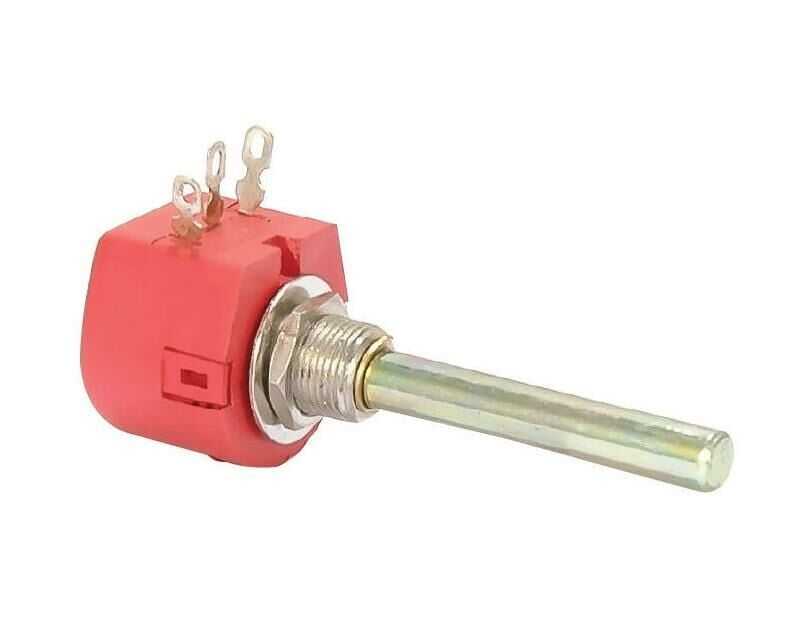

WX118 2.5K 1W Single Turn Potentiometer
It is a single turn 2.5K potentiometer that can withstand a maximum of 1W power. As you turn the pot, its resistance changes. It can be used when intermediate resistor values are needed or in ADC operations.
Technical Specifications
Model: WX118
Power : 1W (40 ° C)
Maximum Operating Voltage: 200V
Operating temperature. Range: -55°C ~ +125°C
Resistance Tolerance: ±10%
Rotation Angle: 265°±5°
Dielectric Strength (Room Conditions): 1000V AC
Insulation Resistance: 1000MΩmin. (at 500V DC)
Shaft Torque: 3.5 ~ 100mN.m
