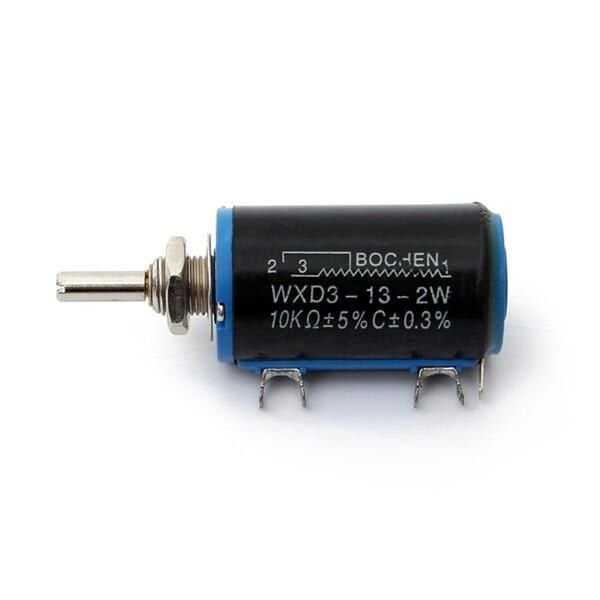

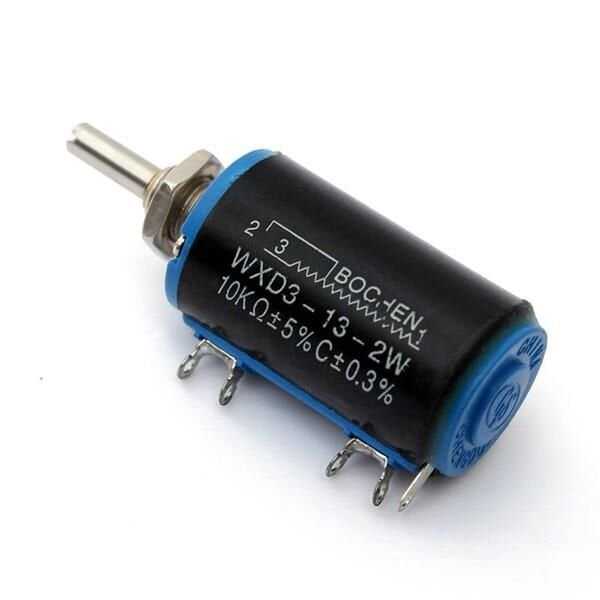

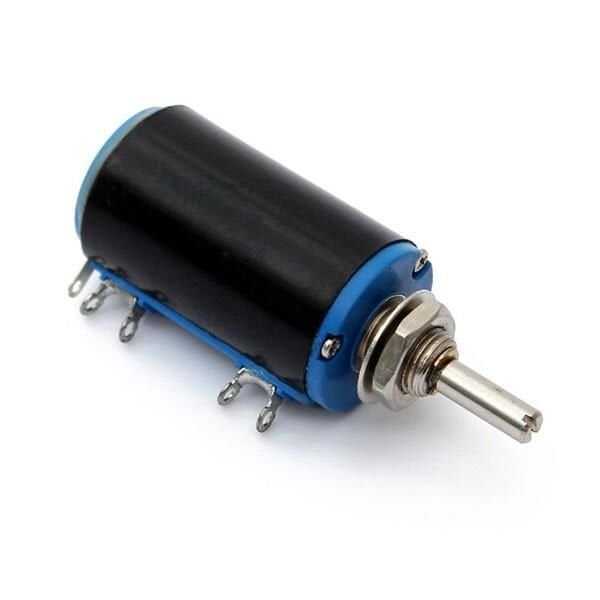

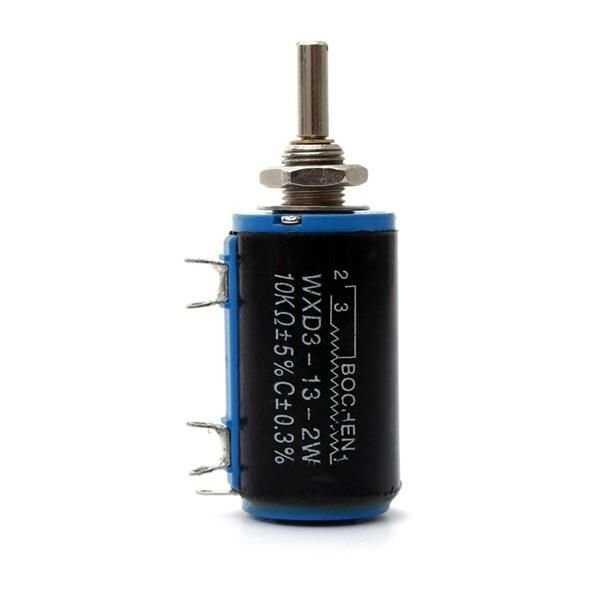

WXD3-13-2W 10K Multi-Turn Potentiometer
Multi-turn potentiometer with 10K Ohm resistance value for 2w power.
This potentiometer can be fitted with
KYP22-18-4 potentiometer head.
Electrical properties
- Nominal resistance range: 100Ω ~ 100KΩ
- Resistance tolerance: ±5%
- Terminal resistance: ≤ ±0.2% R or 5Ω
- Insulation resistance: ≥ 200MΩ (100V AC)
- Withstand voltage: 160V (DC or AC peak value)
- Electrical angle: 3600 ° ± 10 °
Environmental characteristics
- Rated power: 2W (300V 70 ° C)
- Temperature range: -55 ° C ~ + 125 ° C
- TCR: ±100 x 10-6 / ° C
- Vibration (10-500 HZ, 0.75 mm, 6 hours)
- ≤R≤ ± 1% R, ΔUab / Uac≤ ± 2% R, Electrical breakdown≤100μS
- Temperature change (-55 ° C / 30min,
- + 125 ° C / 30min, 5 cycles)
- Electrical durability (2W, 1000h)
- Mechanical durability (1000 cycles)
