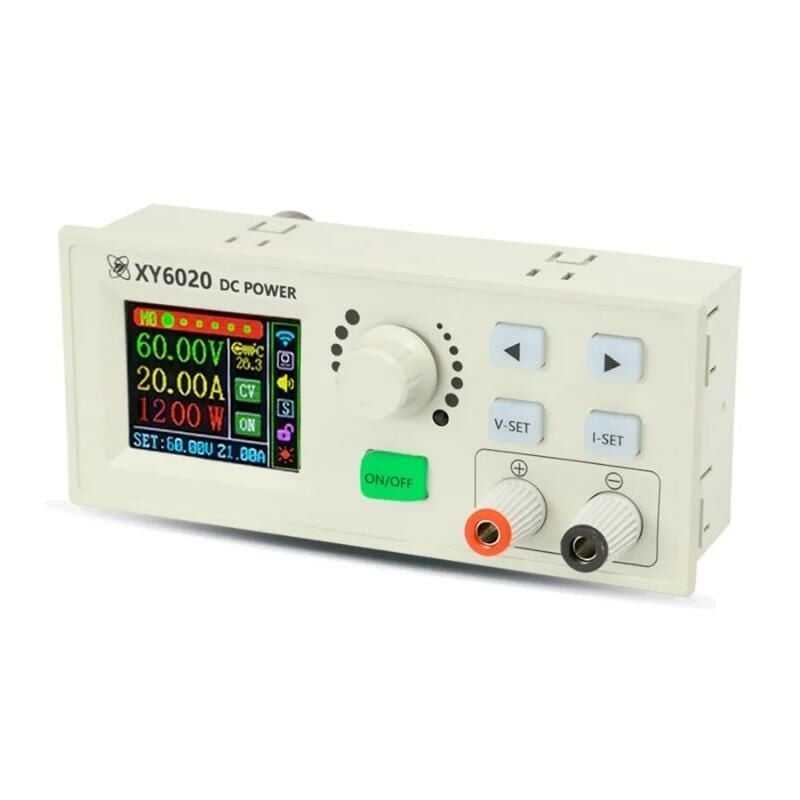

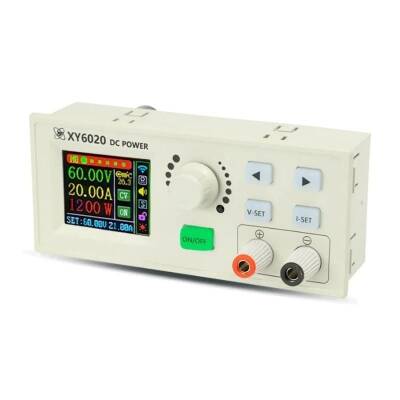

XY6020-W 60V 20A Adjustable Power Supply - Remote + Wifi

Ratings & Reviews (0)
Comment
Brand: Motorobit
Product Code: GUC.AGC.01.000034
Stokta son 2 ürün
3,872.00 TL + VAT
VAT Included: 4,646.40 TL

XY6020-W 60V 20A Adjustable Power Supply - Remote + Wifi

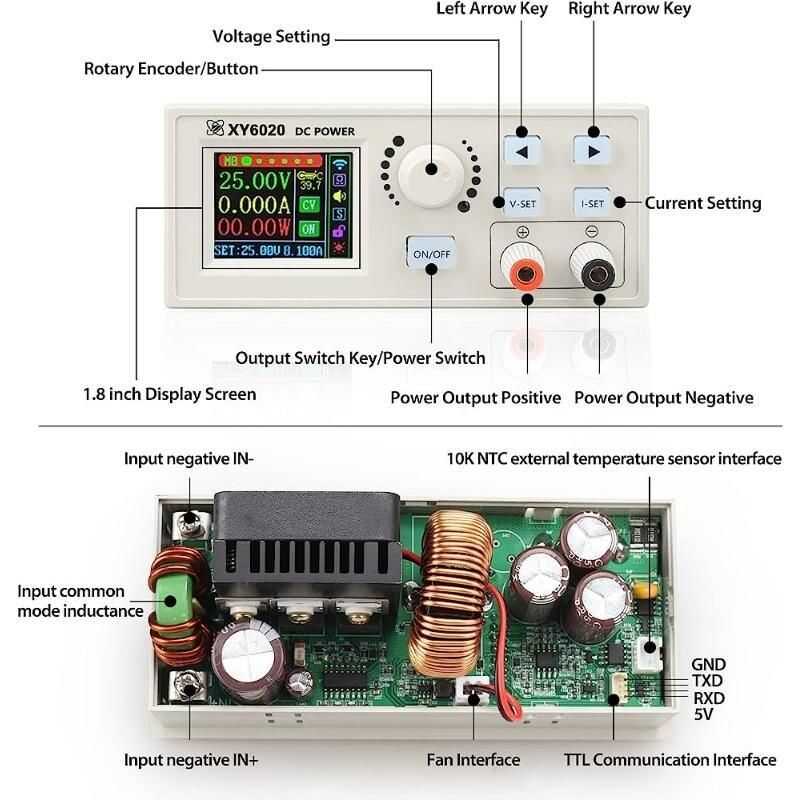

XY6020-W can be adjusted to provide DC voltage between 0-60V and current output between 0-20A It is a power source. It has a 1.8 inch screen where you can observe voltage, current and energy values. Since voltage and current settings can be adjusted with a resolution of 0.01, it is a suitable product for obtaining precise outputs. It can measure temperature thanks to the NTC that comes with the product. In addition, remote control is possible thanks to the wifi module and remote control included in the box.

The product is not AC. It must be supplied with DC voltage.

Specifications:

  • Input voltage range: 6-70V ±1%
  • Output voltage range: 0-60V ±0.4%
  • Output current range: 0-20A ±0.5%
  • Output power range: 0-1200W
  • Input voltage measurement resolution: 0.01V
  • Output voltage setting measurement resolution: 0.01V
  • Current setting measurement resolution: 0.01V
  • Typical value of output ripple: 100mV VPP
  • Operating temperature: -10 to 40 ℃
  • Capacity measuring range: 0-99999Ah ±2%
  • Power measuring range: 0-99999Wh ±2%
  • Working time measurement range: 0-1000h
  • Display size: 1.8in
  • Remote control battery: 1 * CR2025, 3V, 150mAH

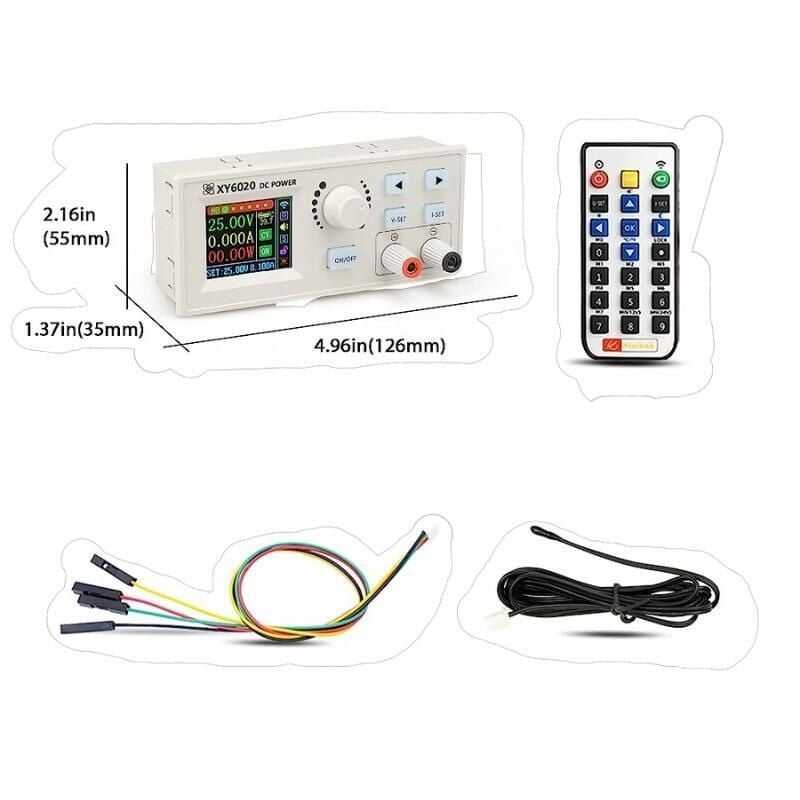

  • Item size: 125*55*35mm/4.9*2.2*1.4in
  • Item weight: 256g / 9.0ounce
  • Package size: 150*100*90mm/5.9*3.9* 3.5in
  • Package weight: 341g / 12.0oz
Weight(Kg)
1
