YF-18 Stepper Motor Speed Controller with Digital Display 8-24V DC

Ratings & Reviews (0)
Comment
Brand: Motorobit
Product Code: MSK.STP.01.000016
540.00 TL + VAT
VAT Included: 648.00 TL

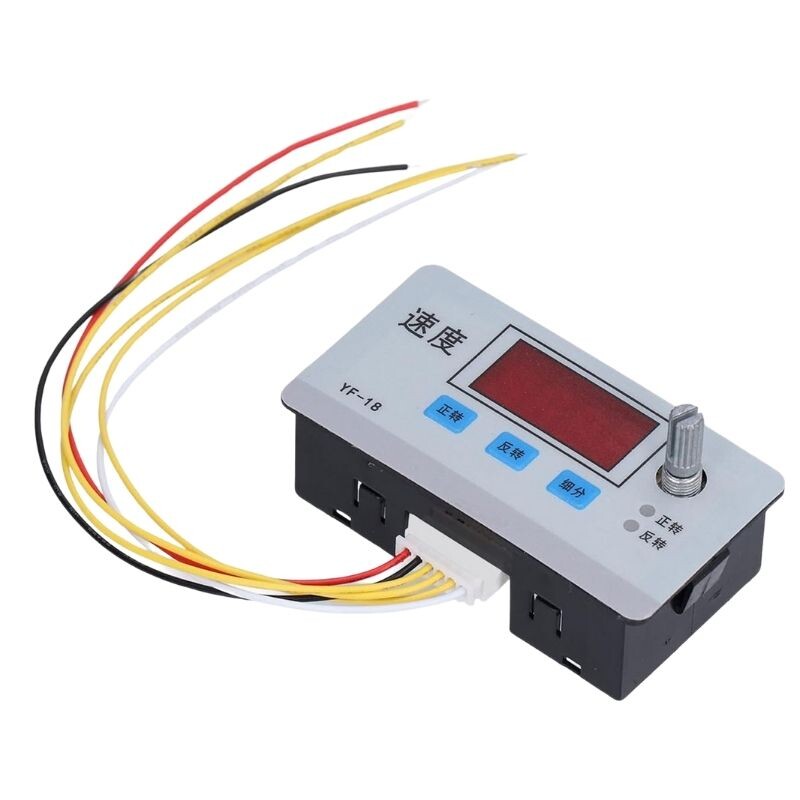

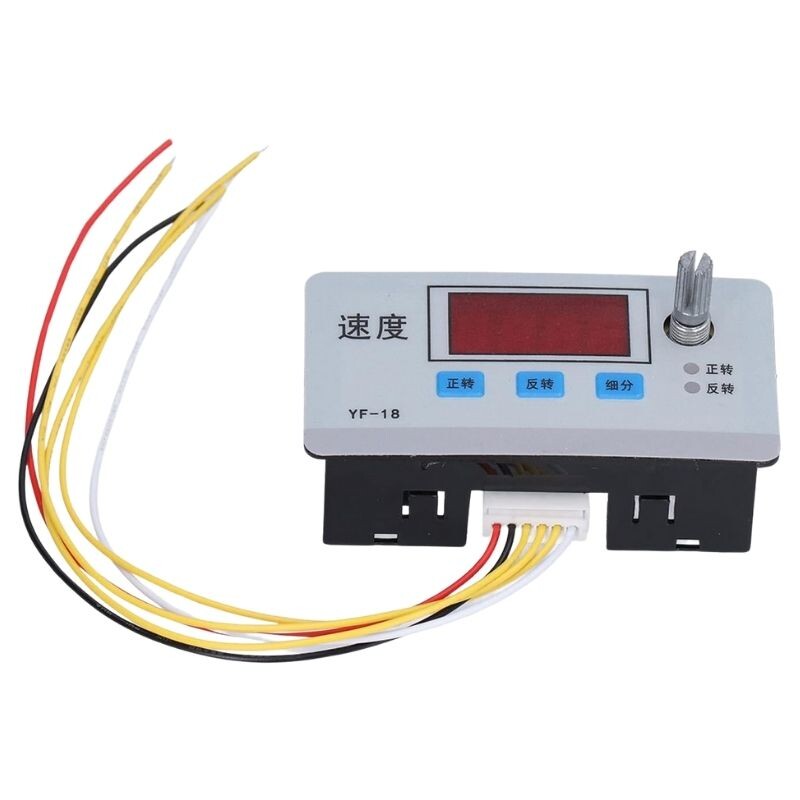

YF-18 Stepper Motor Speed ​​Controller with Digital Display 8-24V DC


It is a pulse-generating module used as a signal for stepper drivers. This simple and easy to use stepper motor speed controller has stable performance. The speed controller has the function of memorizing the last set speed value after power off.

It needs to be used with a driver to control the stepper motor; In other words, you need the following components as a minimum: a controller (like Arduino), you also need a stepper driver (like TB6600, TB6560) and of course the stepper motor.


Technical Specifications

Model: YF-18
Input Voltage: DC8-24V
Adjustable Speed ​​Range: 0.1-999 rpm
Application: Stepper Motor, DC Motor

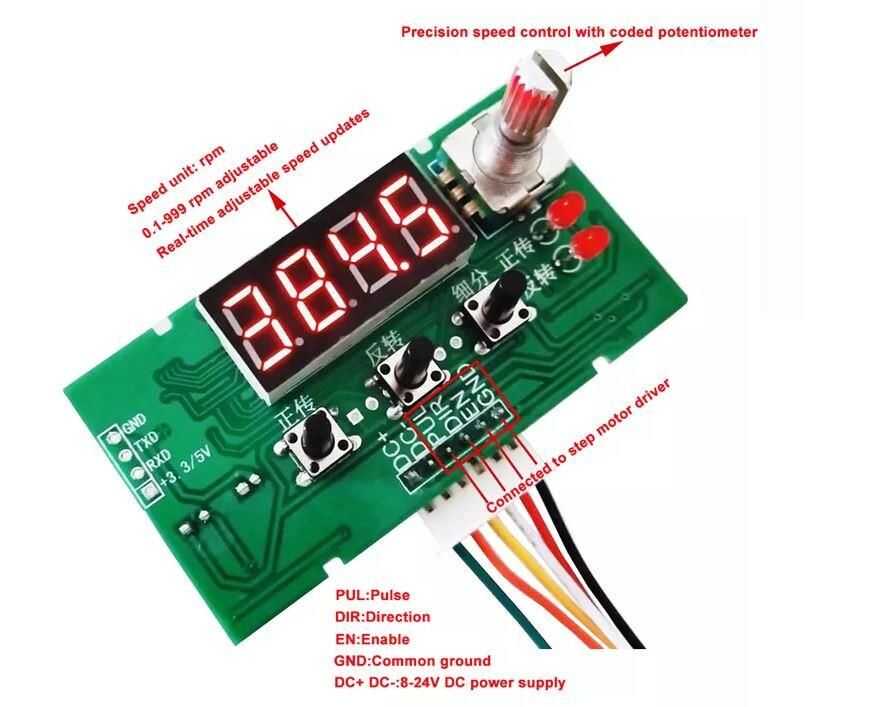

Pin Connections

DC+, DC- : DC 8~ To 24V power supply
PUL: connected to driver pulse end
DIR: connected to driver direction end
EN: connected to actuator activation end
GND : connected to the negative common terminal of the drive
Weight(Kg)
0.1
