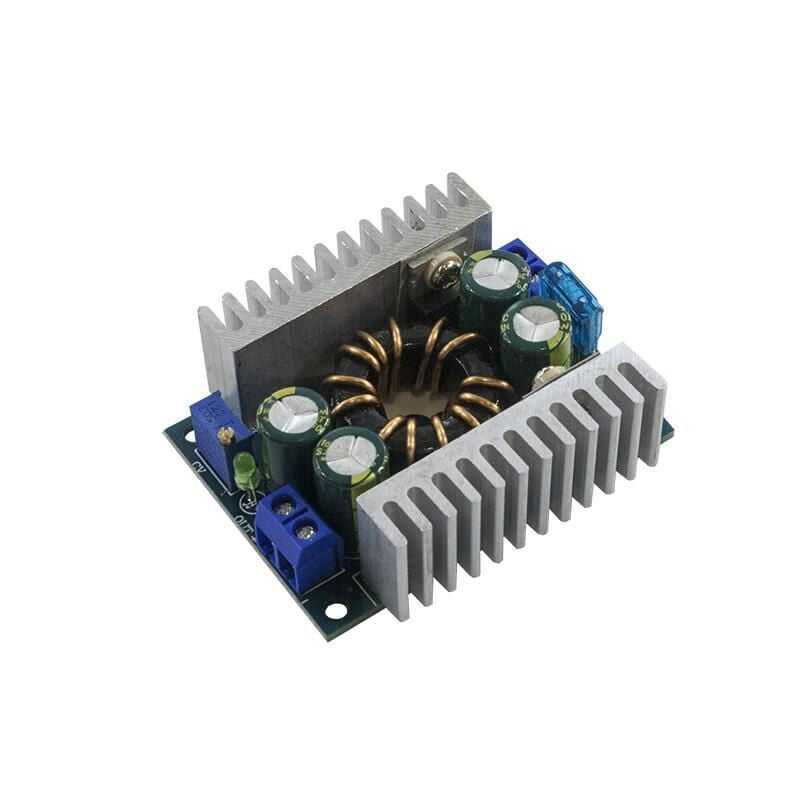

YH11063D 150W Voltage Booster Booster Module
YH11063D 150W Voltage Booster Booster Module. You can use this circuit when you want to increase your input voltage.
Since this product is an amplifier, you cannot get a lower voltage value than what you entered as the output value.
Technical Specifications
- Input voltage: DC 10-32 V
- Output voltage: 10-46 V
- Input current: 10A max. (more than 8A please increase heat dissipation)
- Output current: 8A max. (exceed 4A please increase heat dissipation)
- Output power: 90W (natural cooling), 150W (increase heat dissipation)
- Working temperature: -40°C to + 85°C (increase heat dissipation if too hot)
- Operating frequency: 380 KHz
- Conversion efficiency: up to 95%
- Short circuit protection: yes ( input 15A fuse)
- Input reverse polarity protection: none (please install diode in input port if you need)
- Wiring: terminals, no soldering required. V-IN input, V-OUT output.
- Dimension: 60mm (L) x 50mm (W) x 20mm (H)
- Wiring: Terminals, No soldering, V-IN input, V-OUT output
- Module size: 60mm x 50mm x 20mm
