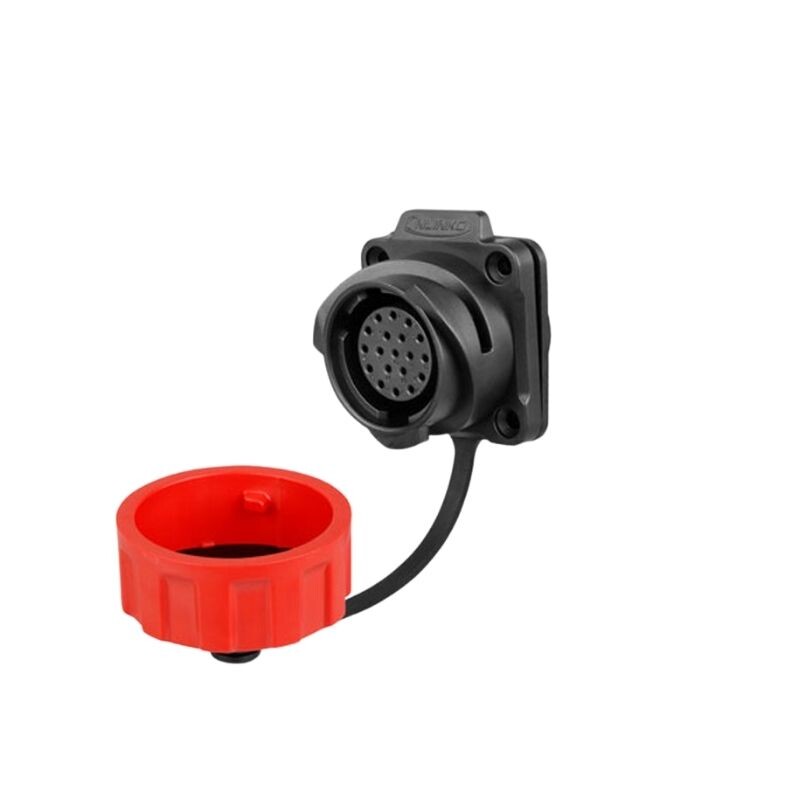

YM-24-J19SX-02-401A 19-Pin Waterproof Connector - Female

Ratings & Reviews (0)
Comment
Brand: CNLINKO
Product Code: KOM.KNN.05.000443
Stokta 10+ ürün
362.56 TL + VAT
VAT Included: 435.07 TL

YM-24-J19SX-02-401A 19-Pin Waterproof Connector - Female

YM-24 series connectors are widely used in various harsh environments and occasions such as audiovisual equipment, medical equipment, industrial control, inspection and measurement due to their small size, flexible operation and automatic plugging and unplugging. Compact components, simple operation, fast and stable connection, IP67 grade outdoor waterproof performance. Meets the quality and environmental protection requirements of international industrial equipment. Quick plug design enables one-handed plugging/unplugging. The power copper pin adopts gold plating technology, which can resist corrosion and is suitable for high and low temperatures.

CNLINKO products can be produced with cables upon request. Special production is valid for bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.


Technical Specifications

  • High temperature and pressure resistance
  • IP65/67 class when connected
  • Pin Count: 19
  • Cable Connection - 24-26 AWG
  • Rated Current - 5 Ampere
  • Operating Voltage - 250V AC
  • Contact Resistance - <2.5mOhm
  • Withstand Voltage - 2500V
  • Ingress Protection - IP65/67
  • Operating Temperature - -40 C - 80 C
  • Body Material - High Performance Plastic
  • Flammability Rating - UL94-V0


YM24 Waterproof Connector Datasheet

Weight(Kg)
0.15
Features
Connector Pin
19-Pin
