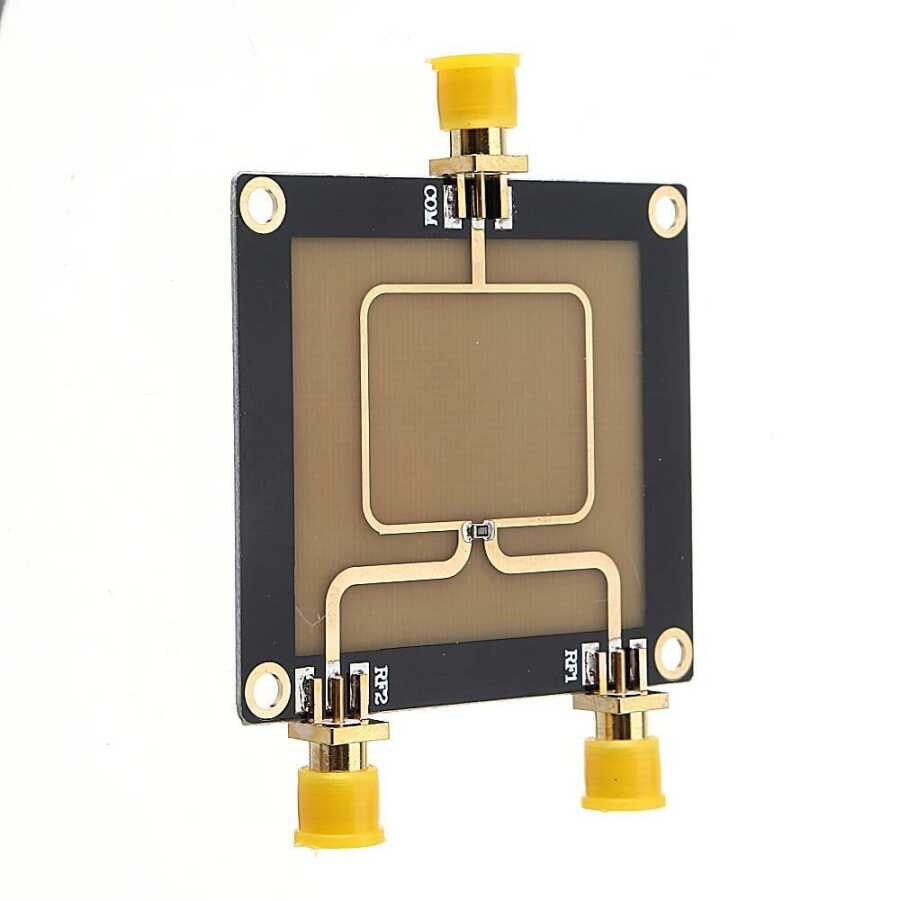

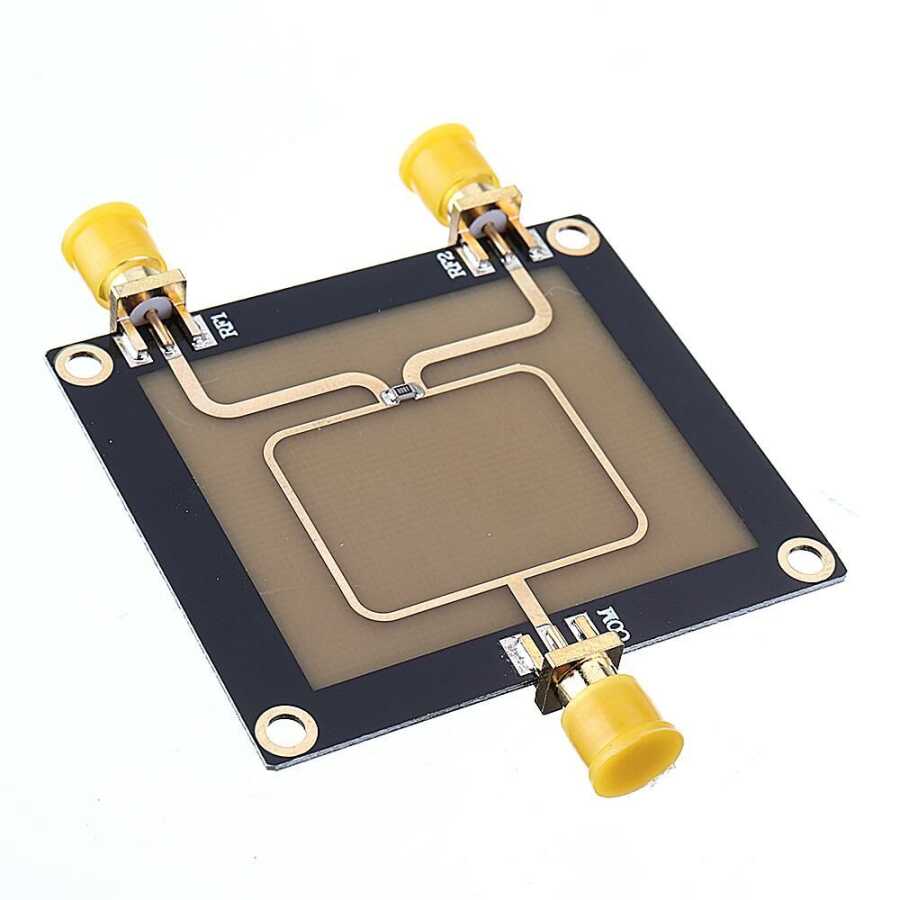

100-2700M Frequency Power Splitter - 2 Way Divider/Combiner
Microstrip power splitter converts the energy of an input signal into equal or unequal energy. A device that divides into two or more outputs; or vice versa, combines the energy of multiple signals into a single output. Also known as combiner. A certain degree of isolation must be maintained between the output ports of a power splitter. It has the advantages of wide operating frequency, small insertion loss, high gain and isolation and stable performance.
Technical Specifications
Frequency Range: 100-2700MHz
Standing wave ratio VSWR: ≤1.4
Isolation: ≥20dB
Insertion Loss: ≤1
Passband Ripple: ≤0.3 dB
Phase Imbalance: ≤ 3°
Impedance: 50Ω
Maximum Input Power: 25W
