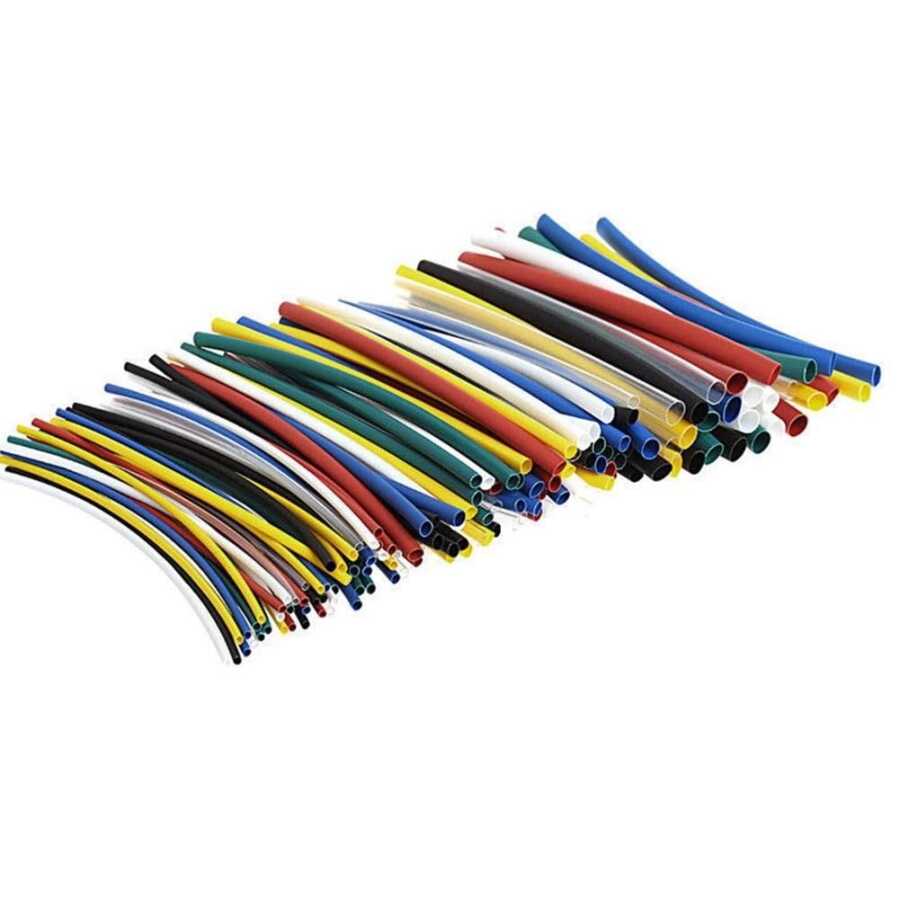

140 Piece Colored Sleeve Set
It is a tubing set created in 140 small pieces, with 5 different diameters and 7 different color options.
Supplied inner diameter: 1.0mm, 1.5mm, 2.5mm, 3.0mm, 5.0mm
Fully collapsed inner diameter: 0.5 mm, 0.75 mm, 1.25 mm, 1.5 mm, 2.5 mm maximum
Color:Black, Red, Yellow, Blue , Green, White, Transparent
Technical Specifications
Shrink Ratio: 2:1
Material: Polyolefin
Minimum Tensile Temperature: + 70 ° C
Maximum Tensile Temperature: + 110 ° C
Operating Temperature: -55 ° C to + 125 ° C
Tensile strength: 10.4 Mpa
Dielectric strength: 15kV / mm
Package content :
- 28 pcs x φ1.0 x 100mm (Quantity x Supplied inner diameter x Single length)
- 28 pcs x φ1.5 x 100mm
- 28 pcs x φ2.5 x 100mm
- 28 pcs x φ3.0 x 100mm
- 28 pcs x φ5.0 x 100mm
