1S-8S LiPo Battery Capacity Indicator

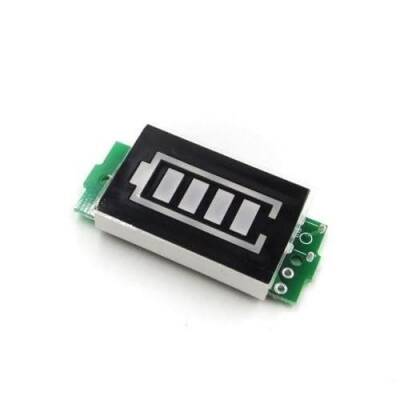

This lipo battery capacity indicator allows you to instantly see the status of your battery.
S1-S2 located on the back of the product. -In the S3-S4-S5-S6-S7-S8 section, you can short-circuit the pin of whichever battery you will use for it.
For example, if you use solder to short-circuit the place next to the S1 text when using a 1S battery, the battery indicator will be 1S. It will be available for .
Compatible with 1S-8S lipo batteries according to your setting.
Sample Screen Battery Indicator for 1S:
< div>
- Only the red battery frame lights up below 3.3V.
- 1 bar lights up in the 3.3V – 3.5V range.
- 2 bars light up in the 3.5V – 3.7V range. The bar lights up.
- 3 bars light up between 3.7V – 3.9V
- 4 bars light above 3.9V.
Connection:
The black cable is connected to the "-" end.
The red cable is connected to the "+" end.
It will display the battery level after connecting the positive and negative terminals of the test panel to the positive and negative side of the tested battery.
- Dimensions : 40mm x 20mm x 8mm
