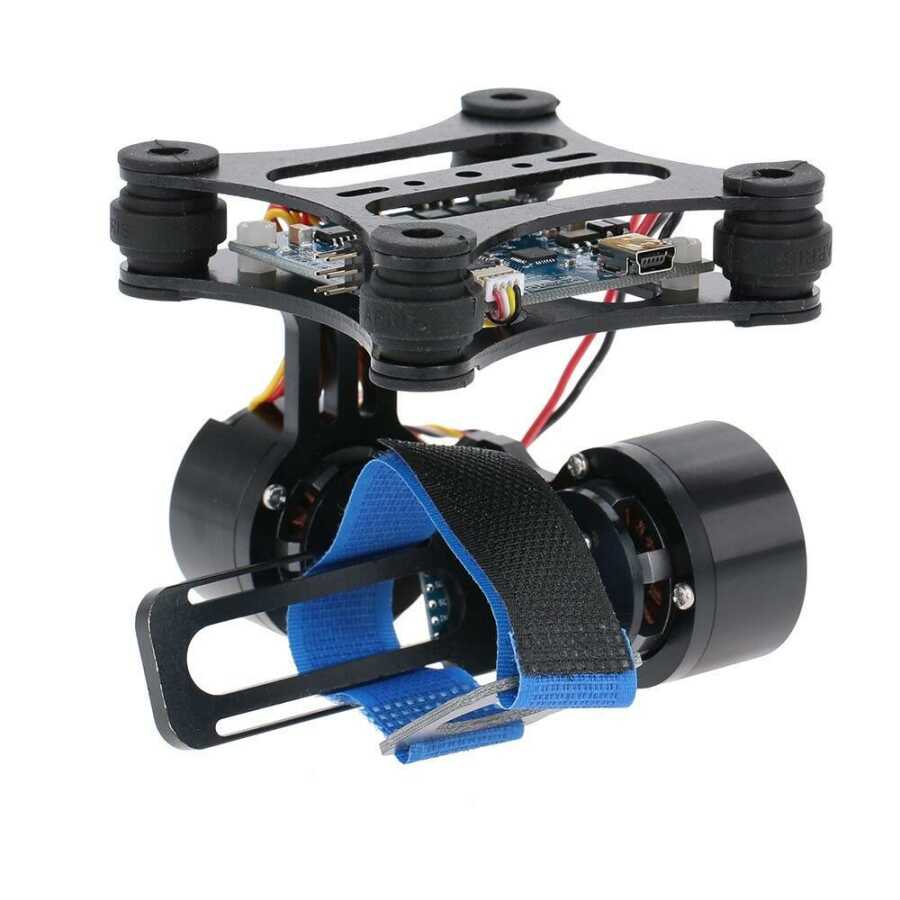

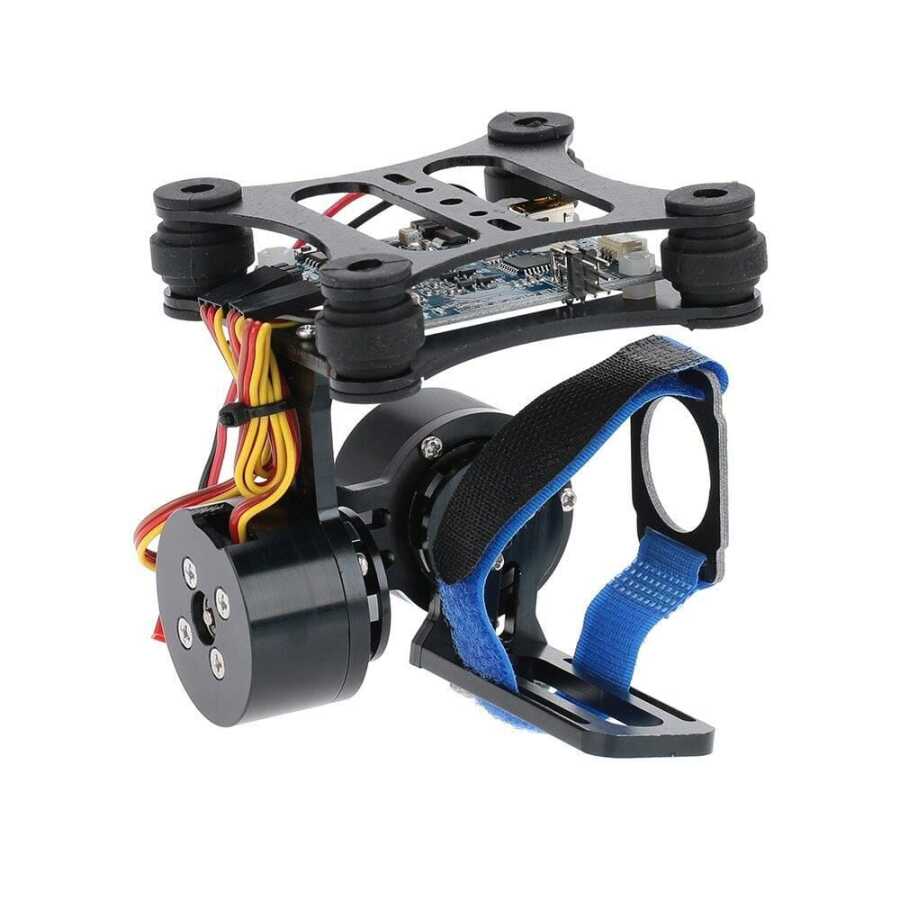

2-Axis Lightweight Brushless Gimbal - DJI and GoPro Compatible
Flying is pretty cool, but recording your flight for later playback is even more awesome! If you already have a GoPro, you're halfway there, combine it with this 2-axis brushless gimbal and you'll be ready to record stunning cinematic video in no time.
This 2-Axis Brushless Gimbal' The great thing about it is that it comes ready to use right out of the box with pre-installed firmware and setup by Flying Tech! All that is required is to mount it to your multicopter using the supplied 10mm rail mounting hooks or spacers to bolt directly to your frame. What's more, the gimbal will also fit the DJI Phantom without any modifications to the mounting bracket.
Please note While the gimbal comes ready to install, you are advised to perform an accelerometer and gyroscope calibration before use. We recommend. You may also need to optimize their PIDs to suit your flying style.
Calibration Steps

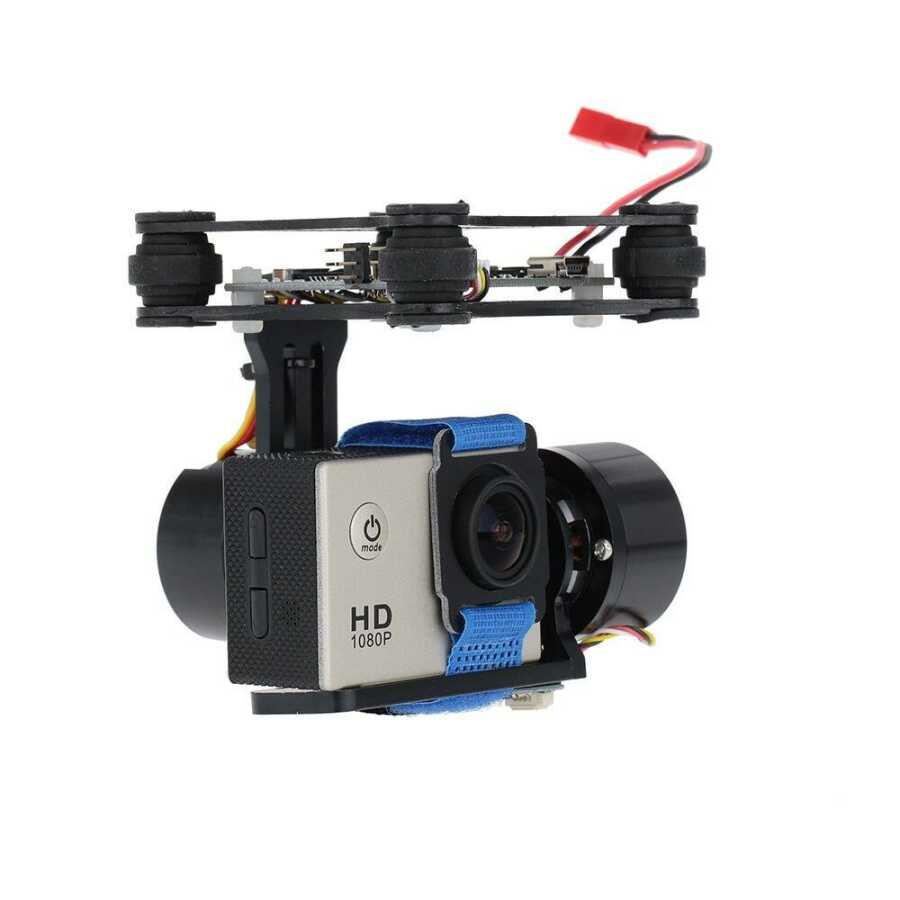

Step 1. First mount the camera on the Gimbal. Mount to.
Step 2. Secure the gimbal to the bottom of the Quadcopter frame or any plane surface.
Step 3. Turn on the gimbal.
Note: After power on, the gimbal starts to calibrate, so do not touch or move the gimbal for 1 minute. After calibrating, the Gimbal beeps. Also, do not swallow the gimbal in your hand, it will not calibrate.
Specifications:
Motor type: 2 x 2208 KV80 brushless motor
Driver board: BGC 3.0 Brushless Control Panel
Firmware Version: BGC2.1
Compatible Camera: GOPRO 3, GOPRO 3+, GOPRO 4
Operating Voltage: 3S (12V)
Compatible Models: DJI Phantom I, DJI Phantom II and other DIY Models
Dimension: 80 x 80 x 800 mm (L x W x Y)
Mounting plate spacing: 20mm
Material: CNC Aluminum
Weight: 200g

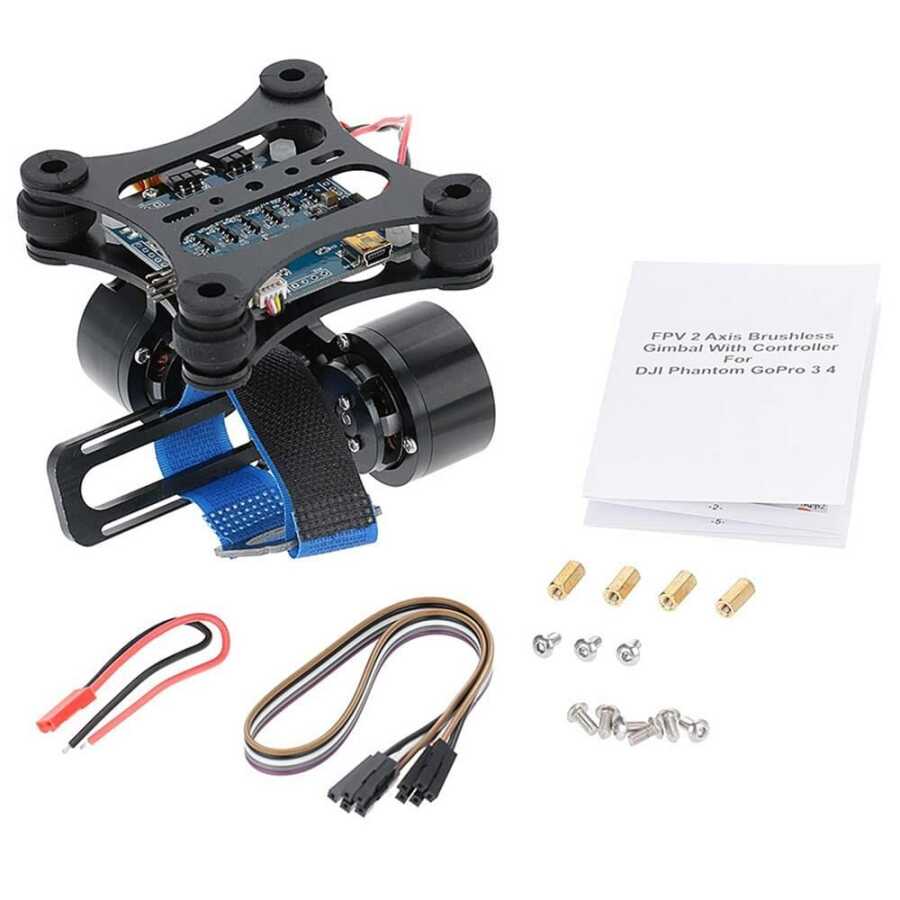

Package included:
1 x FPV 2 Axis Brushless CNC Metal Gimbal
1 x Camera fix Strap
1 x JST plug / XH-2.54 Plug
1 x 5pin cable connector
1 x Screw set
NOTE 1: Does not include camera, you need to purchase it separately.< /DIV>
NOTE 2: The recommended power supply for the gimbal is 12V. (3 cell lipo battery)
NOTE 3: The GoPro camera must be fixed very well on the gimbal.
NOTE 4: Please do not turn on the gimbal until the Gopro camera is fixed on the gimbal.
