Input Voltage: DC12V
Operating Frequency: 433MHz
Channel Numbers: 2CH
Coding Way: Intelligent Learning
Operating Temperature: -40°C ~ +80°C
Output Current: ≤ 10A
Receiver Sensitivity: ≥-105dBm
Factory Default: Self-locking

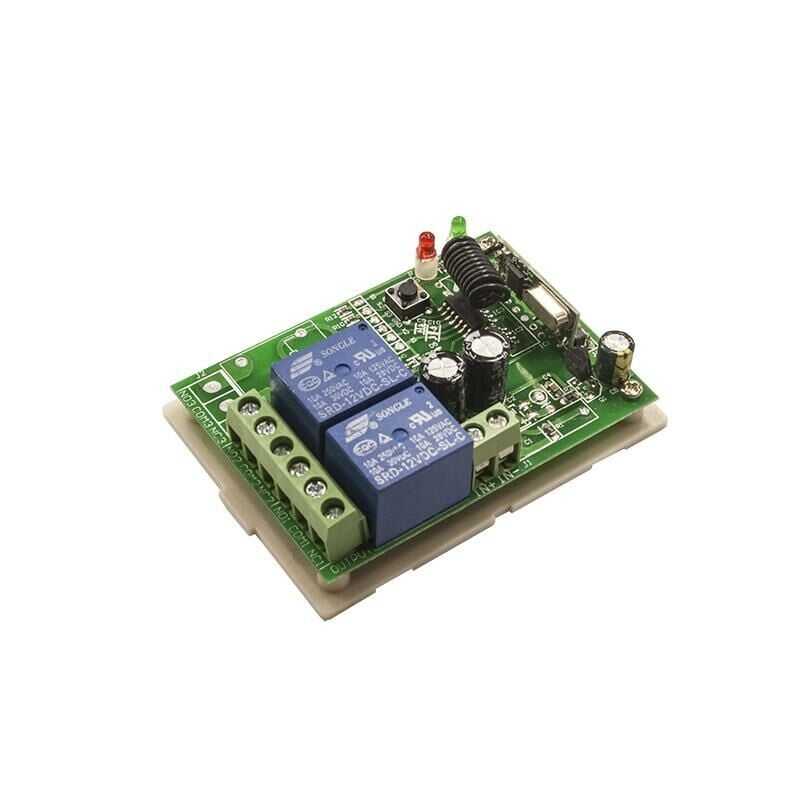

Board Size: 72.5x52.5x23mm
Case Size: 75x54x28mm
Operating Modes
Mode Clearing: Hold the button on the card, release it when the red light flashes.
Interlocked Mode: It is referred to as interlocking mode. When you press the A button, it starts the engine in the 1st channel. When you press the B button, it turns off the 1st engine and starts the 2nd engine. In other words, it shuts down the last employee and runs the channel you just pressed. Press and hold the button on the card. When the red light flashes and then flashes momentarily again, release the button. Press the button again, release it when the red light turns on, and press the "A" button on the remote control, then the "B" button.
Self-Locking Mode: This is the mode that starts the engine when you press the button and stops it when you press it again. Keep pressing the button on the card. The red light will blink and then blink again momentarily once and then when it blinks twice, stop pressing the button. Press the button again, release it when the red light turns on and press the "A" then "B" button on the remote control.
Momentary Mode: This is the mode that starts the engine when you press the button and stops it when you release the button.
Keep pressing the button on the card. The red light will flash and then flash again momentarily 1 time, then flash 2 times momentarily, and then when it flashes 3 times, stop pressing the button. Press the button again, release it when the red light turns on and press the "A" then "B" button on the remote control.
