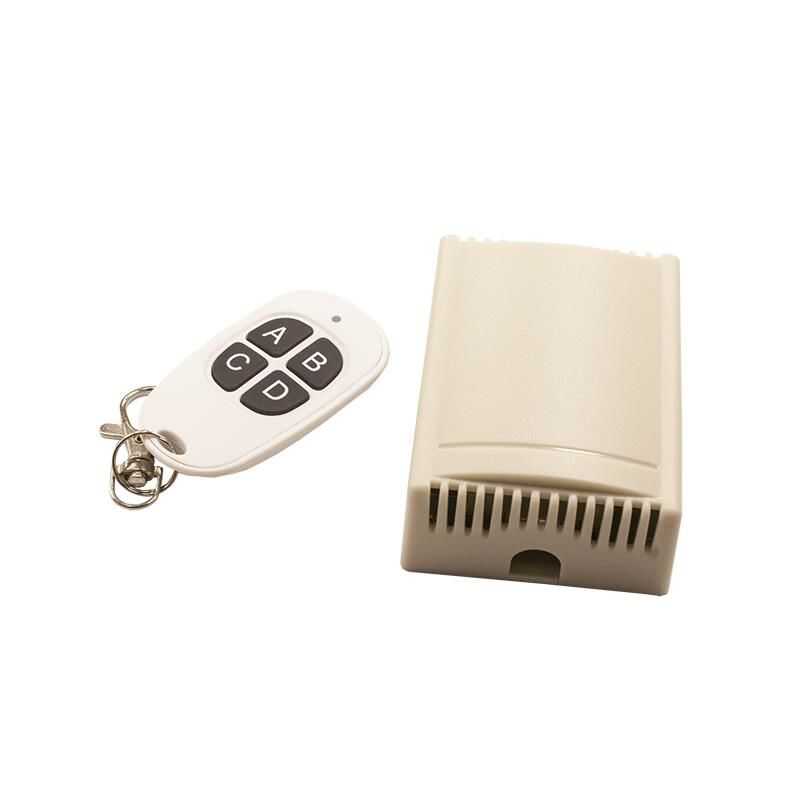

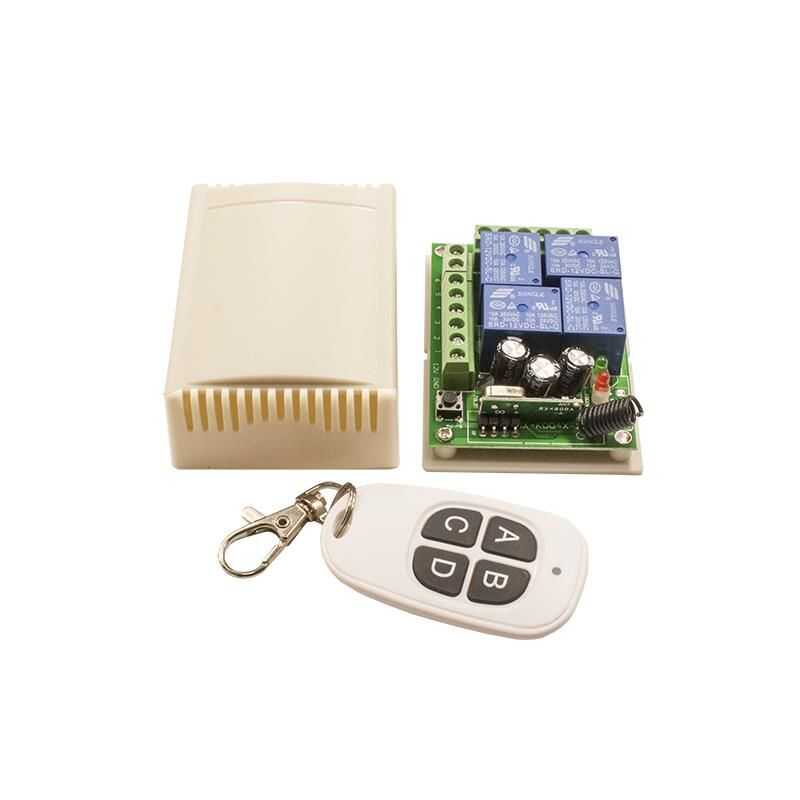

4 Channel 12V Remote Control RF Module Receiver Transmitter

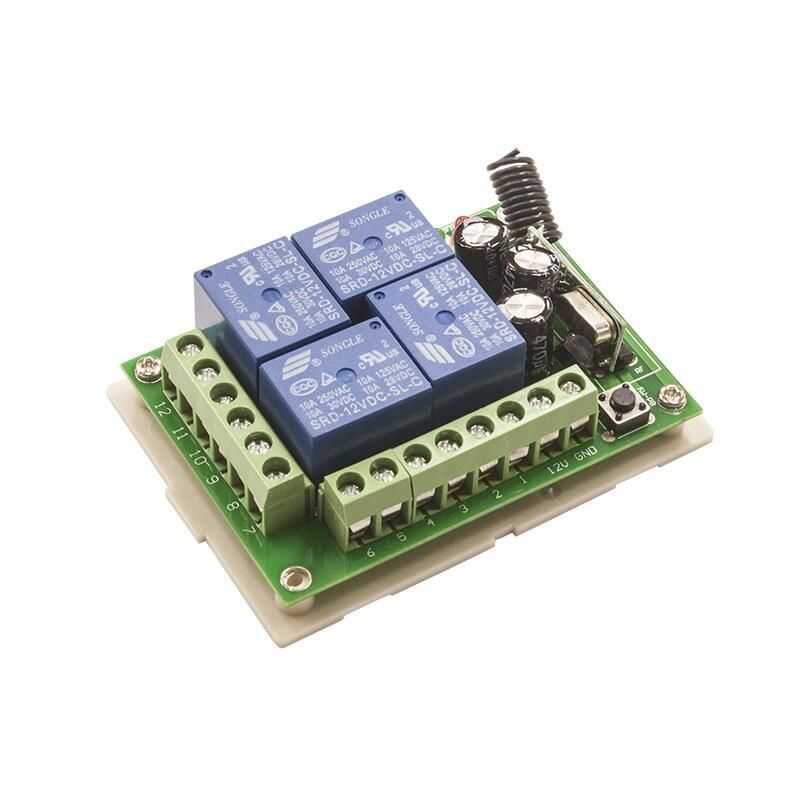

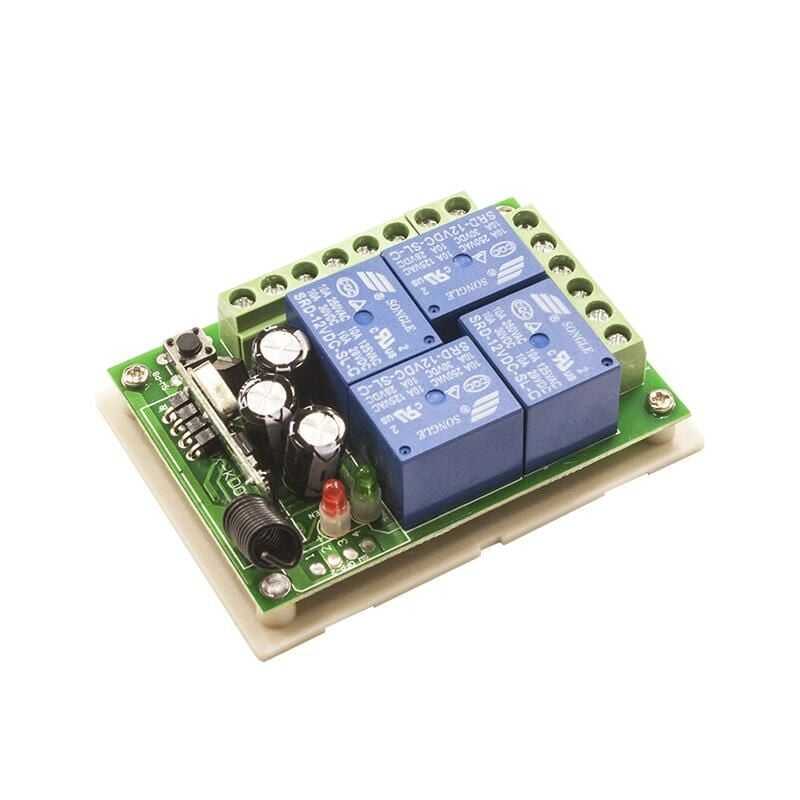

Remote intelligent RF controller has four relays that enable the equipment to be controlled to achieve the rotation of the motor or the on/off switching of the switch and various requirements has. The product features stable performance, small size and high reception sensitivity. Mainly used in electric door, window, lifting equipment, industrial control and security industry, etc. used.
Technical Specifications
Input Voltage: DC12V
Operating Frequency: 433MHz
Channel Numbers: 4CH
Coding Way: Smart Learning
Operating Temperature: -40°C ~ +80°C
Output Current: ≤ 10A
Receiver Sensitivity: ≥-105dBm
Factory Default: Self-locking
Card Size: 72.5x52.5x23mm
Box Size: 75x54x28mm
Operating Modes
Mode Clearing: Press the button on the card 8 times and the mode will be deleted. After clearing the mode, the mode must be determined again in order to control the receiver again.
Instant Mode: When you press the button It is the mode that starts the engine and stops it when you release the button.
Press the button on the board once and the Blue LED on the receiver will flash once. When the LED lights up again, press any button on the remote control, the blue LED on the Receiver will flash 3 times and turn off. Indicates that they have been paired successfully.
Self-Locking Mode: Press the button It is the mode that starts the engine when you press it and stops it when you press it again.
Press the button on the card twice, the blue LED on the receiver will flash twice.
When the blue LED lights up again, any button on the remote control Press a button, the blue LED on the Receiver will flash 3 times and turn off. Indicates that they have been paired successfully.
Interlocked Mode: It is referred to as interlocked mode. When you press the A button, it starts the engine in the 1st channel. When you press the B button, it turns off the 1st engine and starts the 2nd engine. In other words, close the last worker and run the channel you just pressed.
Press the button on the card 3 times, start the locking mode setting. Wait for a while, the blue LED indicator on the receiver will flash briefly and turn off.
Press the remote control A button, the LED will flash 5 times.
Press the remote control B button. The LED will flash 5 times.
After 3 seconds, the LED indicator will turn on again, indicating that the remote control and receiver have been paired successfully.
A = ON, B = OFF
