WM1302-SPI-US915 LoRaWAN Gateway Module

Ratings & Reviews (0)
Comment
Show More: RF Transceiver
Brand: Seeedstudio
Product Code: KHB.RFM.01.000126
Stokta 10+ ürün
704.00 TL + VAT
VAT Included: 844.80 TL

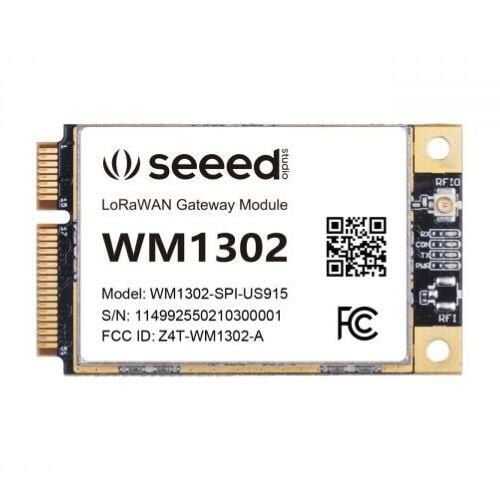

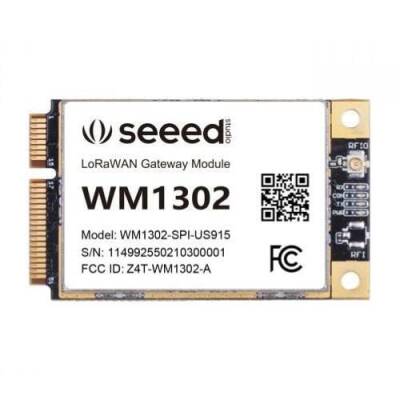

WM1302-SPI-US915 LoRaWAN Gateway Module

WM1302 module is a new generation LoRaWAN gateway module with mini PCIe form factor. Based on Semtech® SX1302 baseband LoRaWAN® chip, WM1302 unlocks higher potential capacity of long-range wireless transmission for gateway products. It offers higher sensitivity, lower power consumption and lower operating temperature compared to the previous SX1301 and SX1308 LoRa® chip.

Features

  • Semtech® Powered by SX1302 baseband LoRa® chip, extremely low power consumption and high performance.
  • Standard 52-pin gold-finger mini PCIe form factor can be easily integrated with a variety of gateway devices.
  • Ultra-low operating temperature, no additional heat dissipation required, reducing the size of the LoRaWAN gateway.
  • High sensitivity up to -139 dBm @SF12 with SX1250 TX/RX front-end; TX power up to 26 dBm @3.3V.

Technical Specifications

  • Frequency: 902-928MHz
  • Sensitivity: -125dBm @125K/SF7
  • Antenna Connector: U.FL
  • Operating Temperature Range: -40 ~ 85°C
  • Dimension: 50.95x30mm

Wiring Diagram

WM1302-SPI-US915 LoRaWAN Ağ Geçidi ModülüPinout

WM1302-SPI-US915 LoRaWAN Gateway Module
Weight(Kg)
0.1
