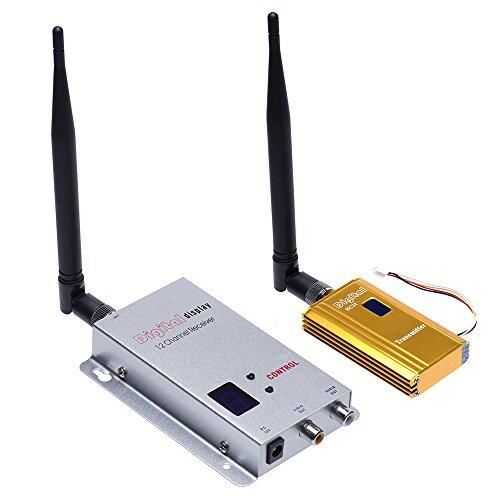

8 Channel FPV Wireless Image Transmitter Set 1.2 Ghz 1500 mW
The product consists of a transmitter and receiver. It adopts an advanced 1.0-1.3GHz wireless transmission scheme and has the advantages of a long transmission range (80 meters range indoors, open space will transmit farther, depending on the environment), anti-interference and high mobility.
< /DIV>
It can transmit the AV signals of DVD, DVR, CCD camera, satellite STB, digital TV STB and other similar devices through radio waves and receive them at the far end and enter a TV set for display. The video transmission of PAL/NTSC system and Supports stereo audio transmission.
Transmitter Features
*Input voltage: DC12V (adapter not included.)
*Current consumption: 400mA
*Operating frequency: 1.2GHz
*Power supply: 12V / 1A (DC) (adapter not included.)
*8 channels: CH4-1080；CH5-1120；CH6-1160，CH7-1200；CH8-1240；CH9-1280；CH-C,1320,CH-b,1360MHZ
*Output power: 1500mW
*Transmission distance: 1000- 2000 meters (barrier-free open area)
*Net weight: 85g
* Dimension: 73*41*14mm
Receiver Specifications
*Input voltage: DC12V
*Current consumption : 260mA
*Operating frequency: 1.2GHz
*Available channels: 12 Channels
*Power supply: 12V / 1A (DC) (adapter not included. )
*Use temperature: -20--60 degrees.
*FPV transmission distance: up to 3KM (barrier-free open area).
*Net weight: 118g
*Dimension: 115*80*21mm

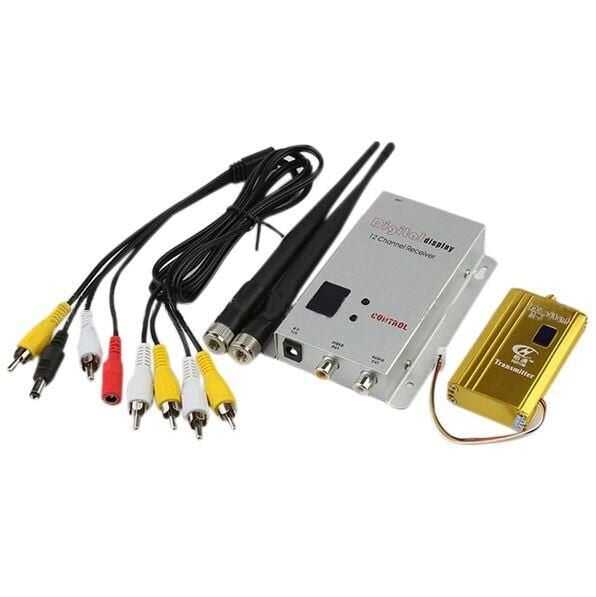

Package Content
*1 x 8 -CH Wireless AV Transmitter
*1 x 12-CH AV Wireless Receiver
*1 x AV Cable for Receiver
*1 x AV Cable for Transmitter< /DIV>
*1 x 1.2G Antenna for Receiver
*1 x 1.2G Antenna for Transmitter
*1 x User Manual
NOTE 1: It has a metal box used to cool the heat. For this reason, the product will get hot.
NOTE 2: Adapter is not included in the set.
