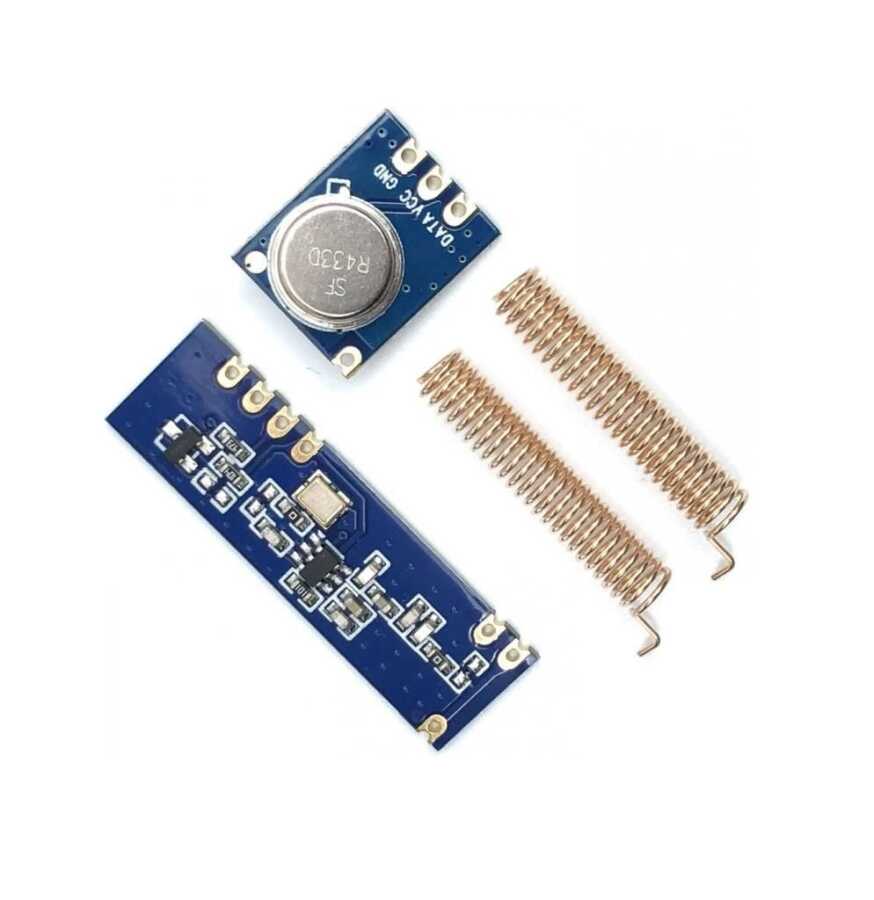

STX882 Transmitter & SRX882 Receiver Set - with 433Mhz Antenna
433MHz 100 Meter STX882 ASK Transmitter Module + SRX882 Super Heterodyne Receiver Module + Antenna.
STX882 is an ASK transmitter module with small size, ultra-high power and low harmonics. With high stability, when the voltage is 3.6V, it can be achieved at 50mW power, it is the maximum transmitter power module under the same voltage on the market. The data port of the module can be directly connected to the microcontroller, making wireless product development and production easier.
SRX882 is an additional STX882/STX888 module with micro power and strong driving power It is a super metal receptor with The data port of the module can be directly connected to the microcontroller, making wireless product development and production easier.
Features:
- Frequency Range : 433 MHz.
- ASK/OOK modulation mode.
- Super power anti-interference.
- Low power sleep less than 1μA.
- Low self-radiation.
- Small size.
- Frequency stability and reliability.
- Various international test standards.
- Antenna dimensions: 36 x 5.5 mm (HxD).
SRX882 Receiver:
- Supply Voltage: 2.4 - 5 .5V.
- Operating Temperature Range: -30°c ~ 85°c.
- Delay time: 20ms @ 315MHz, 9ms @ 433MHz.
- Consumption: 2.5mA @ 315MHz, 2.8mA @ 433MHz.
- Frequency Range: 315MHz-433.92MHz.
- Sensitivity: -110 dBm @ 1.2Kbps.
- Air Speed : 0.1-9.6 Kbps.
- Receiving bandwidth: 200 KHz.
- Dimension (mm): 35 x 10.5 x 6.
- Weight (gr ): 2.
