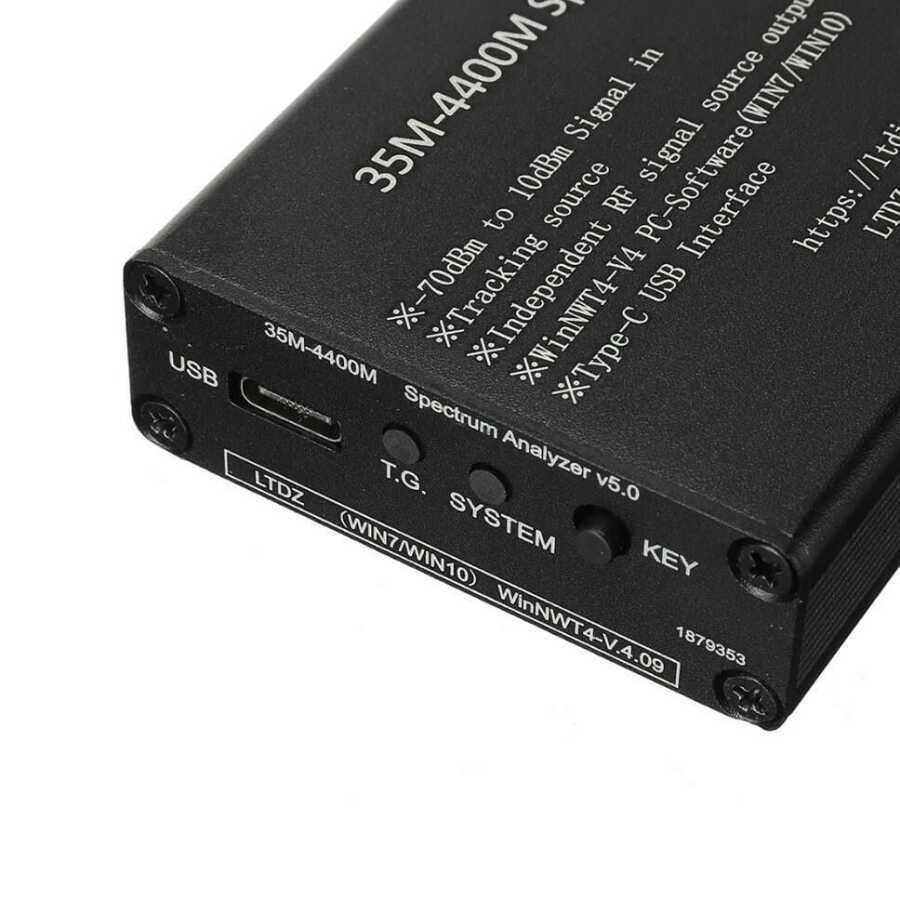

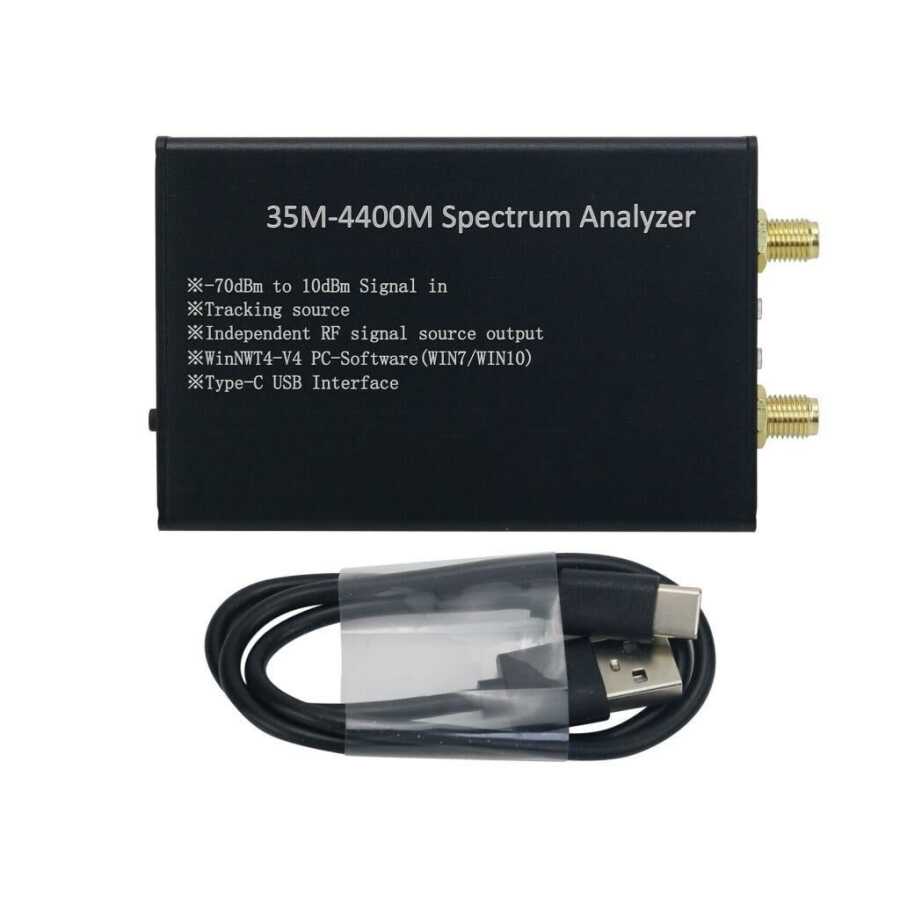

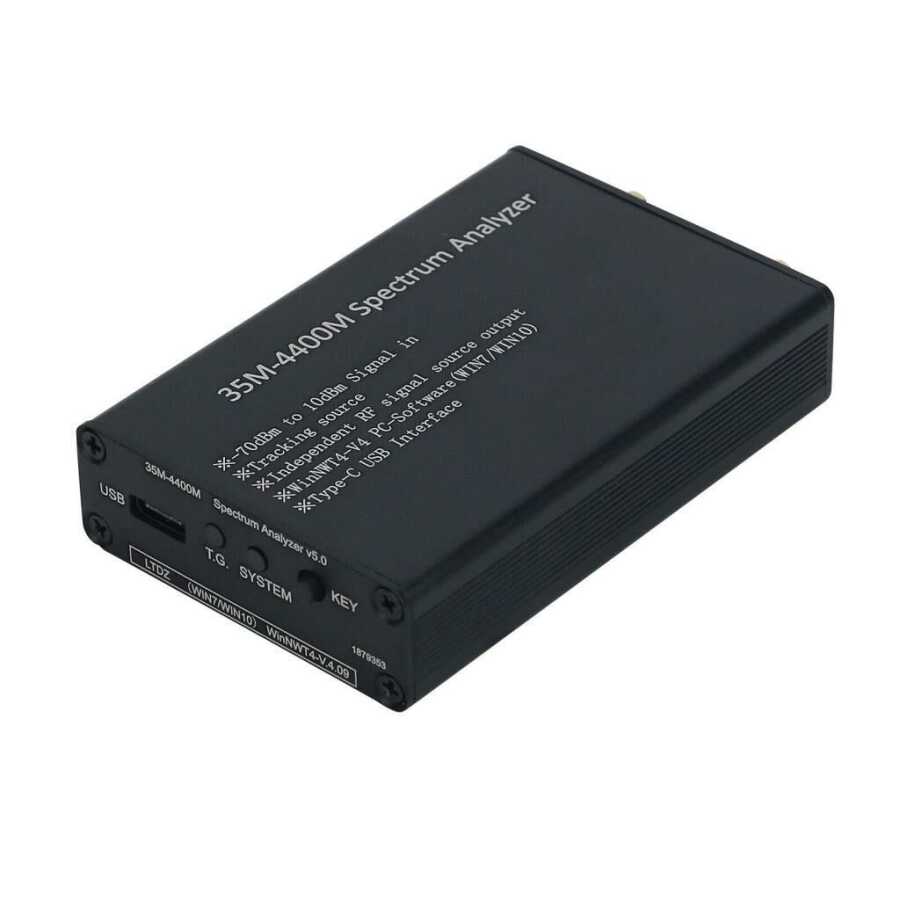

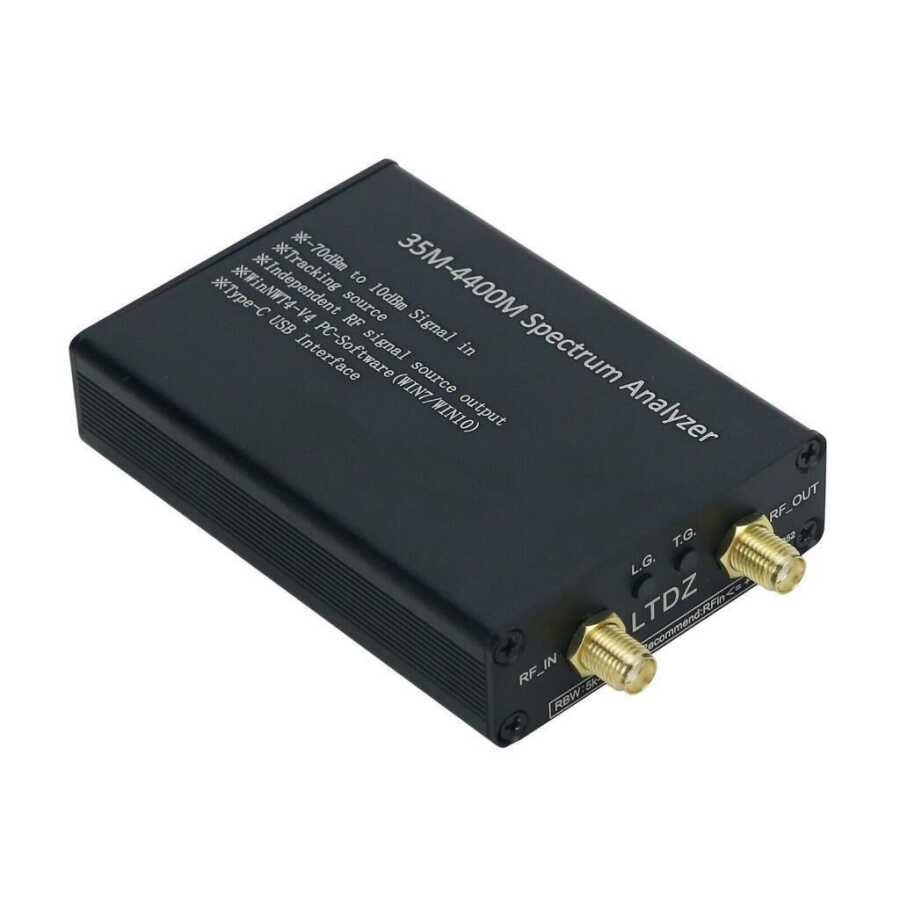

35-4400MHz Spectrum Analyzer Signal Monitoring Source Module
35MHz-4.4GHz signal source analysis range, can analyze and display simple spectrum. Configure the tracking source TG, which can accurately track the tuning frequency of the spectrum analyzer and be used as a simple scalar network analysis. Winnwt4.0 PC terminal software control, support WinXP, Win7, Win10 etc. Use for. The process is simple and easy to use, just follow the instructions to complete the analysis and retrieve the data.
Specifications
Standby current: less than or equal to 100mA
Scanning current: less than or equal to 350mA
Scanning bandwidth: 35mHz---4400mHz
Turn on monitoring source output bandwidth 35mhz---3000mhz
Scan step: 35~68.75mHz/125Hz, 68.75~137.5mHz/250Hz, 137.5~275mHz/500Hz, 275 greater than or equal to ~550mHz/1kHz
550~1100mHz/2kHz, 1100~2200mHz/4kHz, 2200~4400mHz/8kHz,
Sweep rate: up to 800 dots/sec greater than or equal to
Scan dynamic log rate: greater than 50dB
Input detection: less than or equal to 10dBm
Background: approximately -60dBm equals
Software used on the computer side: NWT4.11.09 version
Computer operating system: winxp, win7, win10
Material: metal
Size: 83x55x19mm
