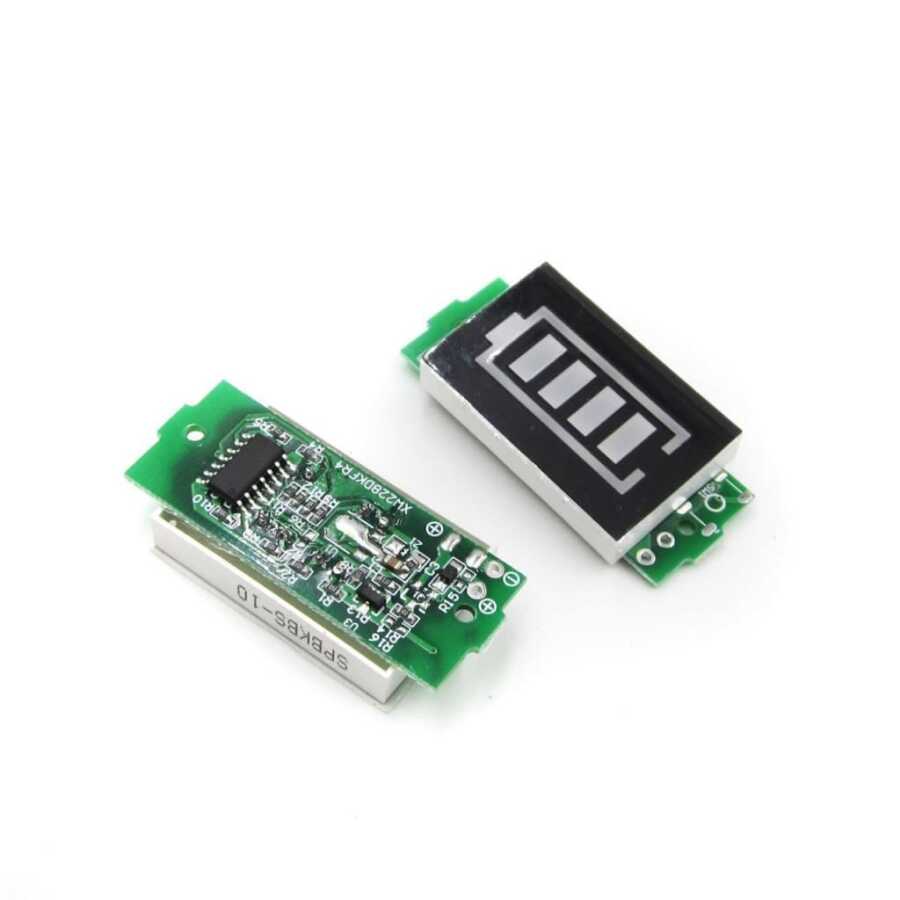

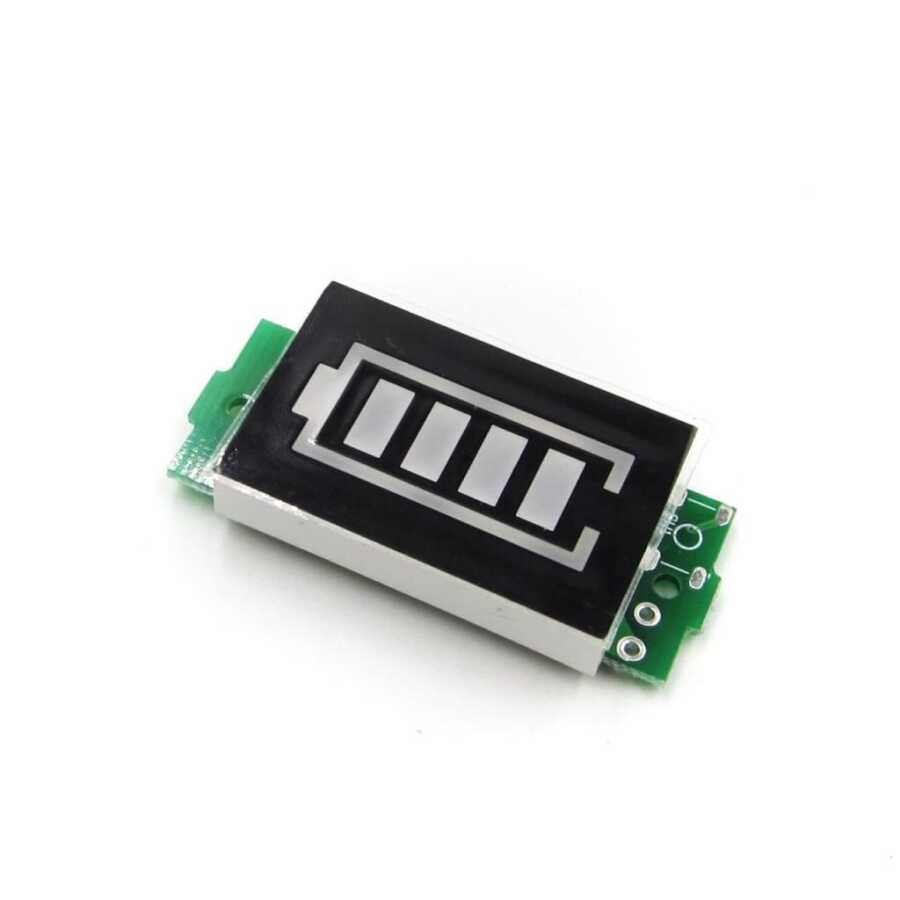

4S LiPo Battery Capacity Indicator
This lipo battery capacity indicator allows you to instantly see the status of your battery. Compatible with 14.8V 4S lipo batteries.

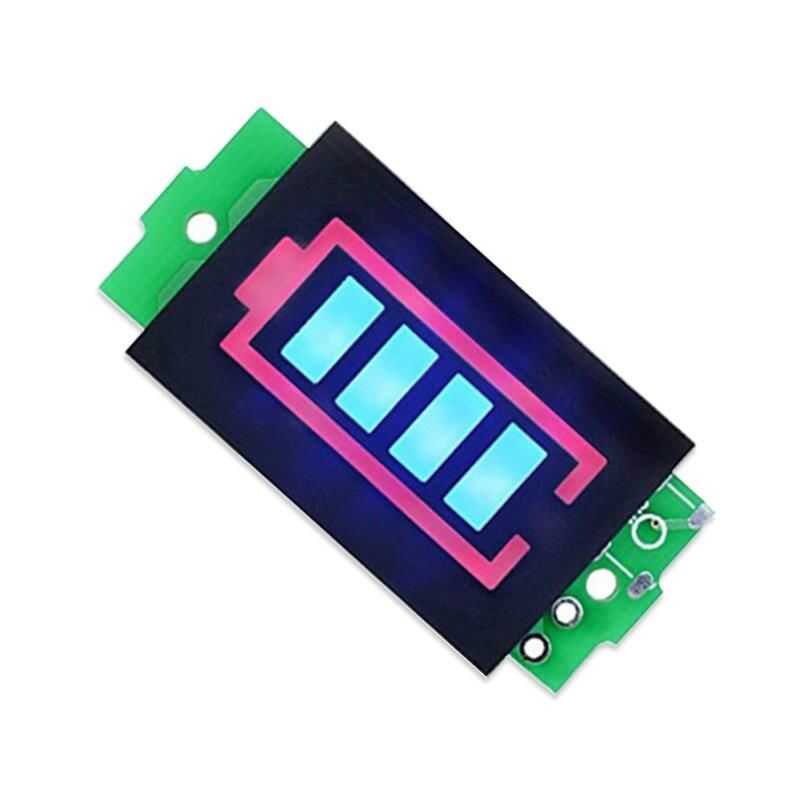

Display Battery Indicator:
- Only the red battery frame lights up under 13.2V.
- 1 bar lights up in the range of 13.2V – 14.0V.
- In the range of 14.0V – 14.8V 2 bars light up.
- 3 bars light up between 14.8V – 15.6V
- 4 bars light above 15.6V.
Connection:
The black cable is connected to the "-" end.
The red cable is connected to the "+" end.
It will display the battery level after connecting the positive and negative terminals of the test panel to the positive and negative side of the tested battery.
Technical Specifications
- Compatible with 14.8V 4S lipo batteries
- Dimensions: 45mm x 20mm x 8mm
