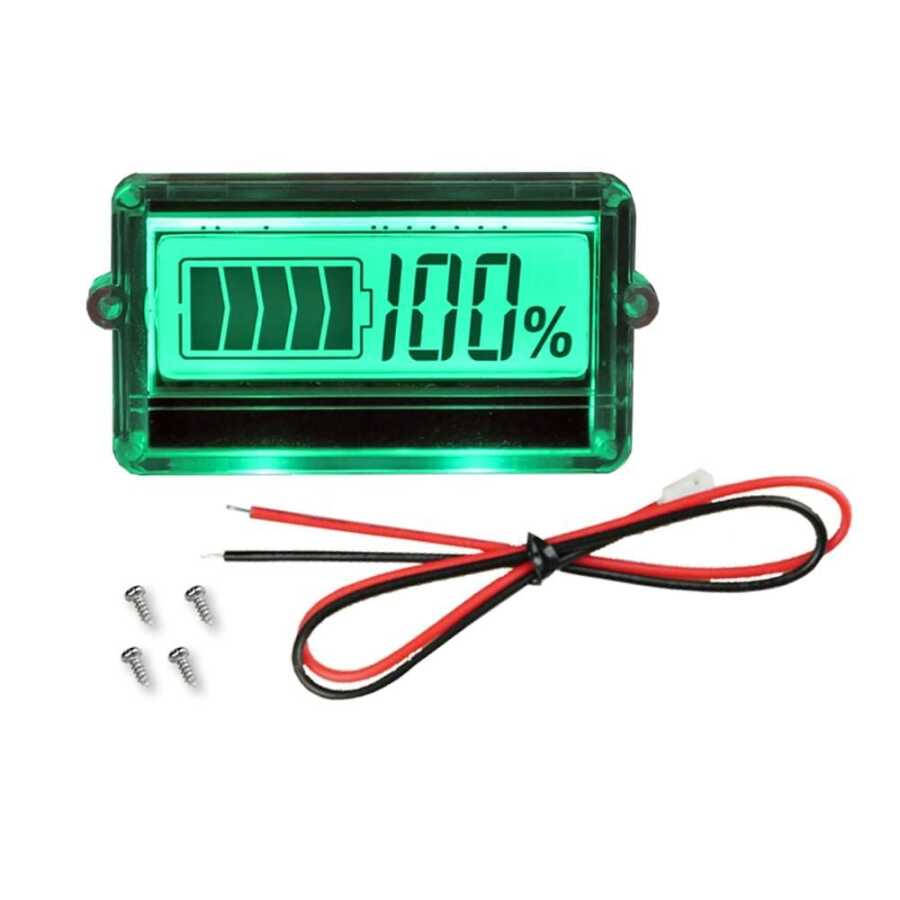

TH01 8-63V Lithium Battery / Battery Capacity Indicator

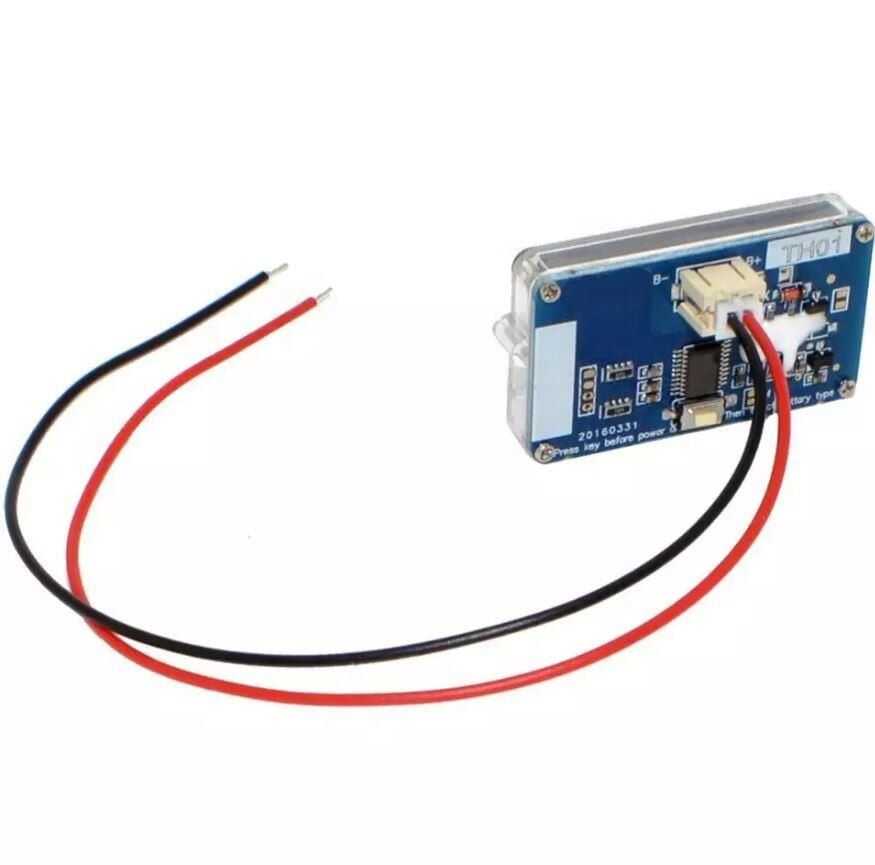

It is a Lipo battery, Li-ion battery, Battery capacity indicator. You can check the capacity of 1S-15S batteries, 12-48V (1-4P) batteries, 1F-19F LiFePO4 batteries. Simply connect the + and - terminals of your product to the + and - terminals of the socket on the back of the product. Then, you can choose your battery type and cell number with the button on the circuit. To select the battery type, we press and hold the button before making the connection and make the connection while it is pressed. After the battery type appears on the screen, you can select the battery you want by pressing the button. When you disconnect and reconnect the connection, it will make the measurement at the value you set.
