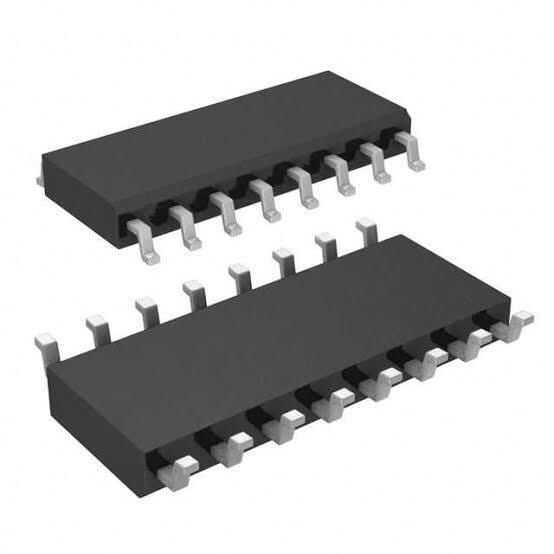

74HC153 SMD Integrated

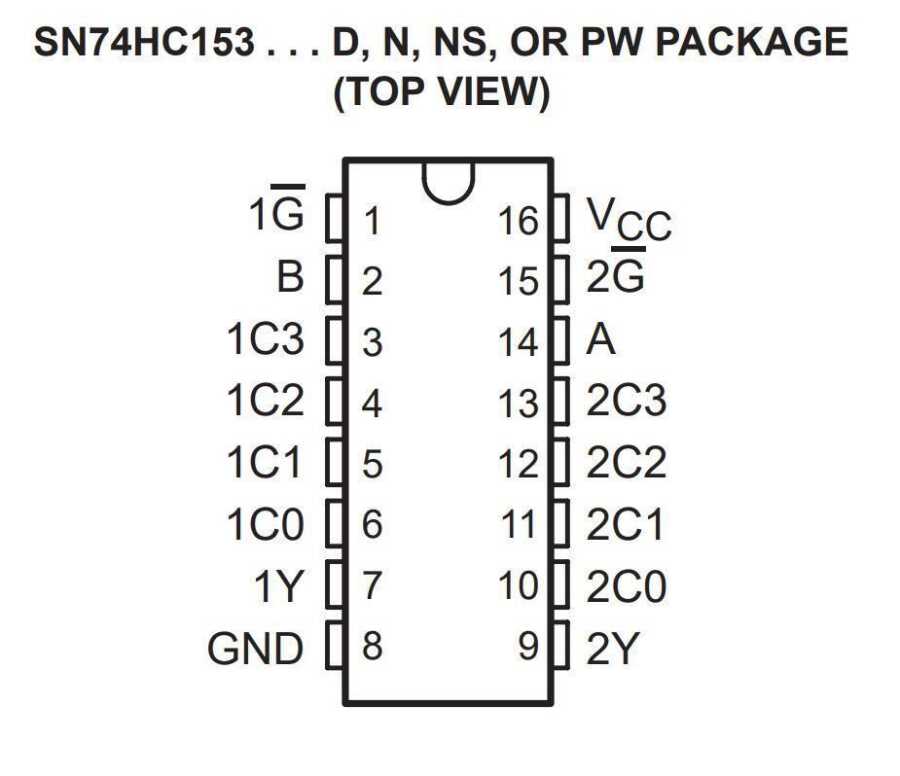

74HC153 is a dual 4-input multiplexer. The device has independent enable inputs (nE) and common data selection inputs (S0 and S1). For each multiplexer, select inputs select one of the four binary inputs and direct it to the multiplexer output (nY). HIGH E forces the corresponding multiplexer outputs LOW. Inputs include clamp diodes. This enables the use of current limiting resistors to interface the inputs to voltages above VCC.
