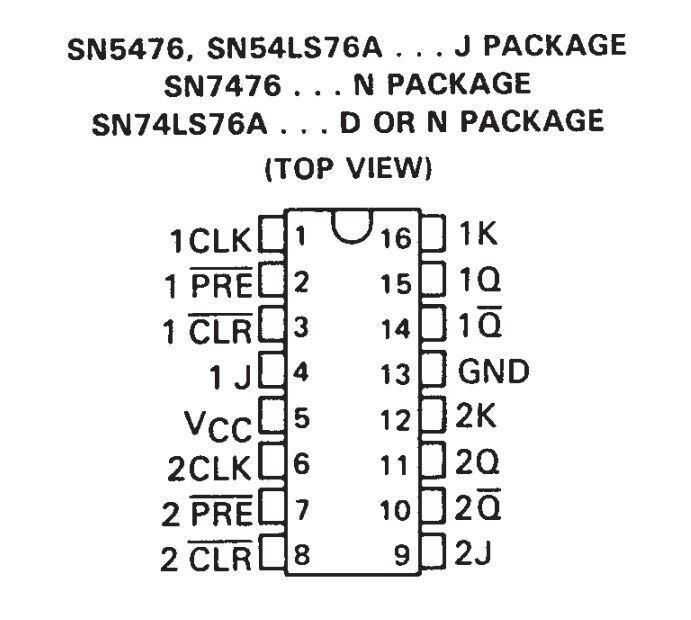

SN74LS76A offers independent J, K, Clock Pulse, Direct Set and Direct Clear inputs. This dual flip-flop is designed so that when the clock is HIGH, inputs are activated and data is accepted. The Logic Level of the J and K inputs will operate according to the Fact Table as long as minimum setup times are observed. Input data is transferred to the outputs at HIGH-LOW clock transitions.
