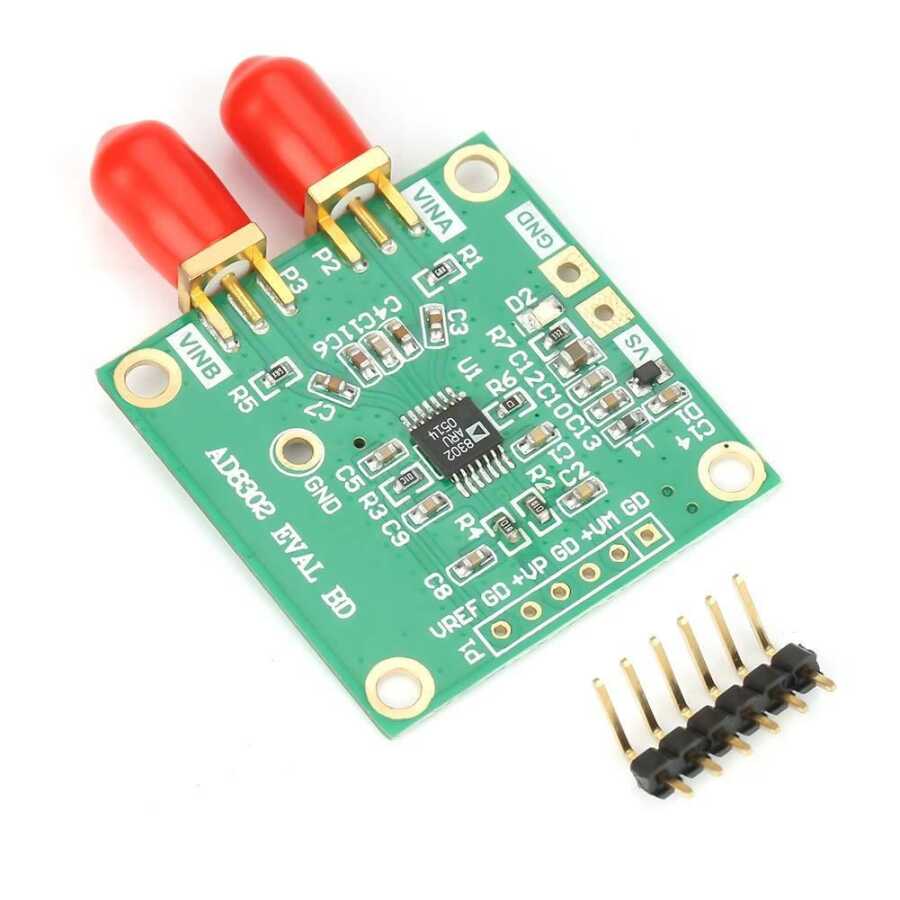

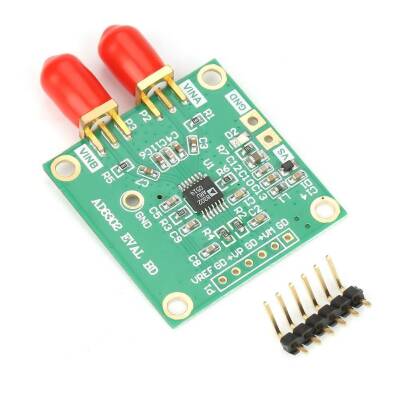

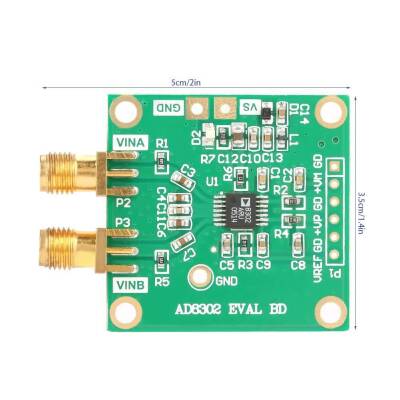

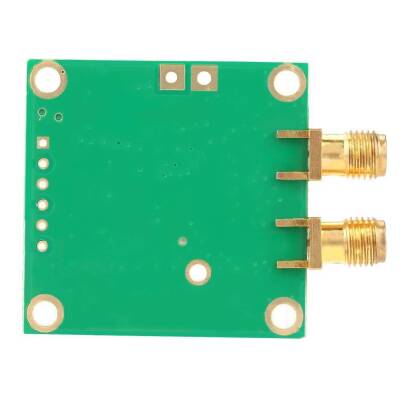

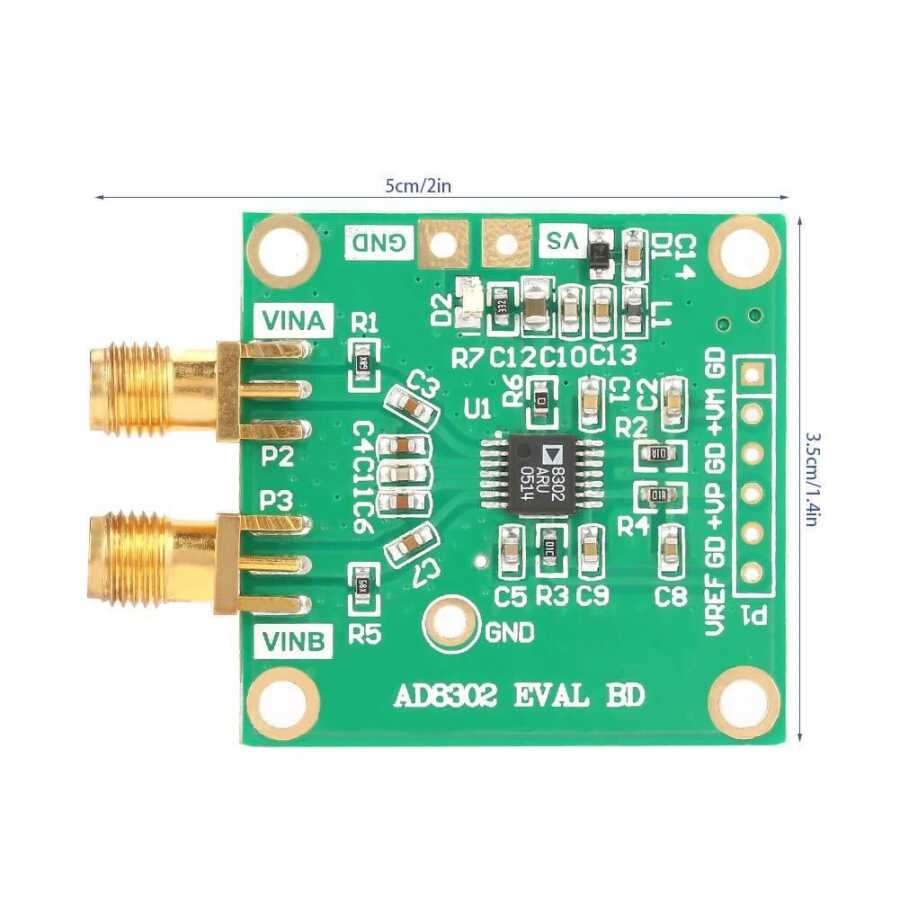

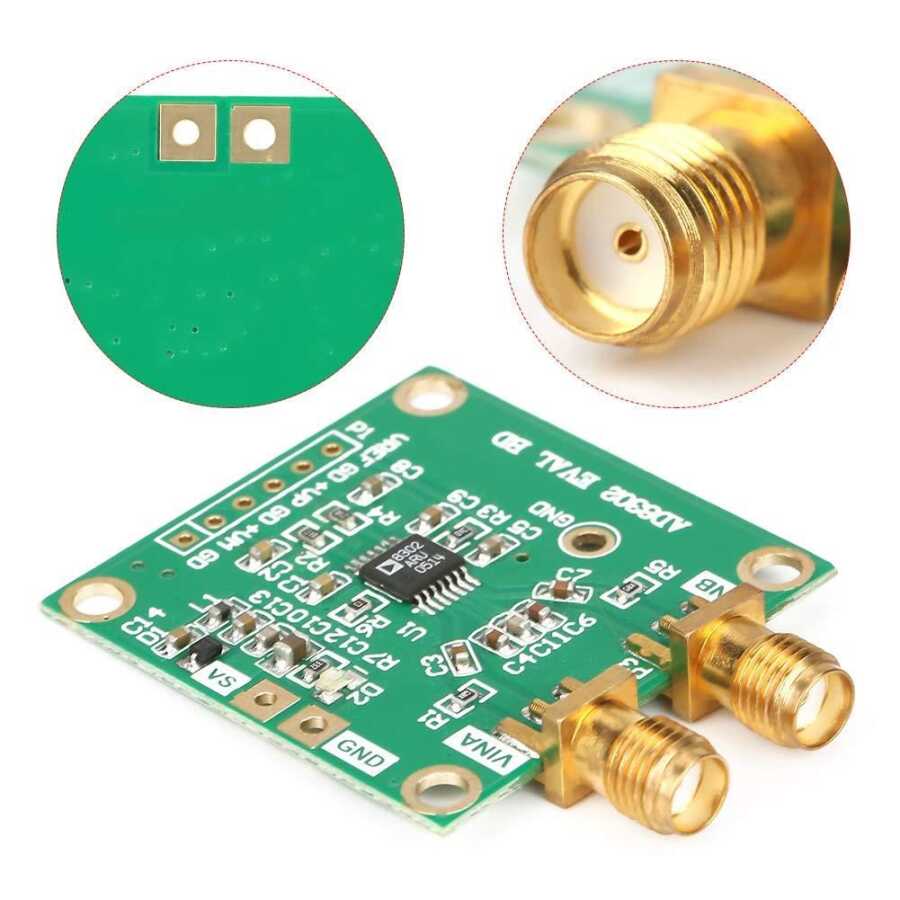

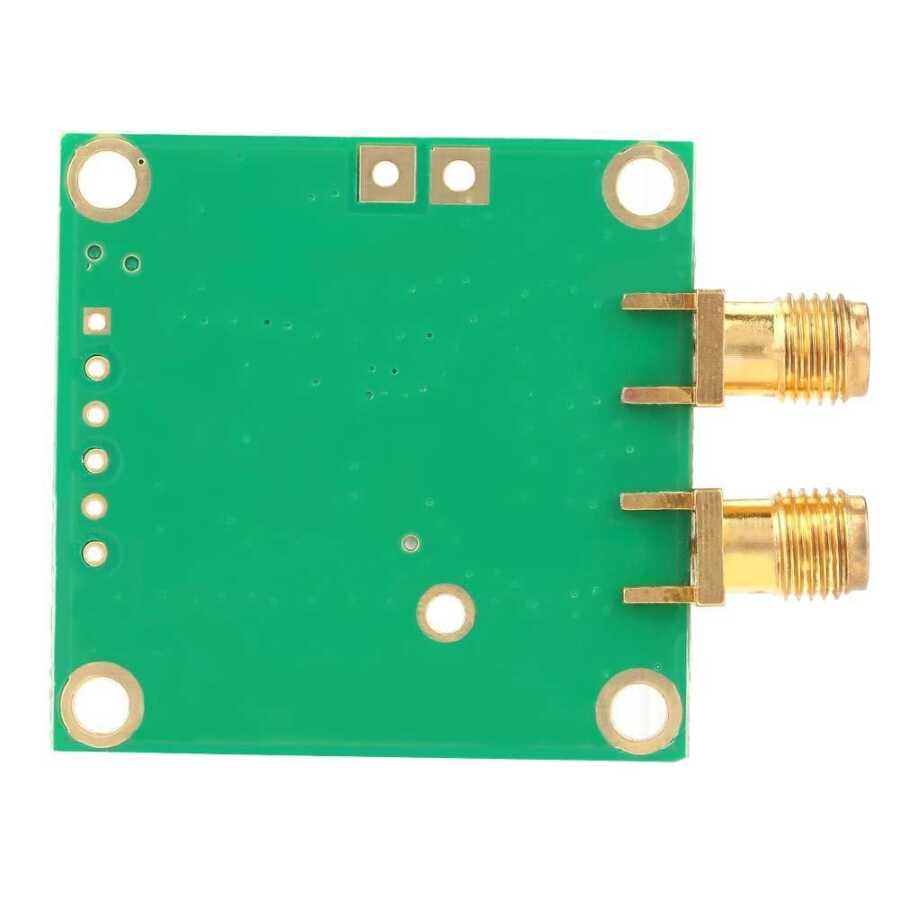

AD8302 RF Signal Generator RF/IF LF-2.7G

AD8302 converts the amplitude between two independent input signals. It is a fully integrated RF IC that measures and phase. The device operates from low frequencies up to 2.7 GHz. The AD8302 includes two precision-matched wideband log amplifiers, a wideband linear multiplier/phase detector, a 1.8V precision voltage reference, and an analog output proportional operation circuit.

The input signal range is -60 dBm to 0dBm (reference impedance 50Ω), with a corresponding dynamic range of 60dB. The AD8302 output provides accurate amplitude measurements in the +/-30dB range with a slope of 30mV/dB; 0 to 180° phase measurement range with 10mV/degree slope.

Technical Specifications

Model: AD8302

Supply Voltages: 3.3v~5V

Input Range: -60 dBm to 0 dBm(50 Ω)

Gain/Loss and Phase Measurement: Max. 2.7 GHz

Reference Voltage Output: 1.8 V

Usage Areas

RF/IF PA Linearization

Precision RF Power Control

Remote System Monitoring and Diagnostics

Return Loss/VSWR Measurements

Log Rate Function for AC Signals
