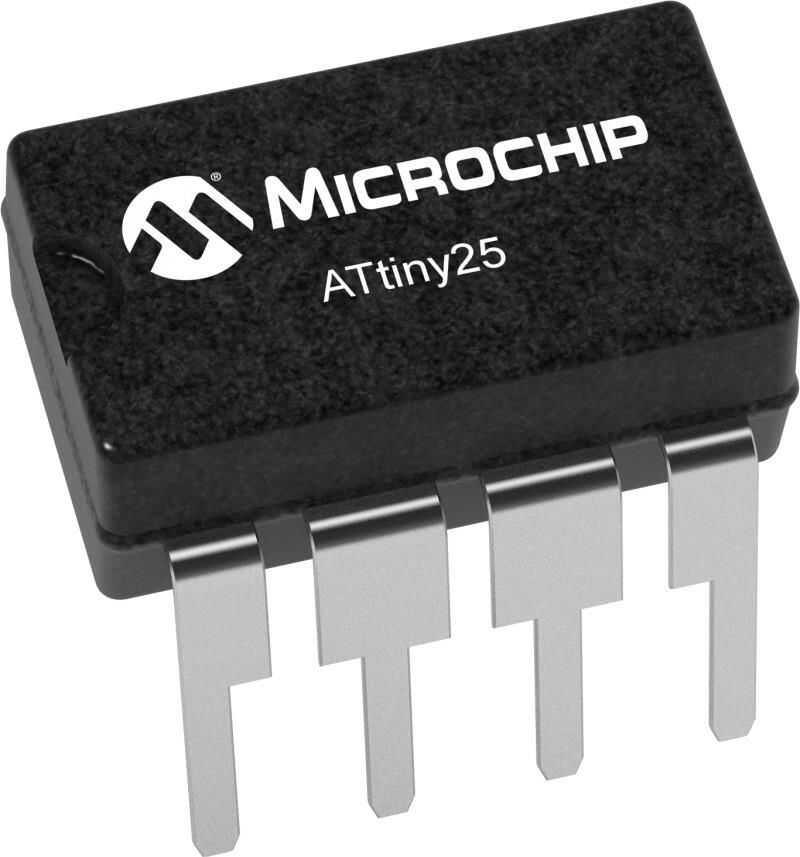

ATTINY25V-10PU DIP-8 10MHz Microcontroller

Ratings & Reviews (0)
Comment
Brand: Atmel
Product Code: KOM.MKD.02.000028
Stokta 10+ ürün
376.64 TL + VAT
VAT Included: 451.97 TL

ATTINY25V-10PU DIP-8 10MHz Microcontroller

High performance Microchip picoPower® AVR® RISC based CMOS 8 bit microcontroller, 2 KB ISP Flash memory, 128B EEPROM, 128B SRAM, six general-purpose I/O lines, 32 general-purpose operating registers, one 8-bit timer/counter with compare modes, one 8-bit high-speed timer/counter, universal serial interface (USI), internal and external interrupts, 4-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator and three software selectable power saving modes. The device operates between 2.7-5.5 volts. Executing powerful instructions in a single clock cycle, the device achieves throughput approaching one MIPS per MHz by balancing power consumption and processor speed.

Technical Specifications

 Product Code  ATTINY25V-10PU
Program Memory Type  Flash
Program Memory Size 2 kB
Bus Width 8-Bit
Max Clock Frequency 10 MHz
Data RAM Size 128 B
I/O Count 6
Timer/Counter 2
 Operating Voltage Range (V) 1.8 - 5.5V

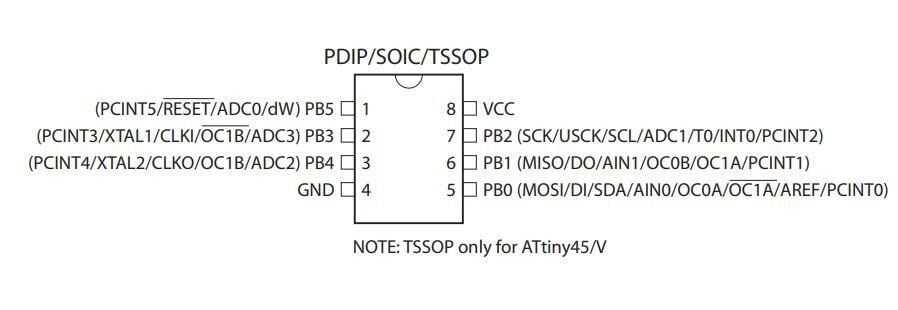

Number of Pins 8

Weight(Kg)
0.02
