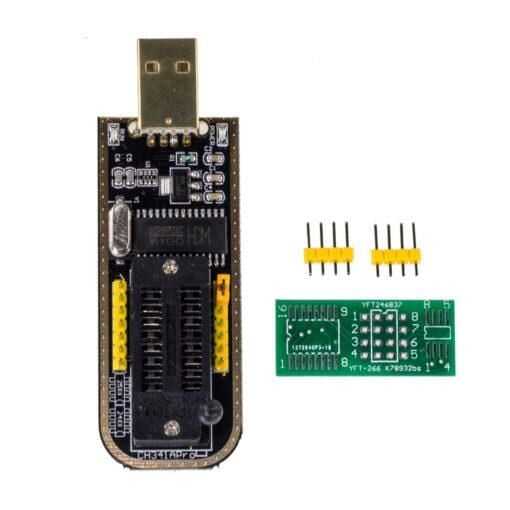

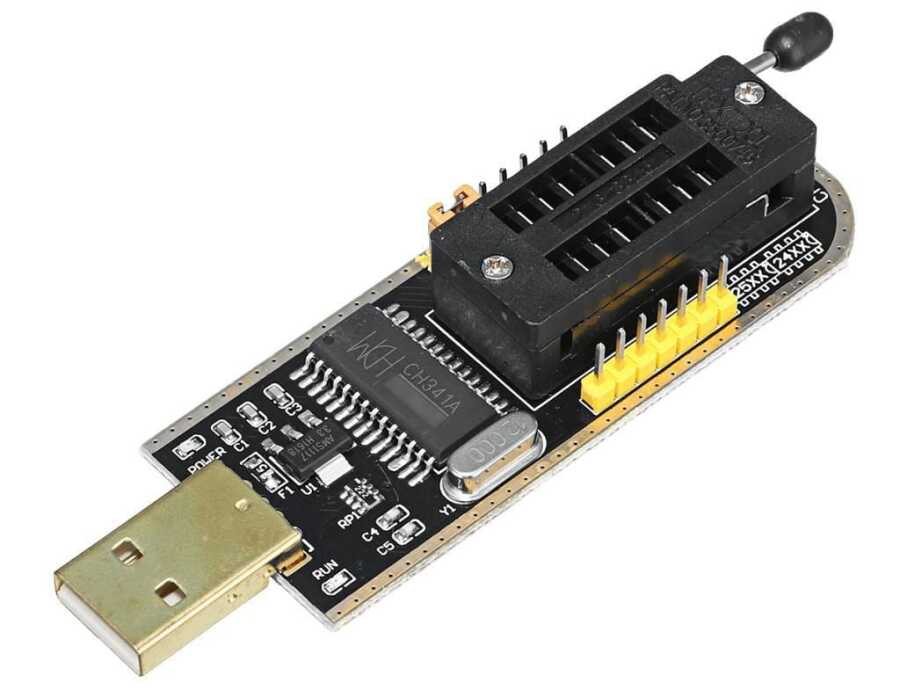

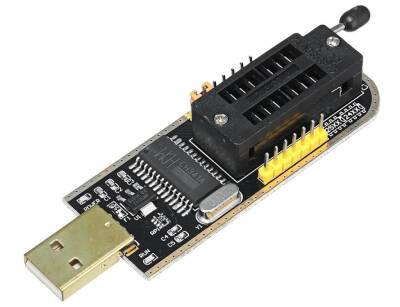

CH341A EEPROM Flash BIOS USB Programmer
CH341A 24 25 Series EEPROM, Flash, Bios Programmer. It automatically recognizes 25 Series integrated circuits, it has a ch341a integrated.
Features:
Converts USB port to TTL serial port.
CH341A integrated circuit is used.
3 user LEDs. Power, Rx, Tx.
There is a standard USB type A male socket.
There are 6-Pin TTL connector output pins. These pins are 5V, VCC, 3.3V, TXD, RXD and GND. With the jumper, the operating voltage is set to 5V or 3.3V via the VCC pin.
Thanks to TTL outputs, it easily communicates with an MCU.
Windows 98SE, 2000, XP, Vista, Window7, Windows10 (32/64 Bit)
Dimensions 55 mm x 16 mm
Simulation interface, you can upgrade serial peripherals
Supports common MODE contact signal
Supports IRDA SIR infrared communication
Provide RS232, RS485, RS422 interface
Supported Chips
25 Series Support List :
AMIC:
A25L512 A25L05P A25L10P A25L010 A25L020
A25L20P A25L40P A25L040 A25L080 A25L80P
A25L016 A25L16P A25L032
ATMEL:
AT25F512 AT25F512B AT25F512A AT25FS010 AT25F1024
AT25F1024A AT25F2048 AT25DF021 AT25F4096 AT25FS040
AT25DF041A AT26F004 AT26DF 081A AT25DF161 AT26DF161
AT26DF161A AT25DF321A AT26DF321 AT25DF321 AT25DF641
COMMON:
25X005 25X05 25X10 25X20 25X40
25X80 25X16 25X32 25X64 25X128
25X256 25X 512 25X1024 25X2048
EON:
EN25F05 EN25P05 EN25LF05 EN25F10 EN25LF10
EN25D10 EN25P10 EN25F20 EN25D20 EN25LF20
EN25F40 EN25D40 EN25LF40 EN25Q80 EN25D80
EN25F80 EN25P80 EN25T80 EN25B16T EN25T16
EN25B16 EN25D16 EN25F16 EN25Q16 EN25P32
EN25Q32 EN25F32 EN25B32 EN25B32T EN25Q64
EN25B64 EN25F64 EN25B 64T EN25F128 EN25Q128
ES:
ES25P10 ES25P20 ES25M40A ES25M40 ES25P40
ES25M80 ES25M80A ES25P80 ES25M16 ES25M16A
ES25P16 ES25P32
ESMT:
F25L04UA F25L004A F25L08PA F25L008A F25L016A
F25L16PA F25L32QA F25L32PA
GIGADEVICE:
GD25Q512 GD25Q10 GD25Q20 GD25F40 GD25D4 0
GD25Q80 GD25D80 GD25T80 GD25F80 GD25Q16
GD25Q32 GD25Q64 GD25Q128
KH:
KH25L8036D
MXIC:
MX25V512 MX25L512 MX25L1005 MX25L2005 MX25L80 35
MX25L4005A MX25V4035 MX25V4005 MX25V8005 MX25L8005
7D MX25L3225D MX25L3205D MX25L3206E MX25L6405D
MX25L6455E MX25L6408D MX25L6406E MX25L6445E MX25L12805D
MX25L12845E
NEXFLASH:
NX25P10 NX25P20 NX25P40 NX25P80 NX25P16
NX25P32
ST:
M25P05A M25PE10 M25P10A M25P20 M25PE20
M25PE40 M25P40 M25PE80 M25P80 M25PX80
M25PX16 M25P16 M25PE16 M25P32 M25PE32
M25PX32 M25PX64 M25P64 M25PE64 M25P128
24 Series Support List:
ATMEL:
AT24C01B AT24C01 AT24C01A AT24C02 AT24C02A
AT24C02B AT24C04B AT24C04 AT24C04A AT24C08A
AT24C08B AT24C08 AT24C16 AT24C16A AT24C16B
AT24C32B AT24C32A AT24C32 AT24C64 AT24C64A
AT24C64B AT24C128 AT24C128A AT24C128B AT24C256B
AT24C256 AT24C256A AT24C512B AT24C512A AT24C512
AT24C1024 AT24C1024A AT24C1024B
MICROCHIP:
MIC24LC014 MIC24AA01 MIC24AA014 MIC24LC01B MIC24LC02B
MIC24AA02 MIC24C02C MIC24AA025 MIC24 AA04 MIC24LC04B
MIC24LC024 MIC24AA024 MIC24LC025 MIC24LC08B MIC24AA08< /div>
MIC24LC16B MIC24AA16 MIC24LC32 MIC24AA32 MIC24LC64
MIC24FC64 MIC24AA64 MIC24FC128 MIC24AA128 MIC24LC128
MIC24AA256 MIC24LC256 MIC24FC256 MIC24 AA512 MIC24LC512
MIC24FC512 MIC24AA1024
