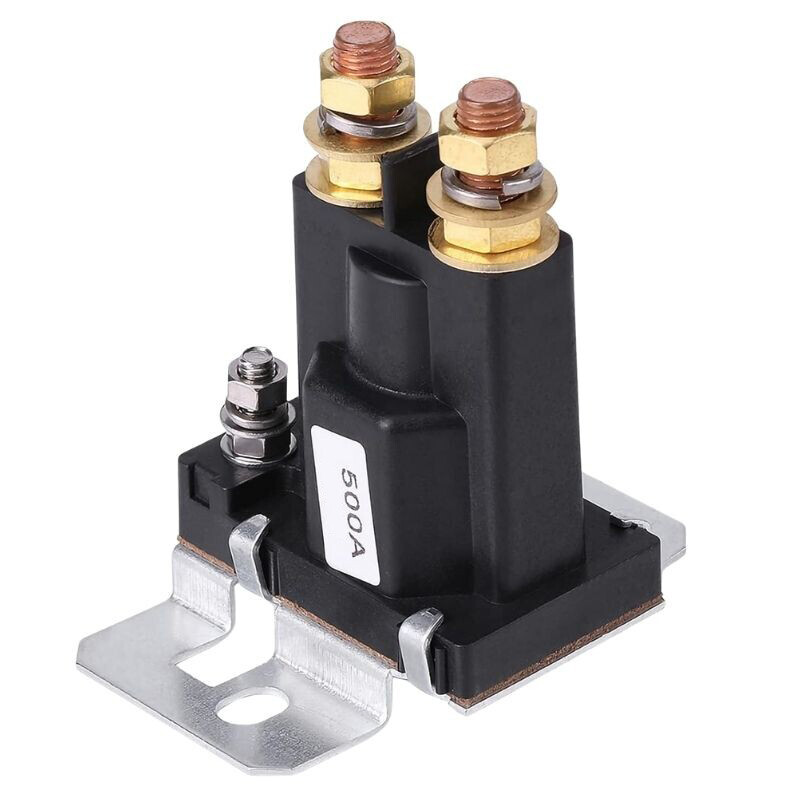

DC 12V 500A High Current Auto Starter Relay 4 Pin SPST - Long Time

DC 12V 500A High Current Auto Starter Relay 4 Pin SPST - Long Time

DC 12V 500A High Current Auto Starter Relay 4 Pin SPST - Long Time, usually used in automobiles, has a switching capacity of up to 500 amps for auto starters (start-stop).

Suitable for long-term use.

Features

• Coil rated voltage: 12VDC
• Contact Type: SPST
• Maximum switching current: 500A @ 12VDC
• Contact switching voltage: 7.8VDC
• Coil power consumption: 1.8W
• Pin Diameter: 8mm
• Weight: 235g
• Dimensions: 80x56x85mm

Wiring
