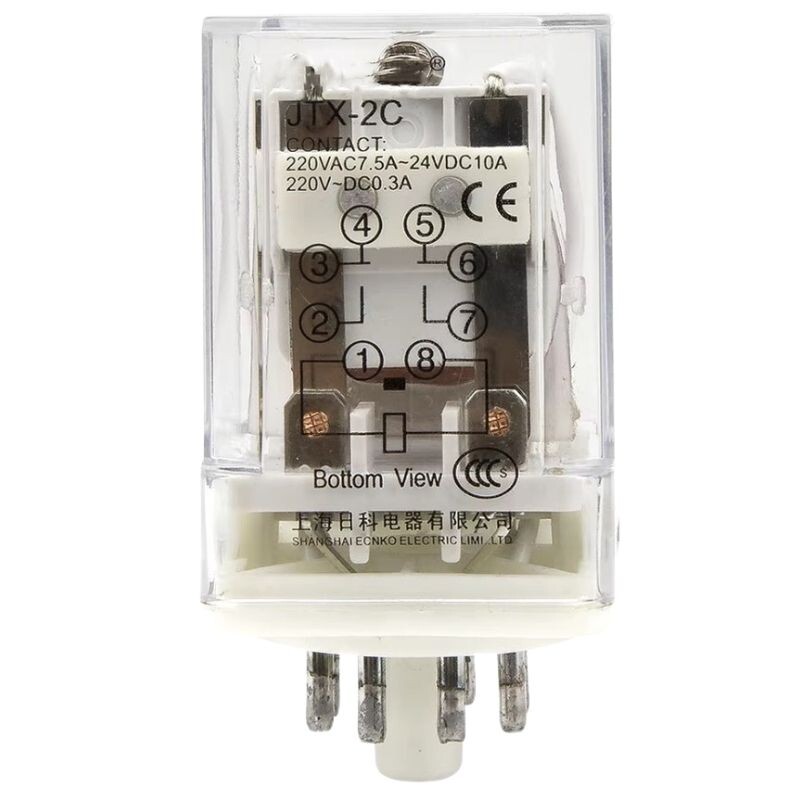

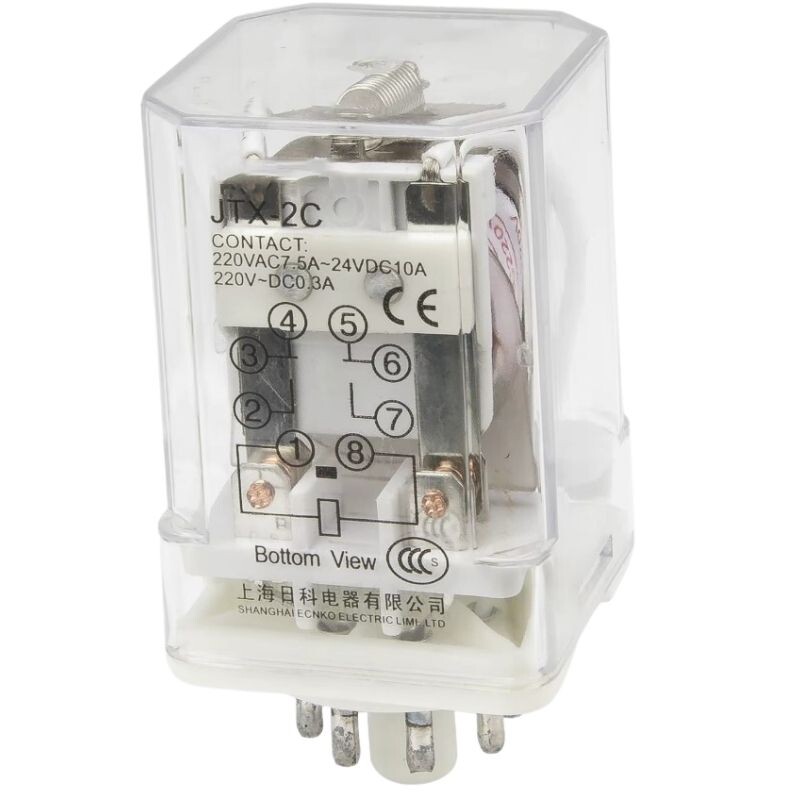

JTX-2C DC 24V 8 Pin 2NO + 2NC Electromagnetic Relay
JTX-2C DC 24V 8 Pin 2NO + 2NC Electromagnetic Relay. It can automatically adjust and protect the electric circuit. It is used in remote control, communication, automatic control system, electronic equipment, etc.
The product does not include a relay socket. You can find the appropriate relay socket
here.
Features
- Model: JTX-2C
- Type: Electromagnetic Relay
- Coil Voltage: 24 VDC
- Coil Power: 2.5Wac, 1.5Wdc
- Contact Capacity: 7.5A 250VAC / 10A 24VDC
- Contact Type: 2NO + 2NC
- Contact Resistance: 50mΩ
- Insulation Resistance: 100MΩ

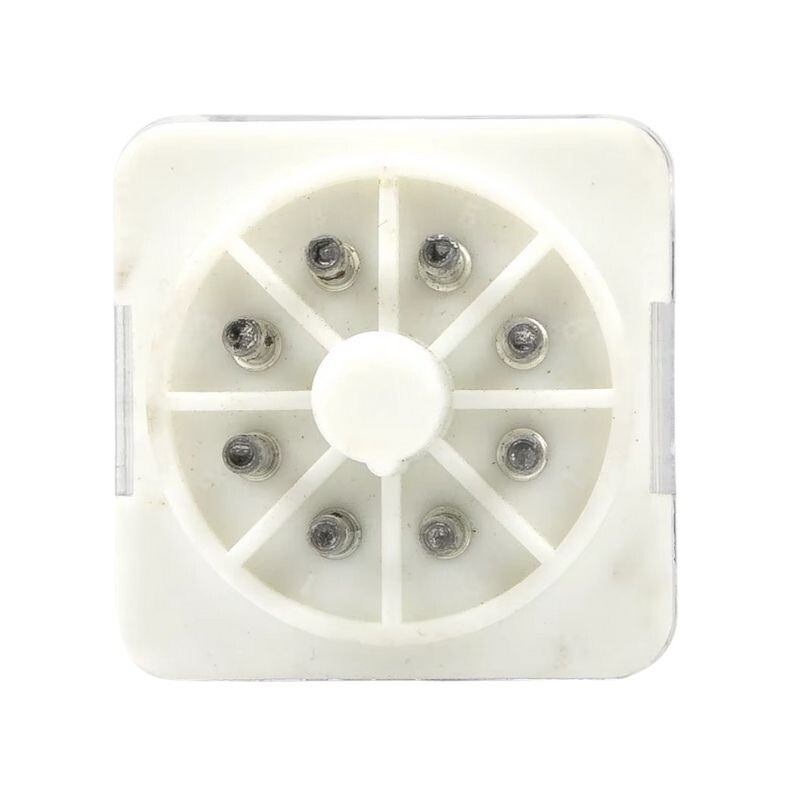

- Pin Count: 8
- Pin Diameter: 2.5mm
- Cover Material: Transparent Plastic
- Dimensions (Pin Not Included): 34.5x34.5x53mm
