DC 24V 500A High Current Auto Starter Relay 4 Pin SPST - Long Time

DC 24V 500A High Current Auto Starter Relay 4 Pin SPST - Long Time

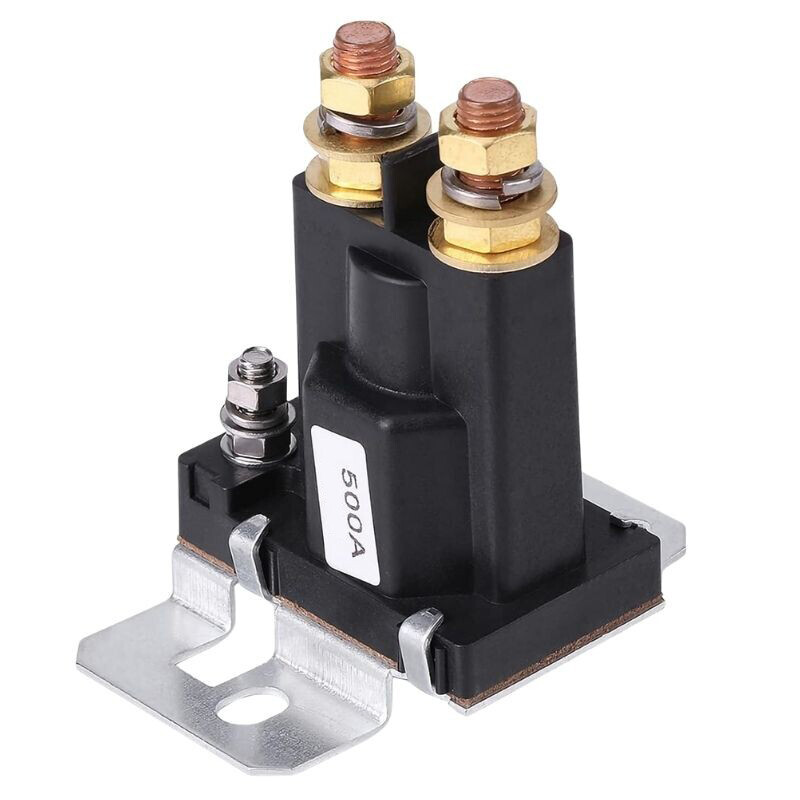

DC 24V 500A High Current Auto Starter Relay 4 Pin SPST - Long Time is an auto starter (start-stop) relay generally used in heavy vehicles, forklifts, etc. with dual batteries (24V). It has a switching capacity of up to 500 amps.

Suitable for long-term use.

Features

• Coil nominal voltage: 24VDC
• Contact Type: SPST
• Maximum switching current: 500A @ 24VDC
• Contact switching voltage: 7.8VDC
• Coil power consumption: 1.8W
• Pin Diameter: 8mm
• Weight: 235g
• Dimensions: 80x56x85mm

Wiring
