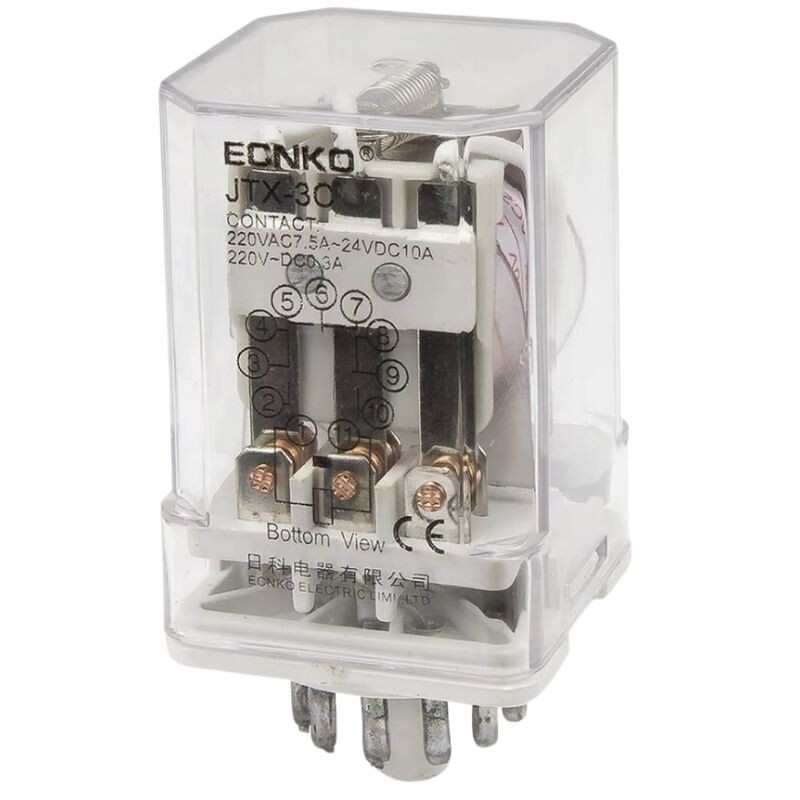

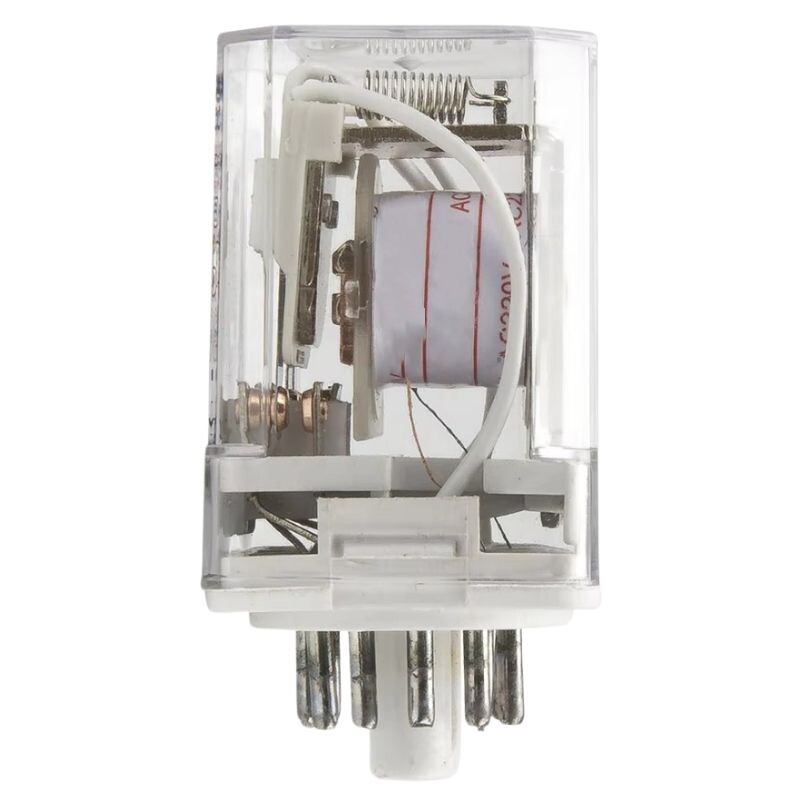

JTX-3C DC 24V 11 Pin 3NO + 3NC Electromagnetic Relay
JTX-3C DC 24V 11 Pin 3NO + 3NC Electromagnetic Relay. It can automatically adjust and protect the electric circuit. Remote control, communication, automatic control system, electronic equipment, etc. places.
Features
- Model: JTX-3C
- Type: Electromagnetic Relay
- Coil Voltage: 24 VDC
- Coil Power: 2.5Wac, 1.5Wdc
- Contact Capacity: 7.5A 250VAC / 10A 24VDC
- Contact Type: 3NO + 3NC
- Contact Resistance: 50mΩ
- Insulation Resistance: 100MΩ

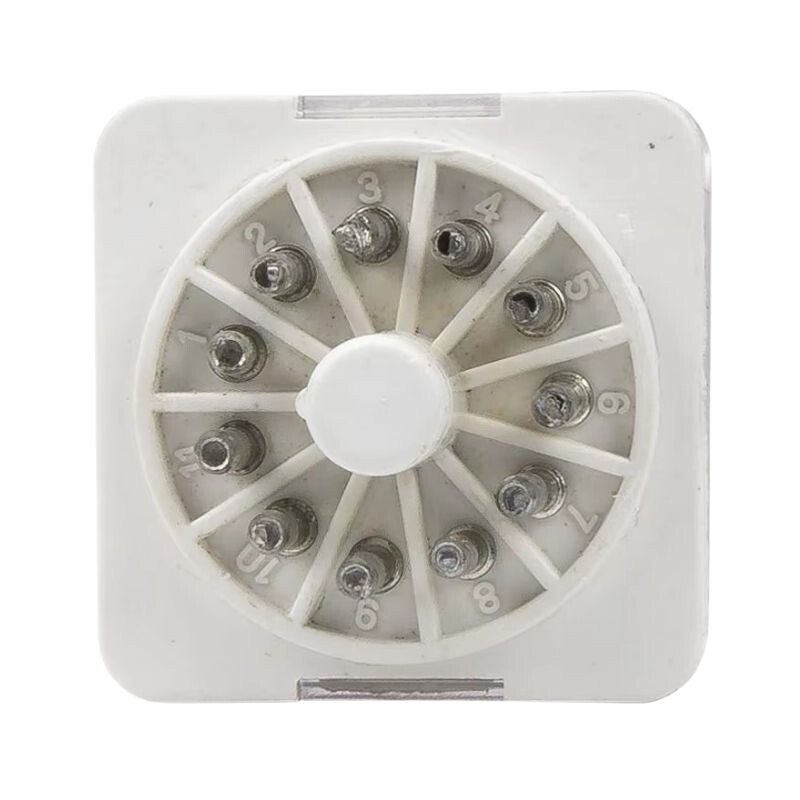

- Pin Number: 11
- Pin Diameter: 2.5mm
- Cover Material: Transparent Plastic
- Dimensions (Pin Not Included): 34.5x34.5x53mm
