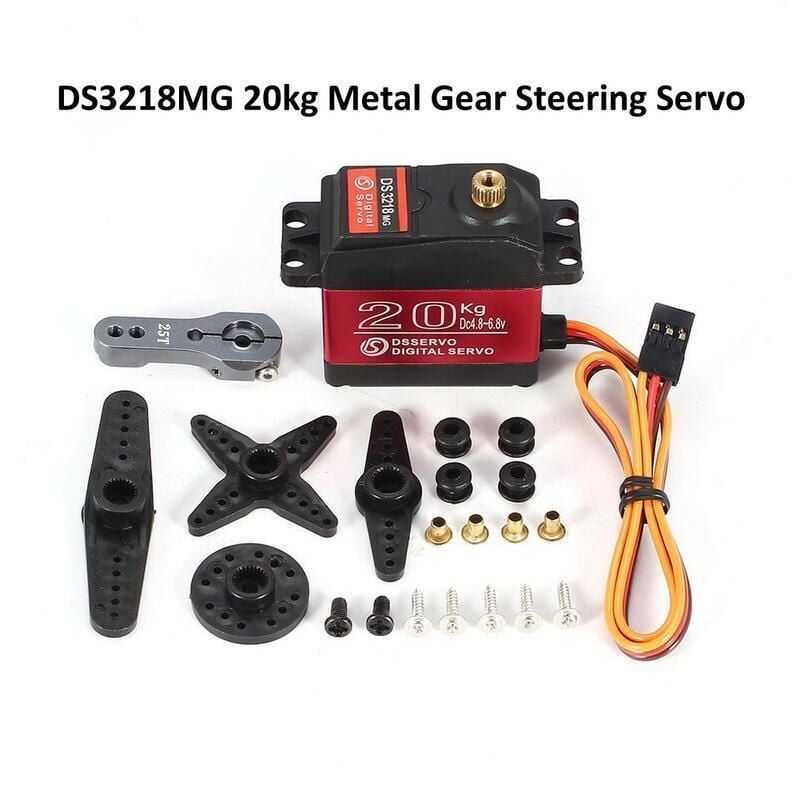

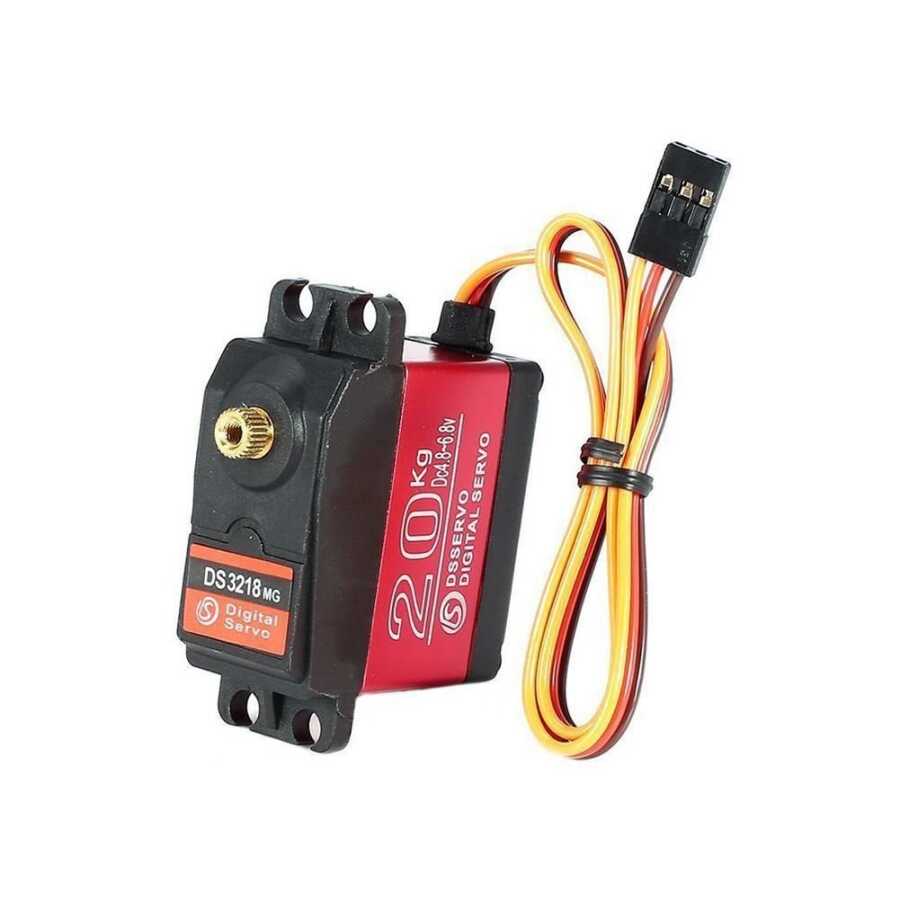

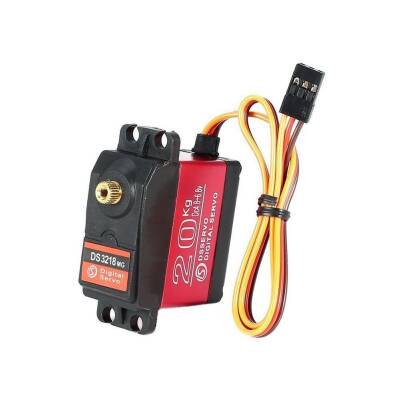

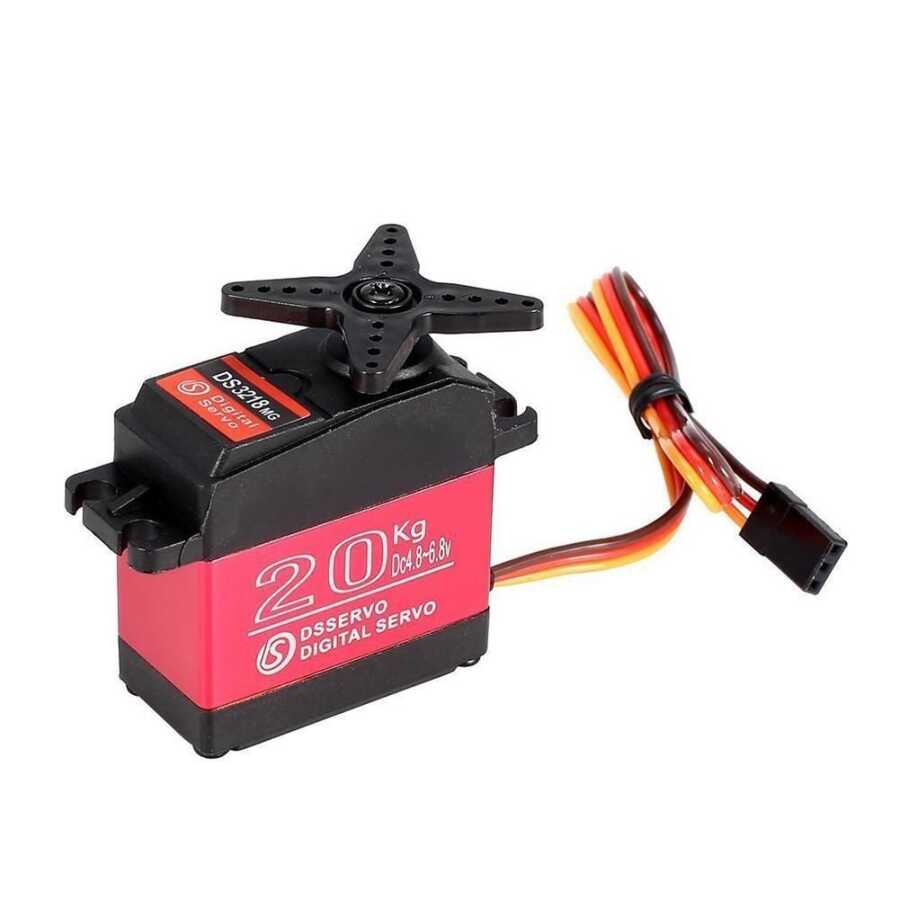

DS3218MG 20KG Waterproof Digital Servo Motor



DS3218MG is a digital servo motor with high torque and waterproof feature. It has a 180 degree movement capacity. Its 20kg-cm torque value, high precision and being waterproof are the main reasons for its preference. You can use it with peace of mind in various robotic and electronic projects.



• Brand: DSSERVO
• Model: DS3218MG
• Operating Voltage: 4.8V ~ 6.8Volt
• Operating Speed ​​(5V): 0.16sec / 60°, no-load
• Operating Speed ​​( 6.8V): 0.14sec / 60° no load
• Stall Torque (5V): 19 kg/cm (263.8oz/in)
• Stall Torque (6.8V): 21.5 kg/ cm (298.5 oz/in)
• Operating Frequency: 1520μs / 333hz
• Weight: 60g
• Dimension: 40.5 * 40 * 20mm
