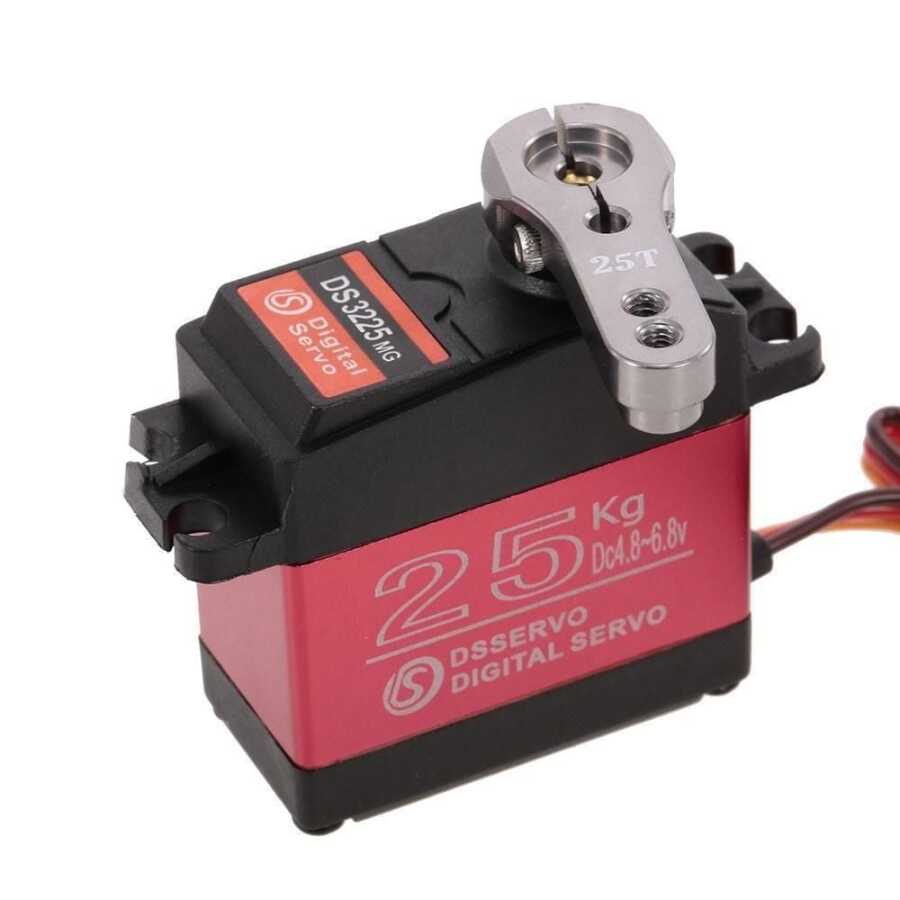

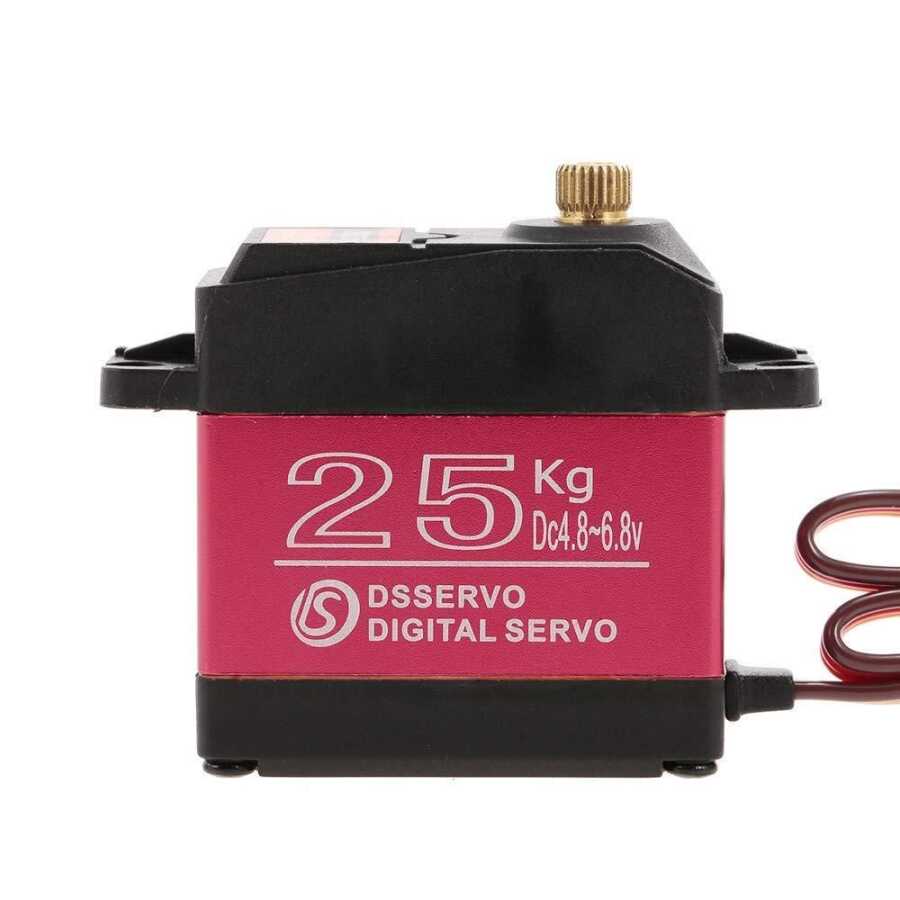

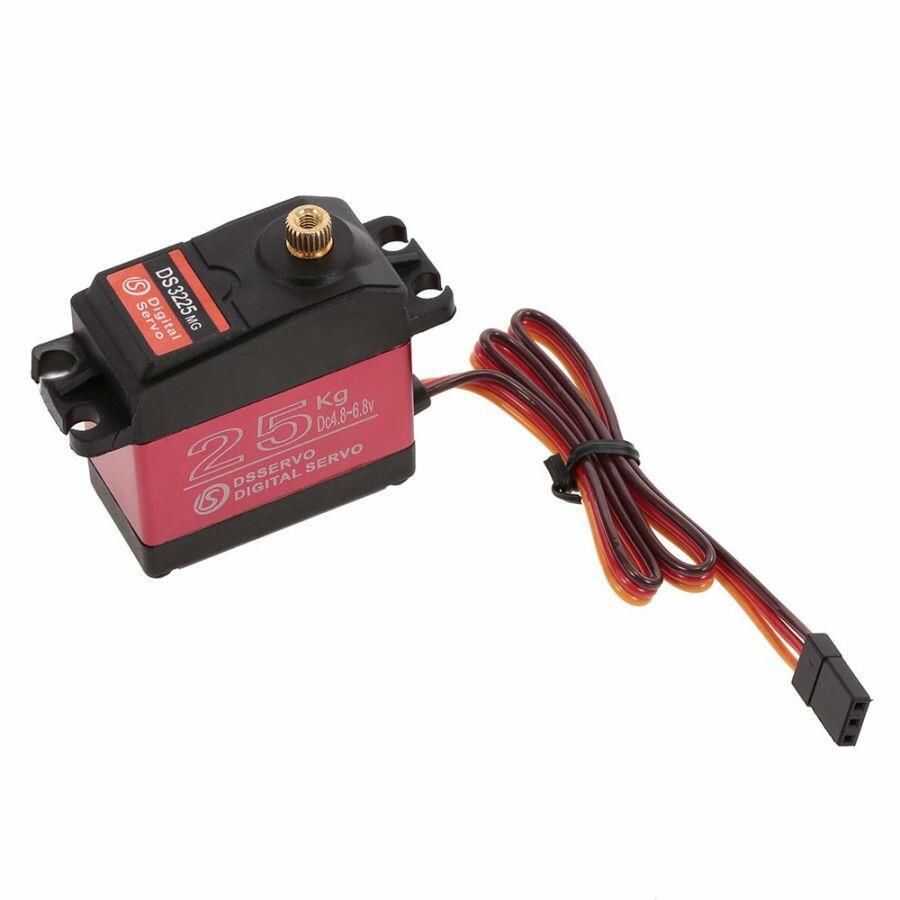

DS3225 25KG Waterproof Digital Servo Motor



DS3225 is a digital servo motor with high torque and waterproof feature. It has a 180 degree movement capacity. Its 25kg-cm torque value, high precision and being waterproof are the main reasons for its preference. You can use it with peace of mind in various robotic and electronic projects.



• Brand: DSSERVO
• Model: DS3225
• Operating Voltage: 4.8V ~ 6.8Volt
• Operating Speed ​​(5V): 0.16sec / 60°, no-load
• Operating Speed ​​( 6.8V): 0.14sec / 60 ° no load
• Stoll Torque(5.0V): 21kg / cm
• Stop Torque(6.8 V): 25 kg / cm
• Operating Frequency: 1520μs / 333hz
• Weight: 67g
• Dimension: 40.5 * 40 * 20mm
