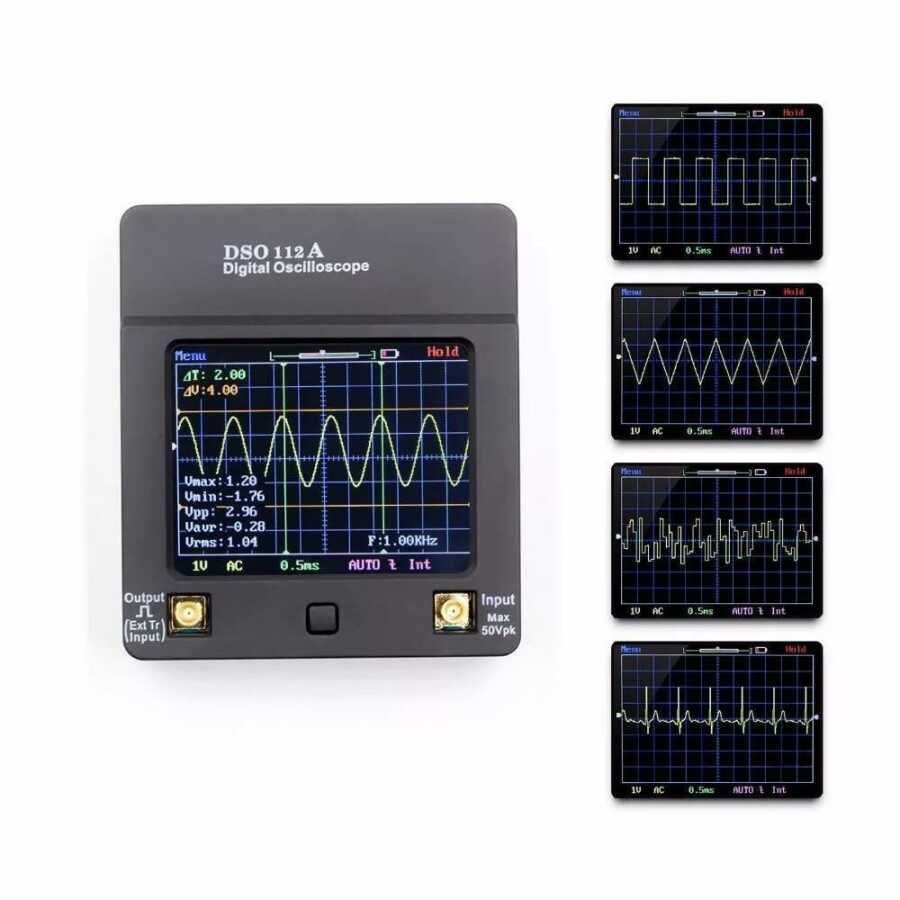

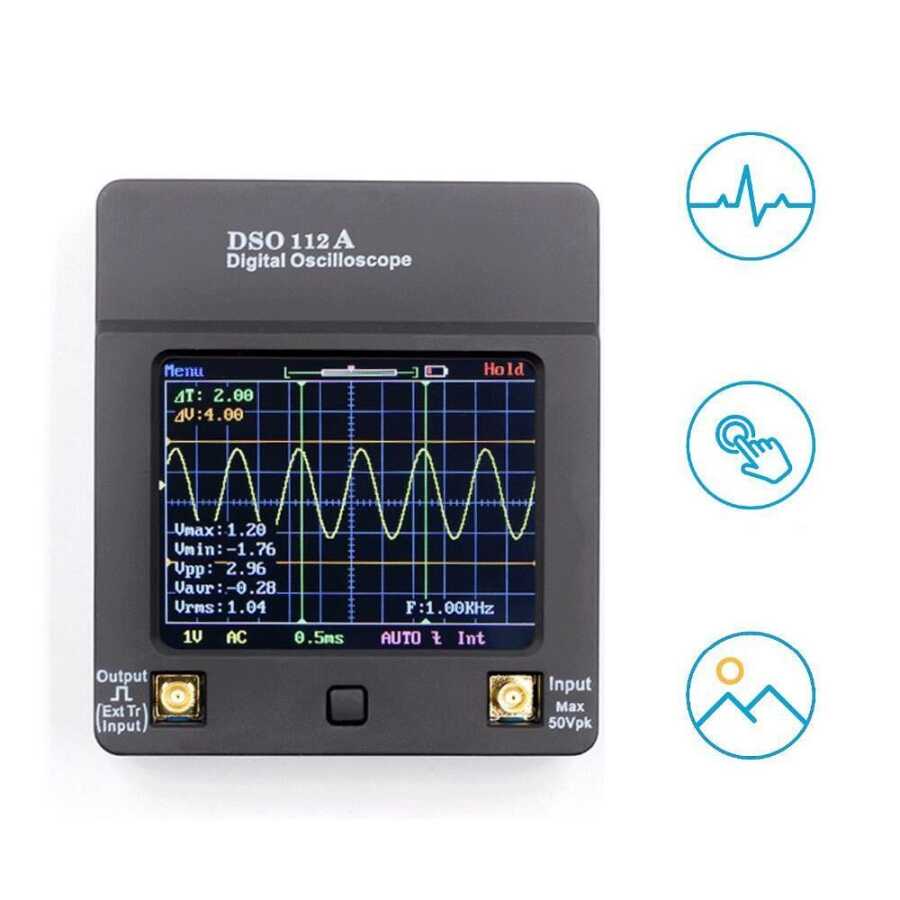

DSO112A TFT Touch Screen Oscilloscope 2MHz 5Ms/s



DSO112A is a pocket oscilloscope with color screen and touch panel. What makes the DSO112A distinctive among other oscilloscopes is its easy use with simple touch and swipe. Designed specifically for students and hobbyists, the DSO112A is a great entry-level oscilloscope in a size that fits perfectly in your hand and pocket. High sensitivity (2mV / Div), and low noise are the highlights of the DSO112A, making it a useful tool for small signal probing.



DSO112A Features :

• Pocket oscilloscope with color display and touch panel
• 2 MHz analog bandwidth and 5 Msps maximum real-time sampling rate
• Unique for completely continuous signal rolling slow signal display (SCAN mode causes the signal display to be cut off)
• Vertical sensitivity: 2mV/Div, with high sensitivity and low noise
• Save 24 groups of preset parameters, waveform save and recall conveniently
• Measurement frequency and Max./Min./Vpp/Avg. voltage values
• External trigger function adds stronger signal capture
• PC upload waveform data
• Freeze on waveform display at any time (HOLD function)
• Square wave test signal coming 1000Hz / 3.3V
• Firmware upgradeable via micro USB
• Battery / USB powered, built-in smart charger
• Analog frequency bandwidth: 0 - 2 MHz
• Max. real-time sampling rate: 5 Msps
• Vertical sensitivity: 2mV / Div-20V / Div, 12 graduated s (gradual 1-2-5)
• Horizontal time base range: 1μs / Div-50s / Div, 21 degrees (with progressive 1-2-5)
• Max. input voltage: 50Vpk (100Vpp)
• Max. record length: 512/1024 optional
• Input resistance: 1M ohm
• ADC precision: 8 bit
• Combining method: DC / AC
• Trigger type: Auto, normal, single
• Trigger edge: Rising / falling edge
• Trigger source: Internal / external
• External trigger voltage: 0 - 15 V
• Time cursors can automatically calculate and display the time difference
• Voltage cursors can automatically calculate and display the voltage difference
• Display: TFT color screen
• Power supply: 3.7 V, 1200 mAh Li-ion battery (included), USB Interface

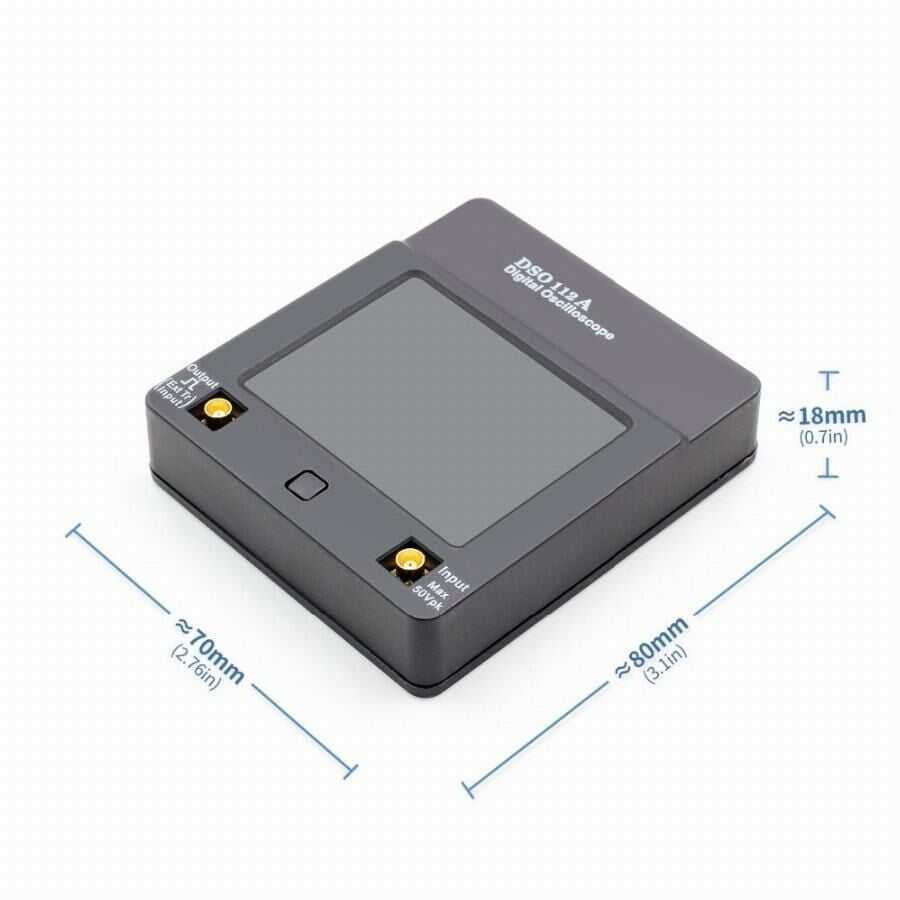

• Dimensions: 68 x 78 x 18 mm (2.7 x 3.1 x 0.7 in) )
• Weight: 85 grams (3.02 oz)
