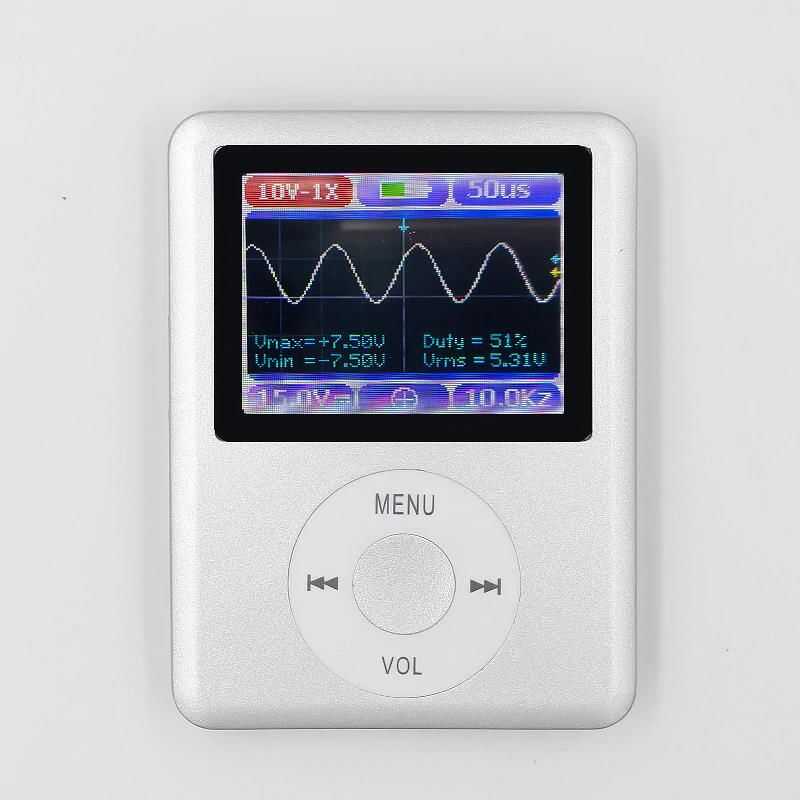

DSO168 Digital Oscilloscope 20MHz 50MS/s



FNIRSI-168 is a super small digital oscilloscope with a 50 MS/s sampling rate. This product with 20 MHz bandwidth is designed for electronic enthusiasts and circuit R&D maintenance personnel. 20 MHz bandwidth, an amplifier, oscillator, automatic control system, DC/DC, inverter, switching power supply, etc. Can be used for.



DSO 168 Features:

• Memory compression technology, waveform refresh screen does not flicker
• 1.8 inch color screen
• 20 MHz analog bandwidth and 50 MS/s sampling rate
• High measurement voltage range, 1X can measure 0 ~ 40 V, 10X 40 ~ 800 Can measure V
• Frequency can be displayed, Vmax, Vmin, Duty, Vrms, Vpp
• At any time, waveform display (pause function) frozen
• Battery / USB power supply, built-in 800 mAh battery and intelligent charging management
• Ultra-small volume, easy to carry
• Analog bandwidth: 20 MHz
• Maximum real-time sampling rate: 50 MS/s
• Vertical sensitivity: 50 mV / div ~ 200 V / div
• Horizontal time base range: 100 mS / div ~ 100 nS / div
• Maximum input voltage: 40 V (1X probe), 800 V (10X probe)
• Storage depth: 384 KB
• Input resistance: 1M
• ADC sensitivity: 8 bit
• Combining mode: AC / DC
• Trigger mode: Continuous
• Trigger edge: Rising / falling edge
• External trigger voltage 0 - 40 V
• Display : TFT color display
• Power supply: 800 mAh lithium battery
• Dimension: 73 x 55 x 10 mm (2, 87 x 2.17 x 0.39 inches)
• Weight: 50 grams
