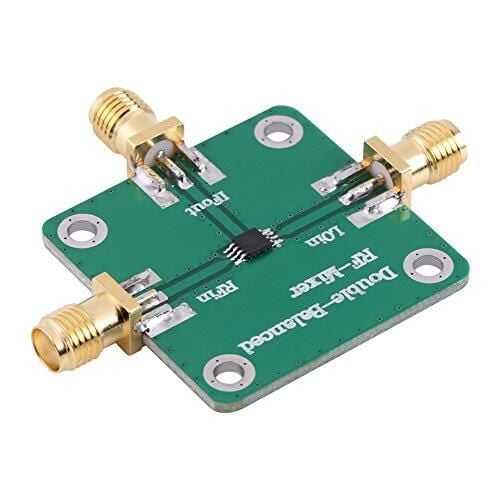

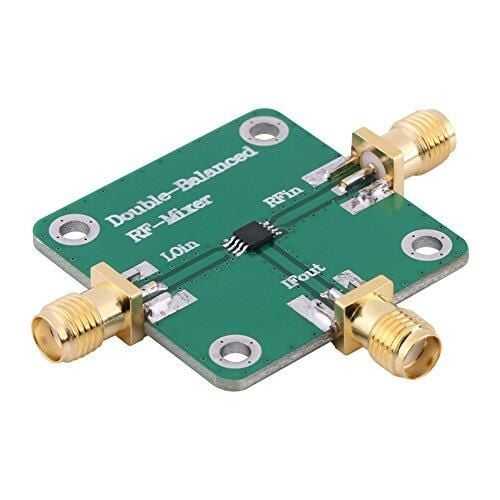

Double Balanced RF Mixer 1.5-4.5GHz DC-1.5GHz Microwave Radio Frequency
RFin=1.5--4.5GHz, RFout=DC--1.5GHz' lik is a double balanced radio frequency mixer. Both of its inputs are implemented in differential circuits, so that none of the input signals and only the multiplication signal appear at the output.
This mixer is at the RF and IF ends relative to the LO end. It has good isolation, so it doesn't require more about the IF filter. Standard SMA female connectors are suitable for connecting most devices.
Technical Specifications
Power Supply: Passive Mixer (No Power Supply Needed)
RF Input: 1.5--4.5ghz
Intermediate Frequency Output: Dc-1.5ghz
Conversion Loss: 8.5db
Noise Figure : 8.5db (ssb)
Local Oscillator Input: 13dbm
Port Isolation:
Local Oscillator - Rf: 40db (typical)
Local Oscillator to Intermediate Frequency: 35db (typical)
High Input 1p3: 18dbm
High Input P1db: 8dbm

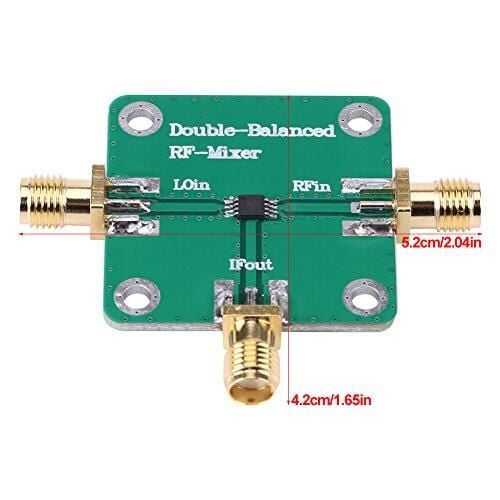

Dimensions: 33*33mm (excluding Connectors )
Connector Model: Standard Sma Female
