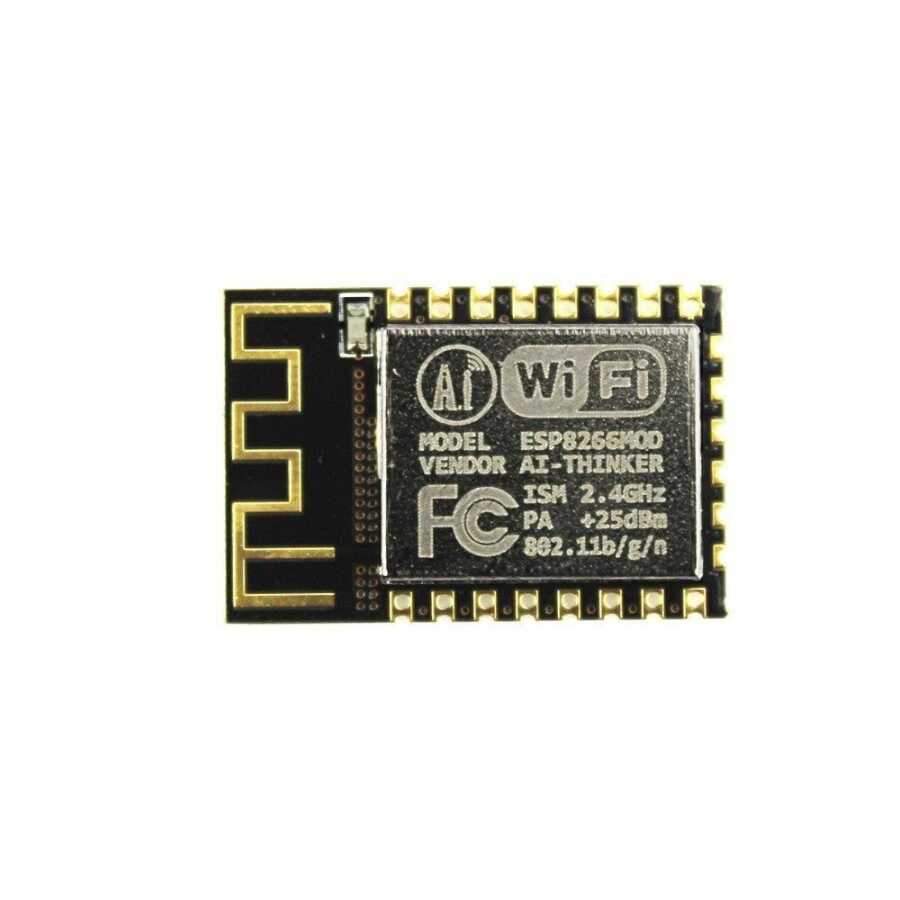

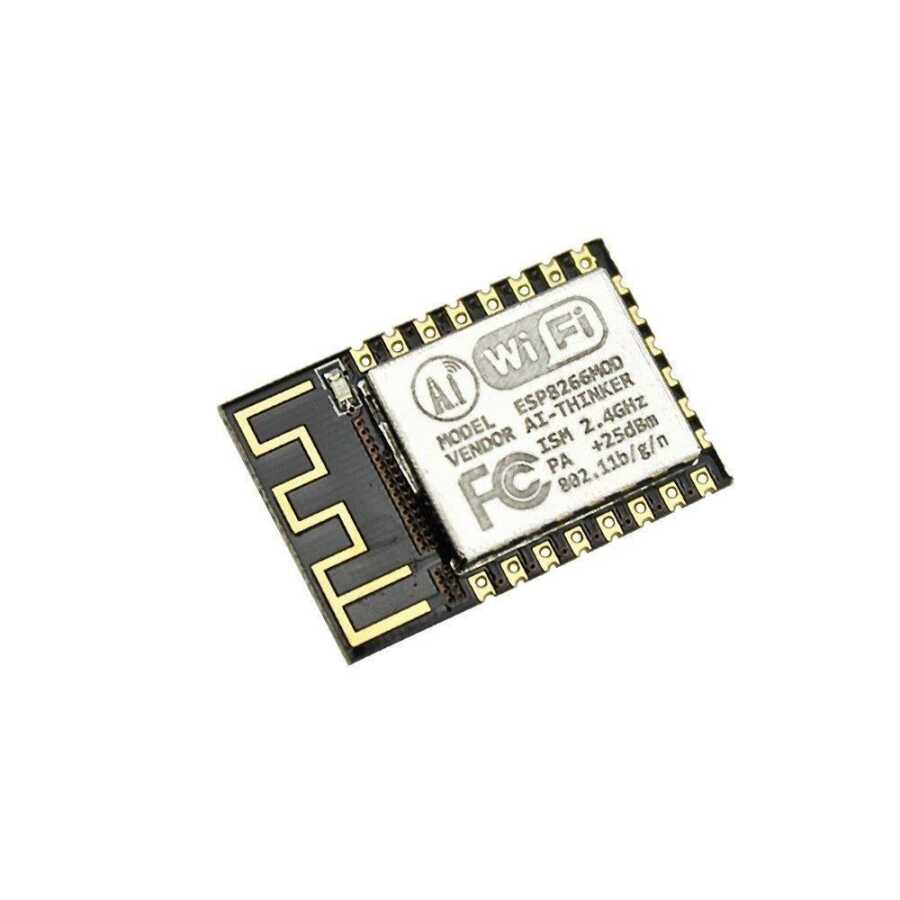

ESP-12F Wifi Module
The module has the ability to operate independently of a host controller. By implementing this module in your design, you can create the next Internet of Things - IOT you can build your project with affordable network connectivity.
ESP8266 has 3.6V maximum tolerance I/O, allowing you to connect it with higher voltage devices such as Arduino.
Features:
- ESP-12F AP+STA model
- 4MB Flash
- 3.0 ~ 3.6V (recommendation 3.3V)
- 80mA Rated operating current
- FCC / CE / TELEC Certifications
- 802.11 b/g/n
- 2.4GHz-2.5GHz (2400M-2483.5M), PCB monitoring antenna
- UART / HSPI / I2C / I2S / Ir Remote / GPIO / PWM

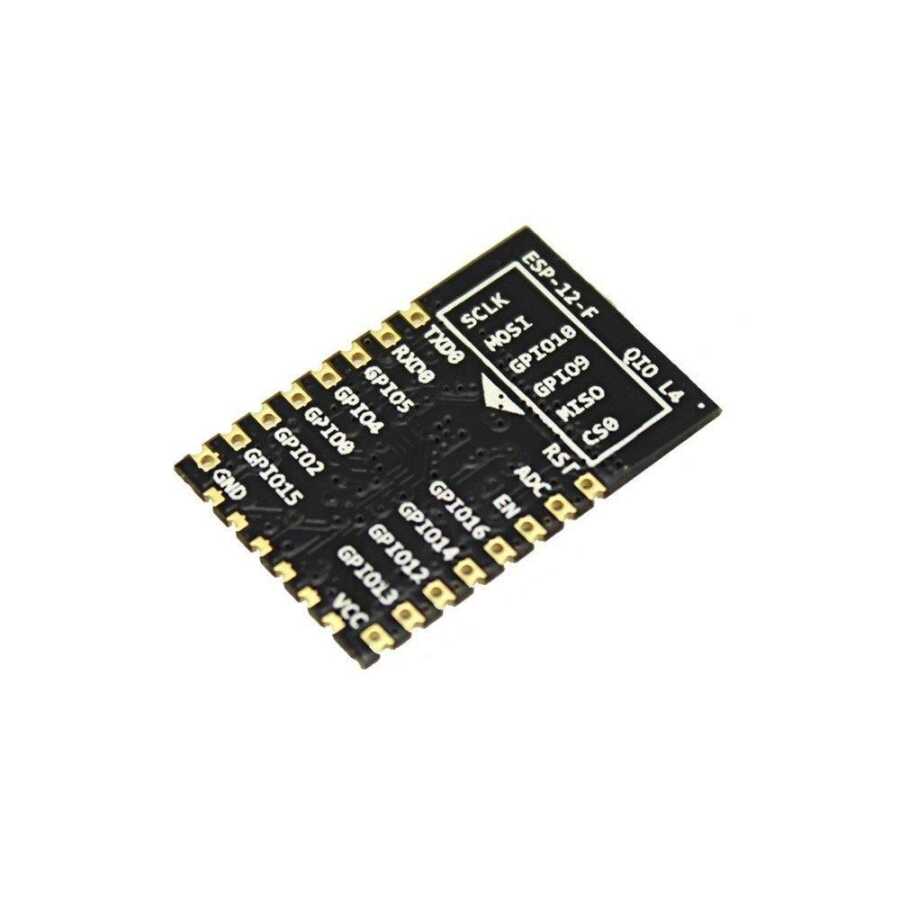

- 24 x 16mm PCB, 2x8 catellated connection
- Operating temperature: -40 ° C ~ 125 °C
