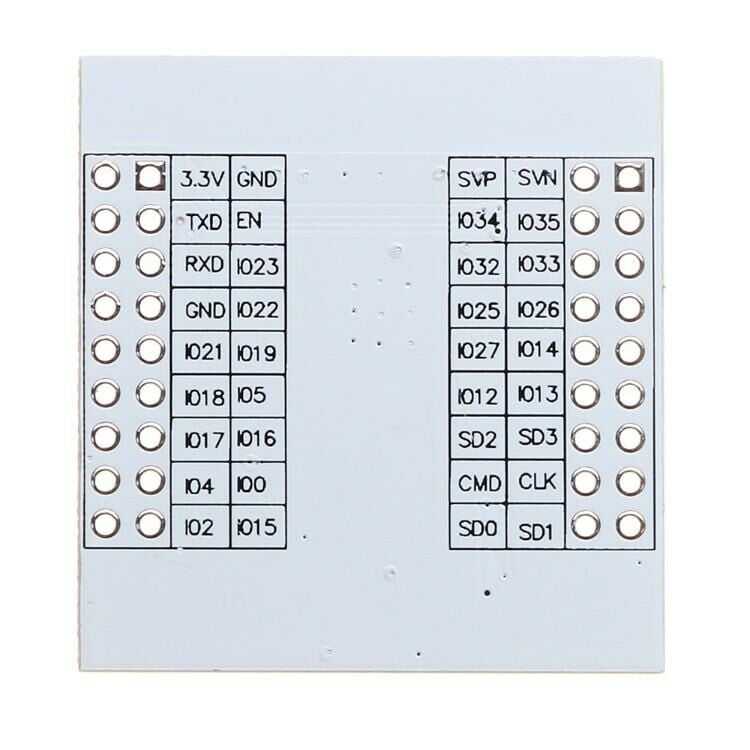

ESP-32S Wireless Module Adapter
For ESP-32, ESP-32S and ESP-WROOM-32, which enables fast and simple Wifi and Bluetooth connections, your wireless module It is the adapter card that you can connect. It can be attached to the breadboard with Dupont cable wire.

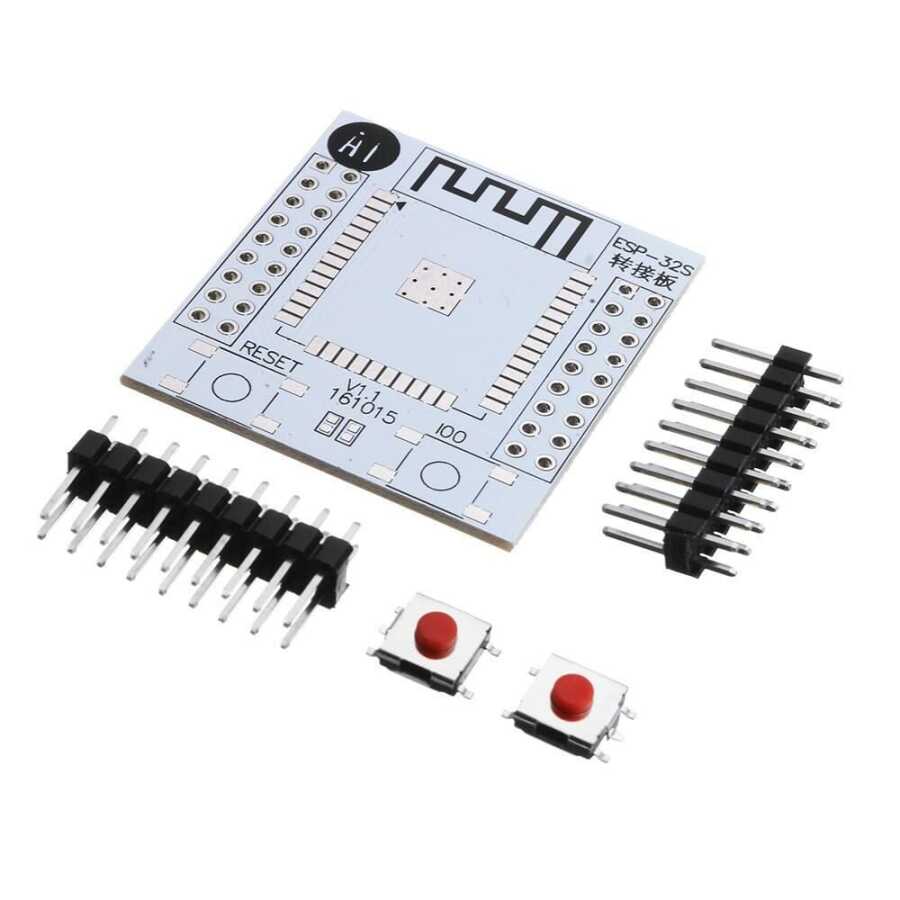

Adapter card for ESP-WROOM-32 / ESP-32 / ESP-32S Wifi / WLAN / Bluetooth Module, Shipped with 2 buttons and appropriate 2.54 mm pin.
Suitable for ESP-32F module. ESP-32F Adapter Board minimum system requires only 4 lines to connect to USB serial adapter, TXD must be connected to TX, TXD must be connected to RX. Note: You should connect a 4.7K-20K resistor 3.3V to the EN pin, 12K is recommended. After connecting the line and the default working mode, turn on the power, press the IO0 button to enter download mode, and press the RESET button to download after burning your code.
WiFi card ESP32 is not included.
