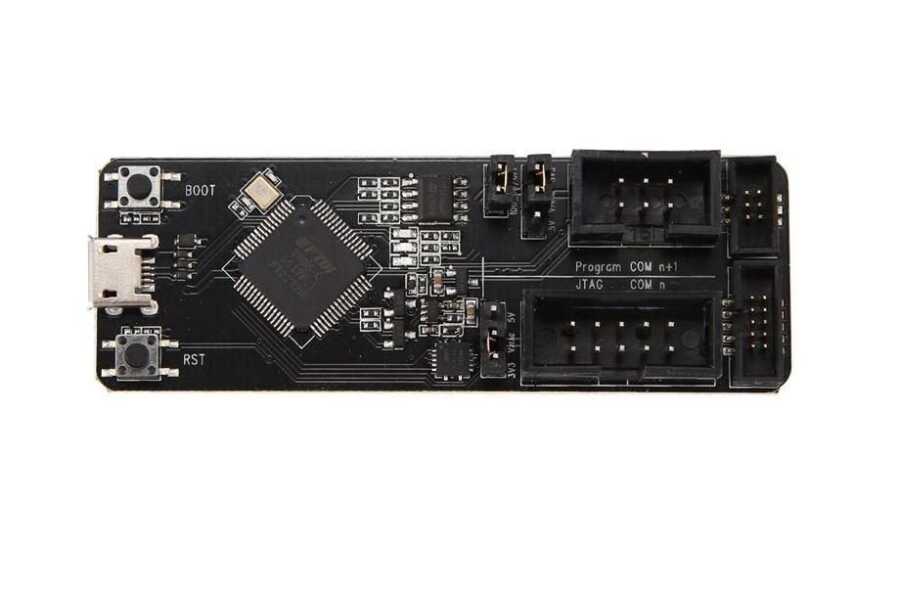

ESP-Prog Wifi Development Module - Compatible with ESP32

ESP-Prog is a device with automatic download firmware, serial communication, JTAG online debugging and other functions It is a development and debugging tool. Automatic download firmware and serial communication functions are available for the ESP8266 and ESP32 platforms, and the JTAG in-circuit debug function is available for the ESP32 platform.

ESP-Prog is easy to use and connects to a computer. It can be connected with just a single USB cable. The computer can recognize the download function and two ports corresponding to the JTAG function.

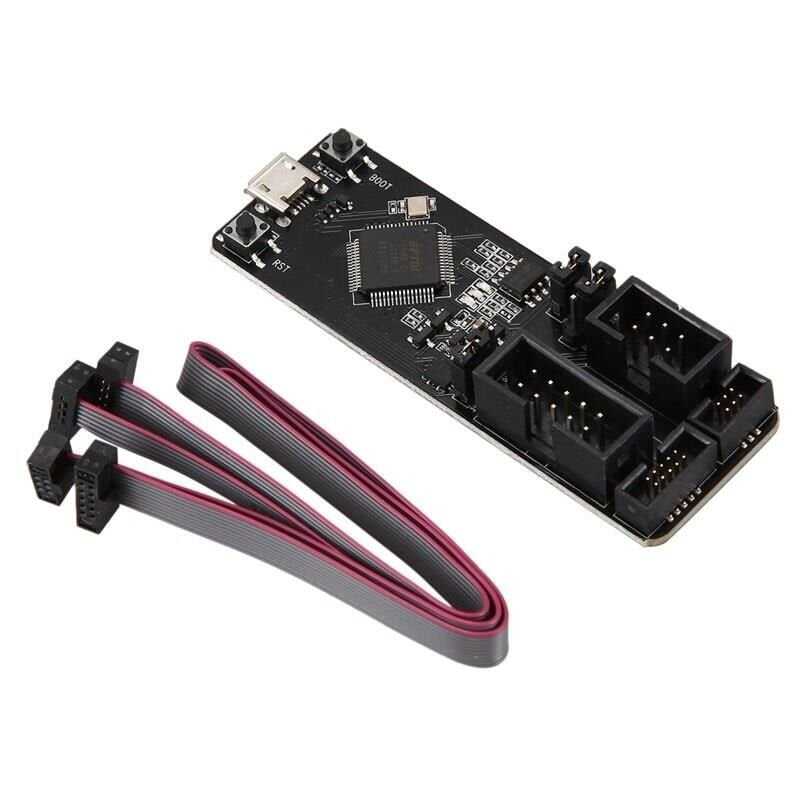

ESP-Prog can be connected to the user board using the cable. The connector is available in 2.54 mm and 1.27 mm pitch packages with seamless design. The user card needs to insert the Program (6-Pin) and JTAG (10-Pin) connectors in the corresponding row.

Considering that the power supply voltage of different user cards may be different, ESP-Prog' The two interfaces can choose 5V or 3.3V power supply through Pin Header with strong power compatibility.



1. Connect the ESP-Prog debug board and the USB port on the computer with a USB cable.

2. Install the FT2232HL chip driver on the computer side. The computer recognizes the two ports, indicating that the driver has been successfully installed.

3. Use the Pin header to select the power supply output voltage in the Program / JTAG interface.

4. Connect the debug board and ESP product board with the gray cable.

5. Automatic downloading of the ESP32 product board and JTAG debugging can be performed using official software tools or scripts.
